Help CenterRotary Table Bearings With Steel Measuring Heidenhain System YRTM180
Related Products
-
Rotary Table Bearings With Steel Measuring Heidenhain System YRTM200NegotiableMOQ: 1 Piece -
Rotary Table Bearings With Steel Measuring Heidenhain System YRTM260NegotiableMOQ: 1 Piece
-
Rotary Table Bearings With Steel Measuring Heidenhain System YRTM325NegotiableMOQ: 1 Piece
-
Rotary Table Bearings With Steel Measuring Heidenhain System YRTM395NegotiableMOQ: 1 Piece
-
Rotary Table Bearings With Steel Measuring Heidenhain System YRTM460NegotiableMOQ: 1 Piece
The measurement of angular displacement is very important in modern industry. Especially in machine tool industry, the rotation angle of mechanical parts was often highly demand. This needs to accurately measure and control the angular displacement.
At present, grating encoder, magnetic gate encoder was commonly used when measuring the angular displacement. But Austria AMOSIN steel grade measurement system we choose has four significant advantages of high precision (The highest resolution angle
The YRT rotary table bearing with this measurement system, have very high precision, can bear double-direction axial load, radial load and tilting moment. That is very suitable for the high precision demand field, such as high precision rotary table in machine tools industry, dividing head and scientific experiment and measurement and so on.
*X* Real-time output signals, is the ideal solution for driven directly.
Structure introduction :

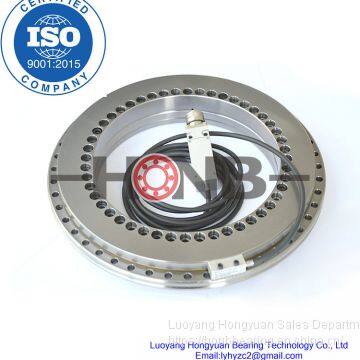

The Austria AMOSIN steel grade measurement system including three parts:steel grade feet, reading-head and electronic assessment. The steel grade feet was installed on the inner ring of the bearing（figure 2), it is a steel ring with grids uniform distribution on. The reading-head was installed on the outer ring of the bearing (figure 1), it is near the steel grade feet, but not touch; there is a 0.1--0.2mm clearance between them.
When Working, the bearing rotary, the steel grade feet and the reading- head (figure 3) do non-contact relative motion, then turn the data which was collected by induction to the electronic evaluation (figure 6) through the cable (figure 5). The electronic evaluation then transfers the information to square wave or Positive harmonic signal. These signals were put into the numerical control system In the machine tools, to realize the measuring and control to the angular displacement.
