Introduction:

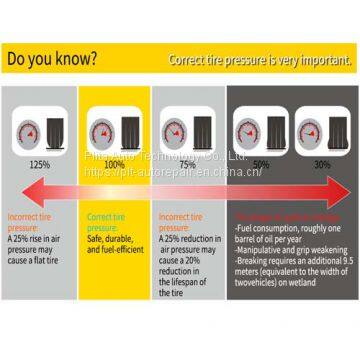

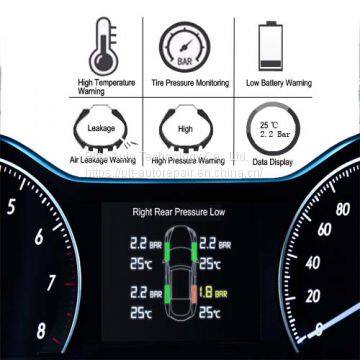

Tire pressure monitoring system (TPMS) is a safety system used to measure data such as internal tire pressure and temperature. Wireless transmission technology is adopted to transmit the data directly to the dashboard in the car, and the state of vehicle's tires is clearly displayed in digital form. When tire pressure is abnormal, the system will use an indicator light, alarm or voice to remind the driver to check or replace the tire, thereby helping reduce automobile accidents.
It is our self-developed TPMS tool which can read data from most original and third-party sensors. It can also upgrade the Pro-Sensor wirelessly, and the upgraded sensor can replace the original sensor. The product is simple in operation and friendly in interface, and includes the TPMS Re-learning Operation Guide. It is widely used in garages and tire shops.
Features:
Activation of various types of sensors and visual display of tire temperature, pressure, power and other information
Multilingual support and switching to suit your needs
Multiple ID generation modes: Manual copy, auto copy, and auto generation
USB upgrade services for extended support of more updated models
A variety of special functions to meet individual customer needs
Multi-sensor programming: Meets the customer's heavy demand for a certain car sensor within a short period of time, significantly improving work efficiency
Vehicle programming: Four tire sensors can be programmed at once, simplifying operations
Sensor reading: Sensor information can be read quickly and accurately
ID modification: The ID can be quickly modified without the need for reprogramming
Modification of sensor location: Tools to help modify sensor location on tires, eradicating the hassle of re-disassembly
Specifications:
Display：TFT 2.8 inch (320 x 240 dpi)
Battery：3.7V 3000mAh Li-polymer
Operating temperature：0 to 50°C (32 to 122 °F)
Storage temperature：-20 to 70°C (-4 to 158 °F)
Dimensions：224.7mm(8.85")94.5mm(3.72")58.8mm(2.31")
Weight：0.29kg (0.64lb)

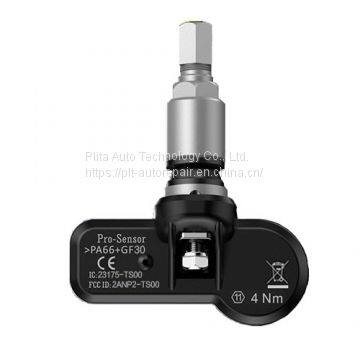

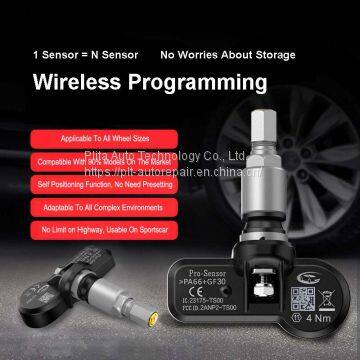

- Programmable Sensor
Programmable-Sensor is a general-purpose tire pressure sensor developed by our company to match and replace original vehicle sensors. We use Freescale’s chips and automotive components, introduce advanced production technology, and follow a strict quality-control system with high precision, stability, and reliability. Wireless configuration and activation makes it the perfect replacement for original sensors.
Features:
The original sensor can be replaced directly by copying the ID, so the vehicle does not need to relearn a new ID.
An adjustable installation angle ensures applicability to even more wheel hubs.
Adaptable to a variety of complex environments, such as high speed, high and low temperatures, moisture, acid and alkali, salt fog, etc.
Compatible with most models on the market, saving inventory costs and avoiding the trouble caused by the lack of original parts.
Supports our company's special tools for quick modification of the ID.
Specifications:
Operating temperature：-40℃---+105℃
Storage temperature：-40℃---+125℃
Operating humidity：
Frequency：433.92MHz&315MHz
Pressure monitoring range：0---800kpa
Pressure accuracy：±10kpa
Temperature accuracy：±3℃
Power Level：8dBm
Dimensions：approx. 71.3 mm *57mm x*21.3 mm
Weight(without valve stem)：16.5g
