We provide the full range service including design, manufacturing, installation. We design and manufacture equipment for new type dry method cement production line, for which the capacity varies from 50t/d to 3000t/d
PRODUCTION TECHNOLOGYMined limestone is delivered to the crusher for crushing by the belt conveyor, limestone after crushing ,clay, iron powder etc will be ground into powder by ball mill or vertical mill, and then transported by air delivery chute to raw meal homogenization silo for storing and further material mix. Raw meal shall get into the preheating decomposition system after homogenization where decomposition rate is about 95%, and raw meal is calcined into clinker in the rotary kiln, the formation of clinker. Clinker, gypsum and mixture is ground into qualified fineness cement in the cement mill. Powder classifier is adopted to adjust the fineness of cement, realizing energy saving production. Cement packing machine and automatic loading machine are used for bagged cement delivery, and cement bulk device for cement canning leaving factory.

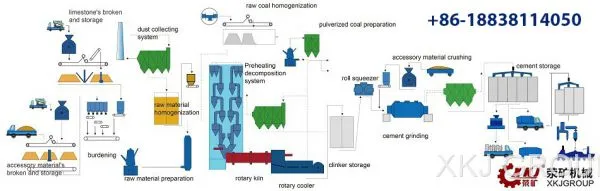

Flow Sheet
Dry process cement production line （25-200t/d）Configuration
Capcity |
25t/d |
50 t/d |
100 t/d |
150 t/d |
200 t/d |
|
Rotary kiln |
Specification |
Φ1.4×33m |
Φ1.6/1.9×36m |
Φ2.2×45m |
Φ2.5×50m |
Φ3×60m |
Capacity |
1t/h |
2t/h |
4t/h |
6t/h |
8t/h |
|
|
Calcination Temperature (℃) |
1450 |
1450 |
1450 |
1450 |
1450 |
|
Raw mill |
Specification |
Φ1.2×4.5m Open circuit |
Φ1.5×5.7m Open circuit |
Φ1.83×6.1m Open circuit |
Φ1.83×6.1m Closed circuit |
Φ2.2×6.5m Closed circuit |
Capacity |
1.7t/h |
4.5t/h |
9t/h |
12t/h |
16t/h |
|
Motor power |
55kW |
130kW |
210kW |
210kW |
310kW |
|
Cement mill |
Specification |
Φ1.2×4.5m Open circuit |
Φ1.5×5.7m Open circuit |
Φ1.83×6.1m Open circuit |
Φ1.83×6.1m Closed circuit |
Φ2.2×6.5m Closed circuit |
Capacity |
1.4t/h |
3.5t/h |
6.5t/h |
8t/h |
12t/h |
|
Motor power |
55kW |
130kW |
210kW |
210kW |
310kW |
|
New dry process cement production line (300-1500t/d) configuration
Capacity |
300t/d |
700 t/d |
1000 t/d |
1500 t/d |
|
Pre-heater |
C1 |
2-Φ2500 |
Φ3500 |
Φ4800 |
2-Φ4000 |
C2 |
Φ3600 |
Φ4800 |
Φ4800 |
Φ5800 |
|
C3 |
Φ3600 |
2-Φ3700 |
Φ5200 |
Φ5800 |
|
C4 |
Φ3600 |
Φ4800 |
Φ5200 |
Φ6200 |
|
C5 |
Φ3600 |
Φ4800 |
Φ5200 |
Φ6200 |
|
Pre-calciner |
Specification |
Φ2200 |
Φ2800 |
Φ4800 |
Φ5200 |
Rotary kiln |
Specification |
Φ2.8×44m |
Φ3×48m |
Φ3.2×50m |
Φ3.5×54m |
Capacity |
12.5t/h |
30t/h |
42t/h |
63t/h |
|
Calcination temperature (℃) |
1450 |
1450 |
1450 |
1450 |
|
Raw mill |
Specification |
Vertical roller mill Φ1700 |
Dry mill Φ3.2×7+1.8m |
Dry mill Φ3.5×10m |
HRM2800 Vertical roller mill |
Capacity |
30t/h |
50t/h |
85t/h |
130~160t/h |
|
Motor power |
400kW |
1000kW |
1250kW |
1250kW |
|
Cement mill |
Specification |
Φ2.4×13m Open circuit |
Φ3×11m Closed circuit |
Φ3.2×11m Closed circuit |
Φ4.2×13.5m Closed circuit |
Capacity |
22t/h |
42t/h |
64t/h |
95t/h |
|
Motor power |
800kW |
1250kW |
1400kW |
3550kW |
|
