Single Drum Vibratory Rollers

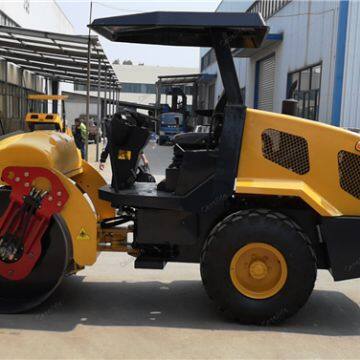

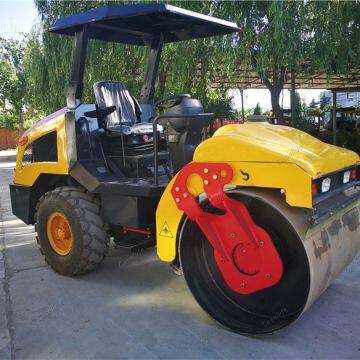

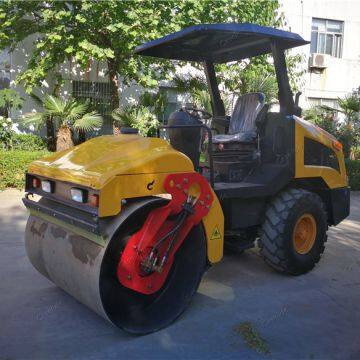

This product is clamp - type hydraulic vibratory roller, it has narrow size in equal series. It is mainly used for compacting various construction materials such as non - cohesive soil, sandy soil, graves, macadam aggregate mixtures. Especially suitable for compact community road, village highway, underground garage, playground and all kinds of groove earthwork backfill.
MAIN FEATURES
1. Hydraulic vibrating and steering, rear drive. Adopts Changchai 4 cylinder water - cooling diesel engine, excellent power output.
2. clamp - type front frame can work to edge and corner, suitable for narrow groove.
3. Adopts shaft transmission is more efficiently. It has high speed mode, save time and tow truck to change work place.
4.Adopts fiberglass water tank, convenient for humidification. Change smooth tread tire can work to asphalt road surface
MAIN PERFORMANCE PARAMETRES
| MODEL | KYL - Z1300C |
| Operating Mass | 4000kg |
| Exciting Force | 68 kn |
| Vibration Frequency | 45Hz |
| Drum Width/Diameter | 1300/1000mm |
| Static Linear Load(Front) | 110N/cm |
| Travel Speed | 2/5/8/11 km/h |
| Gradeability | 30% |
| Minimum turning radius | 4700 mm |
| Wheelbase | 2110mm |
| Min. ground clearance | 220mm |
| Battery Voltage | 12V |
| Diesel/ Hydraulic tank capacity | 74/74L |
| Diesel Model | ZN490 |
| Diesel Power | 34/36kw |
| Dimension(L×W×H) | 4000x1420x2520mm |
