Axial radial roller bearings ZARF2575-L-TN/ZARF2575--L/Needle roller bearing

Name: Axial radial roller bearings ZARF2575-L-TN/ZARF2575--L/Needle roller bearing
Brand: HONB
Availability: InStock

FOB Price

US$ 1 - 1000 / Piece

1 Piece(Min. Order)

Port Shanghai/Qingdao
Payment TermsT/T D/P D/A Credit Card PayPal Other Cash Escrow
Delivery Detail10 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HONB	Place of Origin	China
Model Number	ZARF2575-L-TN/ZARF2575--L	Number of Row	Other
Seals Type	No seals	Precision Rating	P5
Outside Diameter	75, 75	Bore Size	25, 25

Product Description

Needle roller/axial cylindrical roller bearings are double direction precision axial cylindrical roller bearings with a radial bearing component. The inner ring, outer ring and cylindrical roller and cage assemblies are matched to each other such that the bearings can be set to a defined axial preload using a precision locknut. The bearings are available with and without fixing holes in the outer ring. Bearings with holes are screw mounted directly on the adjacent construction. The large contact surface and the small pitch of the holes allows a connection to the adjacent construction that is extremely rigid and with low tendency to settling. The bearing cover that would otherwise be required to hold the bearing, and the matching work required, can therefore be dispensed with. HONBbearing05

Needle roller/axial cylindrical roller bearings are also available with a stepped, extended shaft locating washer on one side. These bearings are used where the axial support of the shaft locating washer is insufficient or a seal raceway is required.

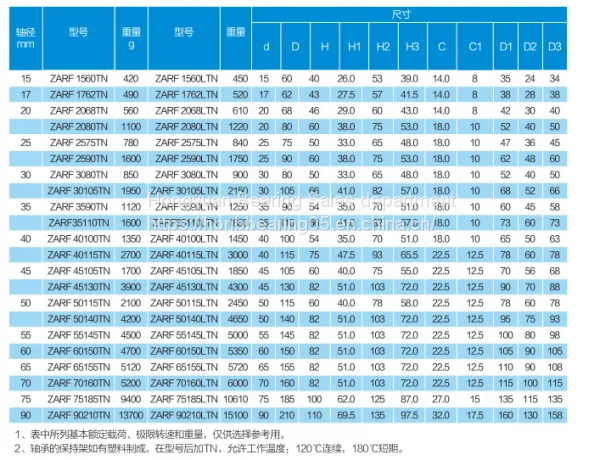

Shaft diameter	Model	Mass （g）	Model	Massg	Measure
					d	D	H	H1	H2	H3	C	C1	D1	D2	D3	B	B1	B2	r	r1	d1	J
					d	D	H	H1	H2	H3	C	C1	D1	D2	D3	B	B1	B2	r	r1	d1	J
15	ZARF 1560TN	420	ZARF 1560LTN	450	15	60	40	26.0	53	39.0	14.0	8	35	24	34	7.5	20.5	11	0.3	0.6	3.2	46.0
17	ZARF 1762TN	490	ZARF 1762LTN	520	17	62	43	27.5	57	41.5	14.0	8	38	28	38	9.0	23.0	11	0.3	0.6	3.2	48.0
20	ZARF 2068TN	560	ZARF 2068LTN	610	20	68	46	29.0	60	43.0	14.0	8	42	30	40	10.0	24.0	11	0.3	0.6	3.2	53.0
	ZARF 2080TN	1100	ZARF 2080LTN	1220	20	80	60	38.0	75	53.0	18.0	10	52	40	50	12.5	27.5	11	0.3	0.6	3.2	63.0
25	ZARF 2575TN	780	ZARF 2575LTN	840	25	75	50	33.0	65	48.0	18.0	10	47	36	45	10.0	25.0	11	0.3	0.6	3.2	58.0
	ZARF 2590TN	1600	ZARF 2590LTN	1750	25	90	60	38.0	75	53.0	18.0	10	62	48	60	12.5	27.5	11	0.3	0.6	3.2	73.0
30	ZARF 3080TN	850	ZARF 3080LTN	900	30	80	50	33.0	65	48.0	18.0	10	52	40	50	10.0	25.0	11	0.3	0.6	3.2	63.0
	ZARF 30105TN	1950	ZARF 30105LTN	2150	30	105	66	41.0	82	57.0	18.0	10	68	52	66	14.0	30.0	12	0.3	0.6	3.2	85.0
35	ZARF 3590TN	1120	ZARF 3590LTN	1250	35	90	54	35.0	70	51.0	18.0	10	60	45	58	11.0	27.0	12	0.3	0.6	3.2	73.0
	ZARF 35110TN	1600	ZARF 35110LTN	1850	35	110	66	41.0	82	57.0	18.0	10	73	60	73	14.0	30.0	12	0.3	0.6	3.2	88.0
40	ZARF 40100TN	1350	ZARF 40100LTN	1450	40	100	54	34.0	70	51.0	18.0	10	65	50	63	11.0	27.0	12	0.3	0.6	3.2	80.0
	ZARF 40115TN	2700	ZARF 40115LTN	3000	40	115	75	47.5	93	65.5	22.5	12.5	78	60	78	16.0	34.0	12	0.3	0.6	6.0	94.0
45	ZARF 45105TN	1700	ZARF 45105LTN	1850	45	105	60	40.0	75	55.0	22.5	12.5	70	56	68	11.5	26.5	12	0.3	0.6	6.0	85.0
	ZARF 45130TN	3900	ZARF 45130LTN	4300	45	130	82	51.0	103	42.0	22.5	12.5	90	70	88	17.5	38.5	14	0.3	0.6	6.0	105.0
50	ZARF 50115TN	2100	ZARF 50115LTN	2450	50	115	60	40.0	78	58.0	22.5	12.5	78	60	78	11.5	29.5	12	0.3	0.6	6.0	94.0
	ZARF 50140TN	4200	ZARF 50140LTN	4650	50	140	82	51.0	103	72.0	22.5	12.5	95	75	93	17.5	38.5	14	0.3	0.6	6.0	113.0
55	ZARF 55145TN	4500	ZARF 55145LTN	5000	55	145	82	51.0	103	72.0	22.5	12.5	100	80	98	17.5	38.5	14	0.3	0.6	6.0	118.0
60	ZARF 60150TN	4700	ZARF 60150LTN	5350	60	150	82	51.0	103	72.0	22.5	12.5	105	90	105	17.5	38.5	16	0.3	0.6	6.0	123.0
65	ZARF 65155TN	5120	ZARF 65155LTN	5720	65	155	82	51.0	103	72.0	22.5	12.5	110	90	108	17.5	38.5	16	0.3	0.6	6.0	128.0
70	ZARF 70160TN	5200	ZARF 70160LTN	6000	70	160	82	51.0	103	72.0	22.5	12.5	115	100	115	17.5	38.5	16	0.3	0.6	6.0	133.0
75	ZARF 75185TN	9400	ZARF 75185LTN	10610	75	185	100	62.0	125	87.0	27.0	15.0	135	115	135	21.0	46.0	16	0.3	1.0	6.0	155.0
90	ZARF 90210TN	13700	ZARF 90210LTN	15100	90	210	110	69.5	135	97.5	32.0	17.5	160	130	158	22.5	47.5	16	0.3	1.0	8.0	180.0

Basic load rating				limiting speed		Fixing bolt		Tightening torque Nm	Friction torque Nm	Measure							Basic load rating				limiting speed		Fixing bolt		Tightening torque Nm	Friction torque Nm
Radial		Axial		Oilrpm	Greaserpm	Specification	QTY			B	B1	B2	r	r1	d1	J	Radial		Axial		Oil rpm	Grease rpm	Specification	QTY
Cr KN	Cor KN	Cr KN	Cor KN	Oilrpm	Greaserpm	Specification	QTY			B	B1	B2	r	r1	d1	J	cr KN	cor KN	cr KN	cor KN	Oil rpm	Grease rpm	Specification	QTY
13.0	17.5	24.9	53.0	8500	2200	M6	6	10	0.35	7.5	20.5	11	0.3	0.6	3.2	46	13	17.5	24.9	53	8500	2200	M6	6	10	0.35
14.0	19.9	26.0	57.0	7800	2100	M6	6	12	0.4	9	23	11	0.3	0.6	3.2	48	14	19.9	26	57	7800	2100	M6	6	12	0.4
14.1	20.6	27.4	77.0	7000	2000	M6	8	18	0.5	10	24	11	0.3	0.6	3.2	53	14.1	20.6	27.4	77	7000	2000	M6	8	18	0.5
22.6	36.0	64.0	88.0	6000	1500	M6	8	38	1.3	12.5	27.5	11	0.3	0.6	3.2	63	22.6	36	64	88	6000	1500	M6	8	38	1.3
24.8	39.8	30.5	93.5	6000	1900	M6	8	25	0.55	10	25	11	0.3	0.6	3.2	58	24.8	39.8	30.5	93.5	6000	1900	M6	8	25	0.55
24.8	41.4	80.0	199.0	4900	1400	M6	8	55	1.6	12.5	27.5	11	0.3	0.6	3.2	73	24.8	41.4	80	199	4900	1400	M5	8	55	1.6
24.3	41.0	33.9	110.0	5500	1800	M6	12	32	0.65	10	25	11	0.3	0.6	3.2	63	24.3	41	33.9	110	5500	1800	M6	12	32	0.65
25.9	45.8	75.7	221.0	4400	1300	M6	12	75	2.1	14	30	12	0.3	0.6	3.2	85	25.9	45.8	75.7	221	4400	1300	M6	12	75	2.1
26.0	47.0	45.9	105.4	4800	1700	M6	12	42	0.9	11	27	12	0.3	0.6	3.2	73	26	47	45.9	105.4	4800	1700	M6	12	42	0.9
28.0	52.7	78.2	237.6	4000	1250	M6	12	100	2.3	14	30	12	0.3	0.6	3.2	88	28	52.7	78.2	237.6	4000	1250	M6	12	100	2.3
30.4	58.6	51.7	180.1	4400	1600	M8	8	55	1	11	27	12	0.3	0.6	3.2	80	30.4	58.6	51.7	180.1	4400	1600	M8	8	55	1
40.9	72.5	84.2	269.2	3700	1200	M8	12	120	2.5	16	34	12	0.3	0.6	6	94	40.9	72.5	84.2	269.2	3700	1200	M8	12	120	2.5
38.0	74.0	81.0	177.0	4000	1500	M8	8	65	1.2	11.5	26.5	12	0.3	0.6	6	85	38	74	81	177	4000	1500	M8	8	65	1.2
42.5	78.8	115.9	363.0	3300	1150	M8	12	150	3.5	17.5	38.5	14	0.3	0.6	6	105	42.5	78.8	115.9	363	3300	1150	M8	12	150	3.5
42.6	78.8	44.2	158.4	3600	1200	M8	12	85	2.2	11.5	29.5	12	0.3	0.6	6	94	42.6	78.8	44.2	158.4	3600	1200	M8	12	85	2.2
45.5	88.1	119.3	387.2	3100	1100	M8	12	180	3.8	17.5	38.5	14	0.3	0.6	6	113	45.5	88.1	119.3	387.2	3100	1100	MB	12	180	3.8
49.0	109.9	126.0	369.0	2900	1000	M8	12	220	4	17.5	38.5	14	0.3	0.6	6	118	49	109.9	126	369	2900	1000	MB	12	220	4
54.9	118.6	141.0	505.0	2700	950	M8	12	250	4.2	17.5	38.5	16	0.3	0.6	6	123	54.9	118.6	141	505	2700	960	MB	12	250	4.2
54.2	100.8	126.2	441.4	2600	900	M10	12	270	4	17.5	38.5	16	0.3	0.6	6	128	54.2	100.8	126.2	441.4	2600	900	M10	12	270	4
69.6	143.5	143.0	532.0	2400	800	M10	12	330	4.8	17.5	38.5	16	0.3	0.6	6	133	69.6	143.5	143	532	2400	800	M10	12	330	4.8
95.0	193.0	233.0	769.0	2100	700	M12	12	580	8	21	46	16	0.3	1	6	155	95	193	233	769	2100	700	M12	12	580	8
101.0	225.6	320.0	1172.0	1800	700	M12	16	960	10.5	22.5	47.5	16	0.3	1	8	180	101	225.6	320	1172	1800	700	M12	16	960	10.5
