High Consistency Refiner Machine for Chemical Paper Pulp Equipment / Cotton Stalk

High Consistency Refiner Machine for Chemical Paper Pulp Equipment / Cotton Stalk photo-1

High Consistency Refiner Machine for Chemical Paper Pulp Equipment / Cotton Stalk photo-2

US$ 7000 - 30000 MOQ: 1 Set

Key Specifications

Get Latest Price

Warranty:

One Year

Contact Supplier Request Quote Chat Now

Shandong Fangyuan Zhonghe Machinery Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Warranty One Year

Product Description

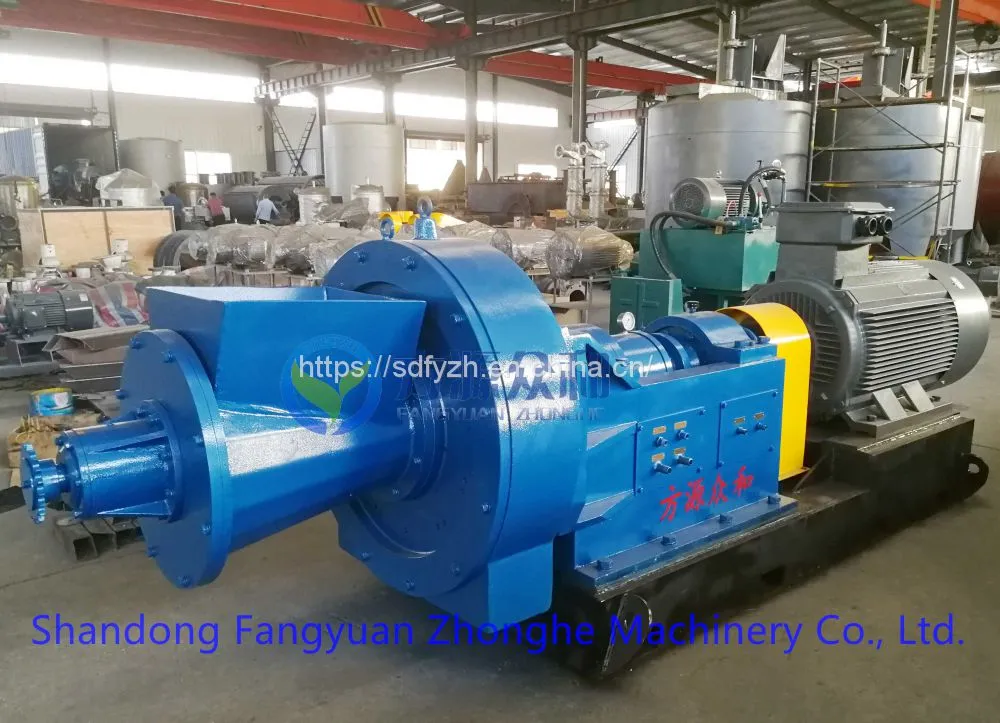

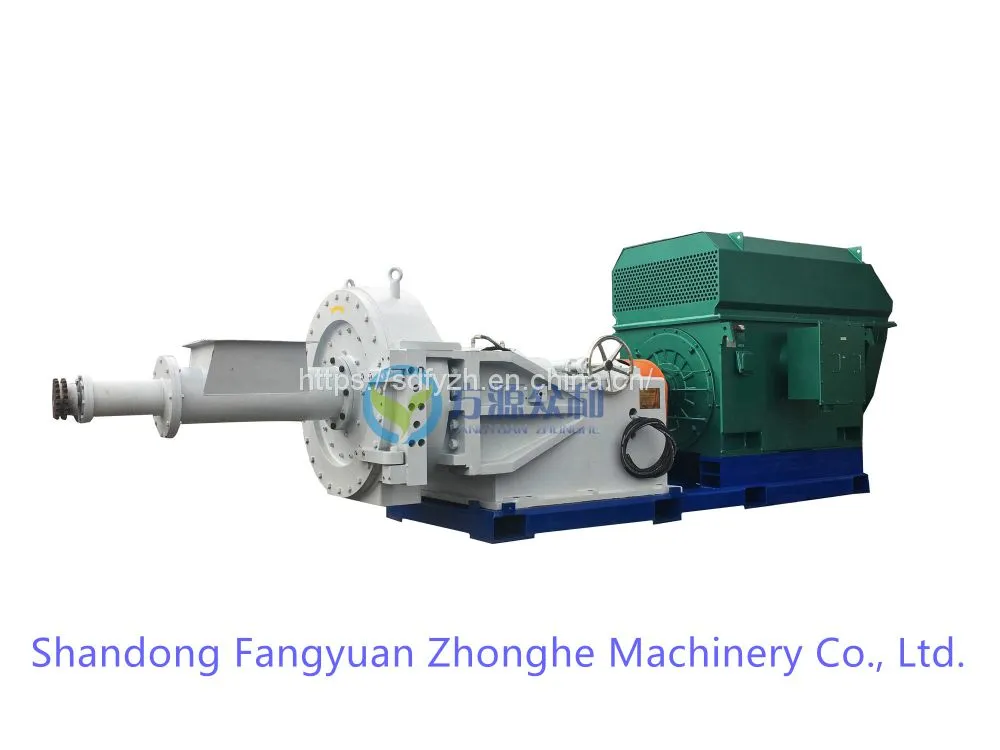

FGYM HIGH CONSISTENCY HYDRAULIC REFINER

High consistency hydraulic refiner is suitable for grinding chemical pulp, semi-chemical mechanical pulp, high yield pulp and fiberboard material by cold immersion method. The forced feeding system can be used for grinding chemical pulp, semi-chemical mechanical pulp, cold immersion pulp and fiberboard material. Whether the pulp with complex tree species and large differences in wood properties, or the remaining corner material after wood processing, particles, pulp residue and cold immersion reed, rice straw, cotton stalk, etc., with its The disc gap is separated into high quality fibers. Particularly suitable for non-polluting machinery of rice straw, cotton stalk and other raw materials, semi-chemical mechanical pulping, also can be used for high concentration beating of other pulps.

Model	FGYM-350	FGYM-600	FGYM-750	FGYM-800	FGYM-915	FGYM-1100	FGYM-1320
Diameter of grinding disc	φ350mm	φ600	φ750	φ800	φ915	φ1100	φ1320
Main engine speed	rpm 1480	rpm 1480	rpm 1480	rpm 1480	rpm 1480	rpm 1480	rpm 960-1480
Motor voltage	380V	380V	380V	380V	10KV	10KV	10KV
Motor power	kw ll-37	75-160 kw	kw 220-355	kw 315-450	kw 400-710	kw 560-1250	kw 1400-4000
Productive capacity	t/d	t/d	t/d	t/d	t/d	t/d	t/d
Chemical wood pulp	t/d 2-10	15-25 t/d	t/d 25-50	35-70 t/d	60-100 t/d	80-130 t/d	t/d 110-160
Grass pulp (raw)		20-30 t/d	35-60/ d	60-100 t/d	70-120 t/d	90-150/ d	130-180 t/d
Bamboo Slurry (Ripe)	t/d 10-30	t/d 35-600	t/d 50-80	t/d 80-150	200-300 t/d	t/d 300-350	350-400 t/d

Packaging & Shipping

Company Information

Shandong Fangyuan Zhonghe Machinery Co., Ltd(Formerly Zhucheng Fangyuan Machinery Co., Ltd) is the backbone enterprise specializing in the production of environmentally-friendly pulping equipment, tissue paper machine and sewage treatment equipment, the main products include two categories, more than 50 series, the production of paper pulp making equipment, such as high consistency hydraulic refiner, sewage treatment equipment, with high technical content, it has reached the domestic advanced level in the same industry.

Fangyuan Zhonghe adhere to the business purpose and policy of "custom is the first" and "unity and pragmatism, striving for excellence", introduces the modern science and technology and management methods, and constantly introduce excellent talents and modern equipment, breaks through innovation, strives for excellence, the excellent quality makes company's products develop continuously in the fierce market competition. The high consistency hydraulic refiner we manufactured were sold well all over the country and exported to Southeast Asia, Central Asia, Africa and other countries and regions.

With the rapid development of the national economy and the requirement of the sustainable development and harmonious development, environmental protection is playing a more and more important role. China's environmental protection industry is facing unprecedented opportunities for development. To improve the living environment of mankind and write a brilliant chapter of Chinese environmental protection industry, we will make unremitting efforts and have succeeded in carrying out an assignment. Our company warmly welcomes friends and business colleagues all over the world to come and guide us in creating a better future for environmental protection.
