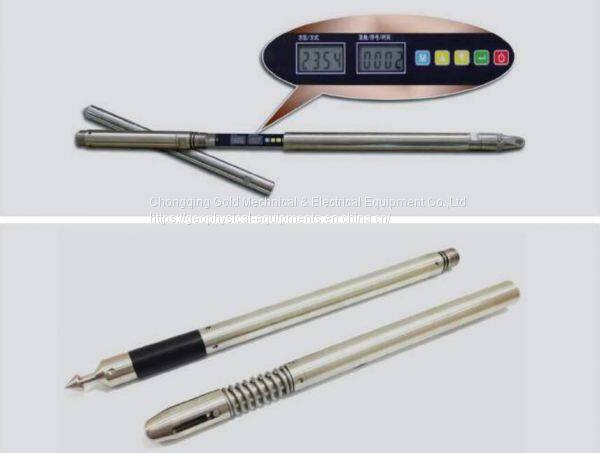

GDP-3D Drilling Hole Direction Inclinometer, Borehole Inclinometer for Orientation Tool

Purpose:
The GDP-3D Drilling Direction Inclinometer, Borehole Inclinometer for Orientation Tool  is designed to make inclination determination and directional control for engineering borehole, exploration borehole and directional borehole in the magnetic area. The instrument integrates sensor, power supply, and data processing system together to determine dip angle and azimuth angle of borehole in single/multi-point mode. It is not required to use cable and there is no mechanical moving part, so it is reliable and has high performance price ratio. It can be widely used in engineering, hydrology, oil field, coal filed, and geology to determine dip angle and azimuth angle of borehole.

Technical specification and parameters
1. Inclination measurement depth: ≤1200 m;
2. Parameter measurement range and accuracy:
(1) Dip angle:
A. Measurement range: 0∼50º;
B. Measurement error: 0.2º
(2) Azimuth angle:
A. Measurement range: 0∼360º;
B. Measurement error:
a. Dip angle is 1∼3º: ±5.0º;
b. Dip angle is 3∼50º: ±3.0º;
3. Measurement mode: at fixed points;
4. Measurement delay time: 1~180 minutes;
5. Timing interval for measurement: 1~60 minutes;
6. Measurement points: 1~100;
7. Data saved: 100 groups (it can save 1000 test data);
8. Power supply: Build in lithium battery; it can run 32 hours after been charged;
9. Inclinometer probe: φ70mm×1509mm;
10. Ambient temperature: 0°C∼55°C;


Product Tags: Drilling Hole Inclinometer , Borehole Inclinometer , 3D Inclinometer
