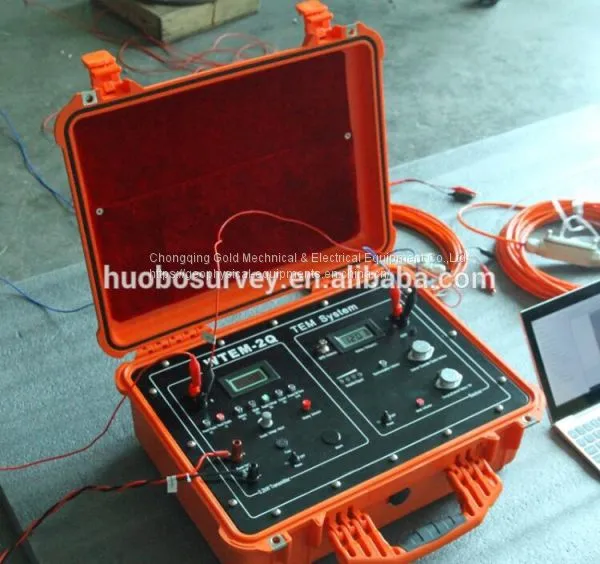

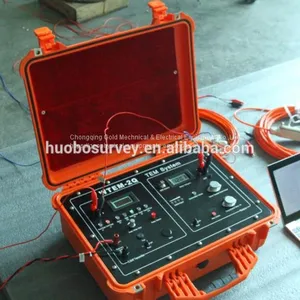

WTEM Transient Electromagnetic Method System for Detecting
This TEM system has the advantages of similar TEM systems at home and abroad. It has the advantages of high transmitting power, fast shutdown, high reliability, super anti-interference ability, lightweight and low power consumption.
Main Application
1. Configuration is selectable for different geological problems, such as quick survey, stereo mapping, deep mine finding and shallow detection.
2. It is mainly used for metal mine, coal mine, oil and gas field, geothermic field, and hydrological & engineering geology survey.
Technical Parameters
WTEM-2J/GPS TEM Exploration System Receiver
Channel number |
1 |
Main amplifier gain |
1,2,4,8,16,32,64,128 times |
| Band pass | 0~50kHz(liner phased filter), full band 0~400kHz |
| The minimum sample interval | 1μs |
| Crystal oscillation total error | ≤5×10-9 |
| Trace number | 50 |
| Stack number | 1~9999 |
| Synchronization mode | (1)Cable synchronization (2) GPS synchronization |
| Power supply | Built-in 12V rechargeable battery(support outside power), working time>10 hours |
| Working temperature | -10℃~+50℃ |
WTEM-1D 10KW Large Power Transmitter
Transmitting voltage |
200V |
Transmitting current |
50A |
Current measurement precision |
1% |
Power supply frequencies |
0.0625Hz,0.125Hz,0.25Hz,0.5Hz,1Hz,2Hz,4Hz,8Hz,16Hz,32Hz |
| Working temperature | -10℃~+50℃ |
| Transmitting power voltage display | Liquid crystal display unit V, display resolution 0.1V |
