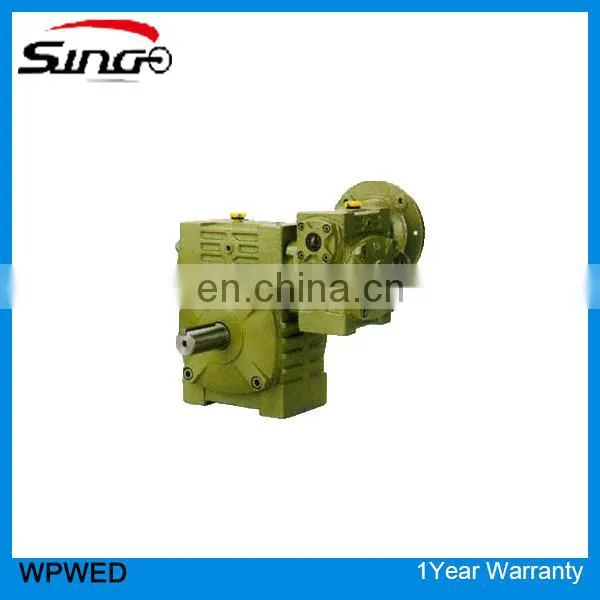

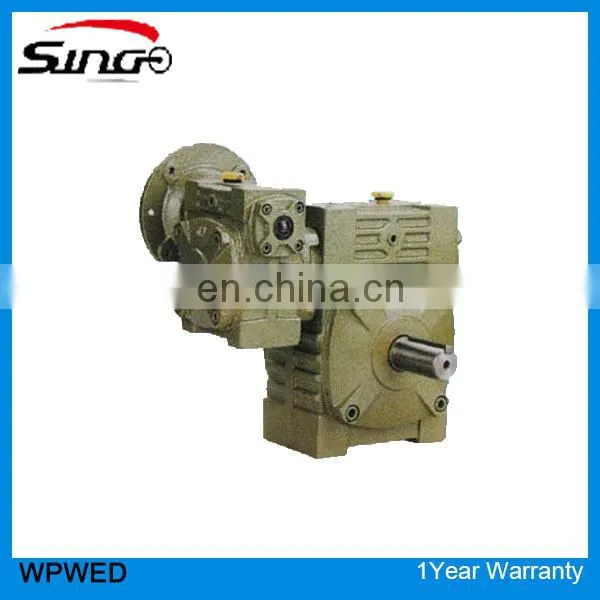

Product Name: WPWED 40-250 Worm Gear Speed Reducer
Features:
1) Small size, compact, lightweight and saves space for mounting
2) Runs steadily with low noise
3) High reliability and high efficiency
4) Superior performance, easy maintenance,
5) Easy installation, by motor direct connection and shaft input, shaft and hollow shaft output form, shaft installation and flange mounting forms.
6) Good-looking appearance, durable service life and small volume
Working conditions:
1, Worm reducer worm speed cannot exceed 1500r / min.
2, The working environment temperature -40 ℃ - + 50 ℃, when the working ambient temperature is below 0 ℃, starting before the oil must be heated to above 0 ℃, When the working environment temperature is higher than 40 ℃, cooling measures must be taken.
3, Worm gearbox can be both positive and negative rotation of the shaft.
| Product Name | WPWED Worm Gear Speed Reducer |

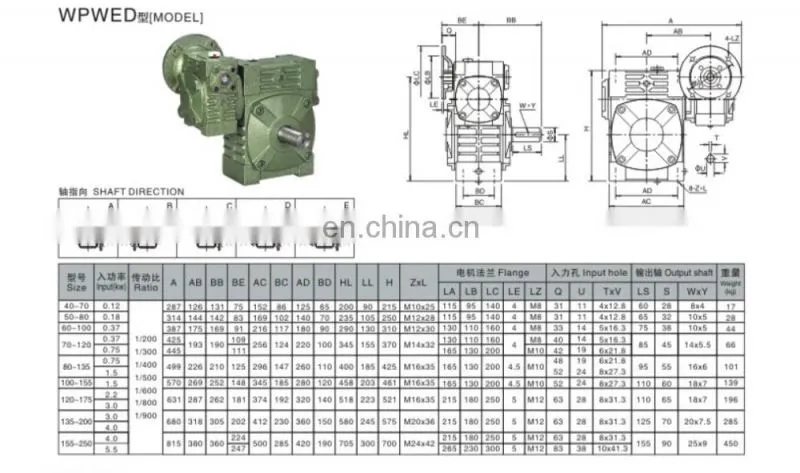

| Size | WPWED 40- 250 |
| Ratio | 10,15,20,25,30,40,50,60 |
| Color | Green,Brown or as customized |
| Weight | 5.4-410KG |
| Surface Hardness of Gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Noise (MAX) | 60~68dB |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Packing | Paper Carton,Plywood box / per set(With foam board inside) |
| Price Term | FOB Ningbo Or Shanghai |
| Seal | NAK Seal from TAIWAN |
| Warranty | 1 year |
| Imput Power | 0.12-15kw |
| Usages | In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics… |
