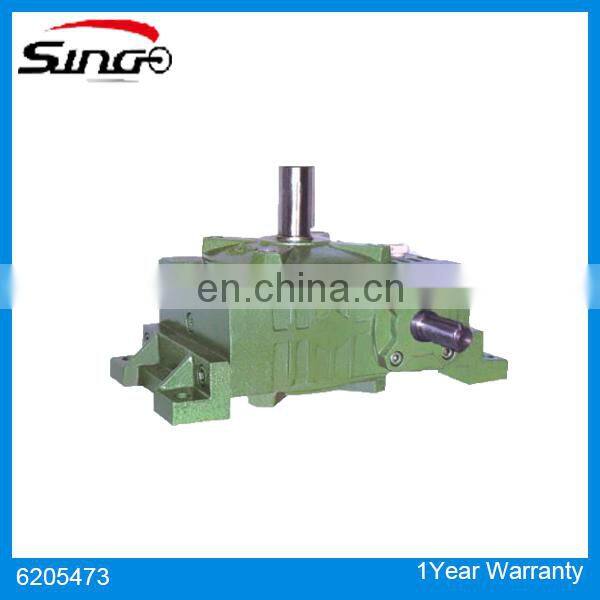

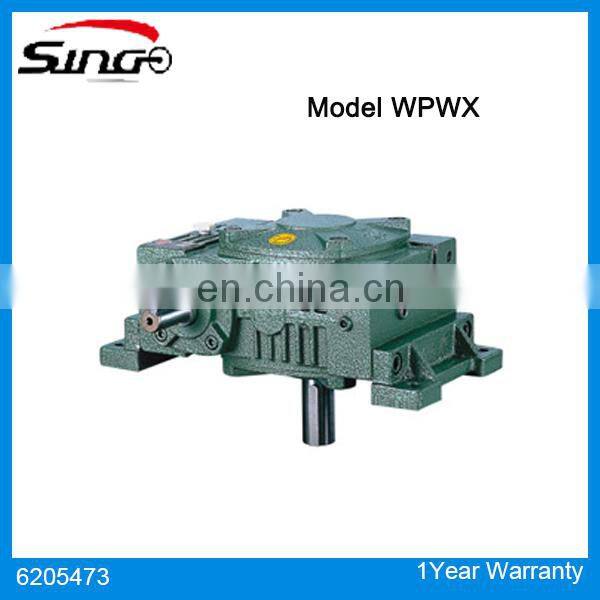

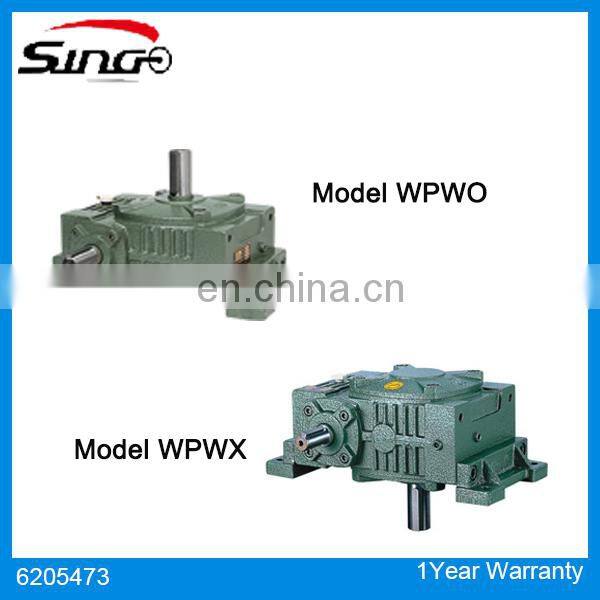

WPWX WPWO Series Sumitomo Cyclo Drive Gear Reducer
US$ 20 - 690
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Singo
Place of Origin:
Zhejiang, China
Model Number:
WPWX WPWO 250
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WPWX WPWO Series Worm Gear Right Angle Shaft Speed Reducer Gearbox on SaleUS$ 20 - 690MOQ: 1 Piece -
Worm Gear Reducer NMRV050US$ 25 - 40MOQ: 1 Piece
-
WPDZ Considerate Price Reverse Gearbox Model 80US$ 20 - 690MOQ: 1 Piece
-
WPWEKO Electric Motor Reduction Gearbox 120-175US$ 20 - 690MOQ: 1 Piece
-
WPWEKO Sumitomo Cyclo Drive Gear Reducer 155-250US$ 20 - 690MOQ: 1 Piece
Brand Name
Singo
Place of Origin
Zhejiang, China
Model Number
WPWX WPWO 250
Rated Power
0.4-8.62kw
Output Speed
24-140Rpm
Input Speed
1400rpm
Output Torque
19-2371Nm
Gearing Arrangement
Worm
Product Description
Product Name: WPWX WPWO 40- WPWX WPWO 250 Worm Gear Speed Reducer
Features:
1) Small size, compact, lightweight and saves space for mounting
2) Runs steadily with low noise
3) High reliability and high efficiency
4) Superior performance, easy maintenance,
5) Easy installation, by motor direct connection and shaft input, shaft and hollow shaft output form, shaft installation and flange mounting forms.
6) Good-looking appearance, durable service life and small volume
Working conditions:
1, Worm reducer worm speed cannot exceed 1500r / min.
2, The working environment temperature -40 ℃ - + 50 ℃, when the working ambient temperature is below 0 ℃, starting before the oil must be heated to above 0 ℃, When the working environment temperature is higher than 40 ℃, cooling measures must be taken.
3, Worm gearbox can be both positive and negative rotation of the shaft.
| Product Name | WPWX WPWO Worm Gear Speed Reducer |

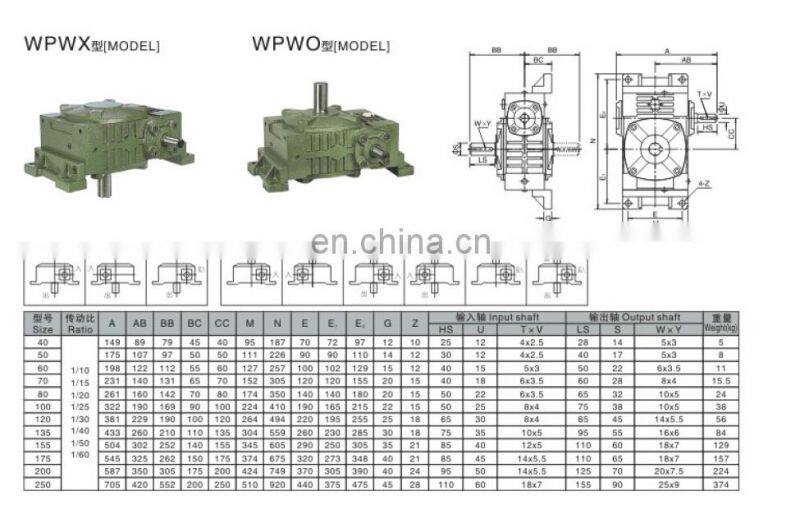

| Size | WPWX WPWO 40- WPWX WPWO 250 |
| Ratio | 10,15,20,25,30,40,50,60 |
| Color | Green,Brown or as customized |
| Weight | 5-374KG |
| Input/output shaft | Solid or hollow |
| Lifetime | More than 15000 hours |
| Noise (MAX) | 60~68dB |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Packing | Paper Carton,Plywood box / per set(With foam board inside) |
| Price Term | FOB Ningbo Or Shanghai |
| with verious motors: | Can connect |
| Warranty | 1 year |
| Imput Power | 0.4-8.62kw |
| Usages | In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics… |
