Type:

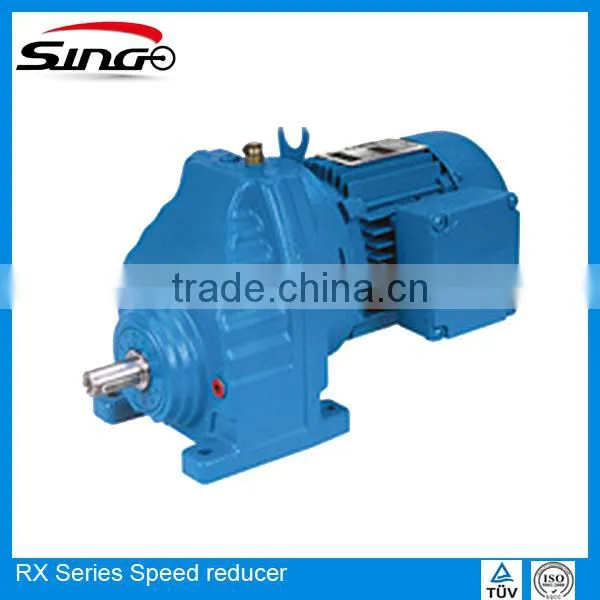

RX Series Single Rigid Tooth Flank speed reducer

Model:

RX57,67,77,87,97,107

Factory model:

RX57,67,77,87,97,107

Color:

Blue/Sliver or on customer request

Material:

HT250

Input power:

0.12-160kw

Output torque:

1.4-20700N.m

Output speed:

0.06-1090rpm

Bearing:

C&U, NSK, SKF or specified

Seal:

CTY, CFW, SKF  or specified

Product features:

RF series products follow the philosophy of modularization and optimization; adopt finite element analysis method and unique lower noise technology in designing gear, to insure advanced design. The classification of ratio is so accurate it has millions of combinations to meet varied demand of customers. The process from the material selection to manufacturing is strictly controlled ——box housing is beautiful and rigid casted by precision control, gear is endurable by carburizing. Take the flexible manufacturing control (FMC) in the manufacturing to realize the high precision level and maintenance-free of products.

Application areas:

Rubber & plastic machine, environmental protection machine, metallurgical machine, food stuff machine, stage machine, soldering machine, road construction machine, entertainment machine, packing machine, building machine,  automobile industry and conveyors industry.

Lubricant:

Mineral

Warranty:

1Year

M1

orizontally mounted motor,unit foot(forGR,GRX)or unit base (for GRF,GRXF) is at bottom.

M2

motor is vertically mounted downwards.

M3

horizontally mounted motor, unit foot(for GR, GRX)or unit base (for GRF,GRXF) is top.

M4

motor is vertically mounted upwards.

M5

horizontally mounted motor, if placed on M1 position, left side of unit turns to bottom

(view point: towards from motor side).

M6

horizontally mounted motor, if placed on M1 position, left side of unit turns

 to top

(view point: towards from motor side).
