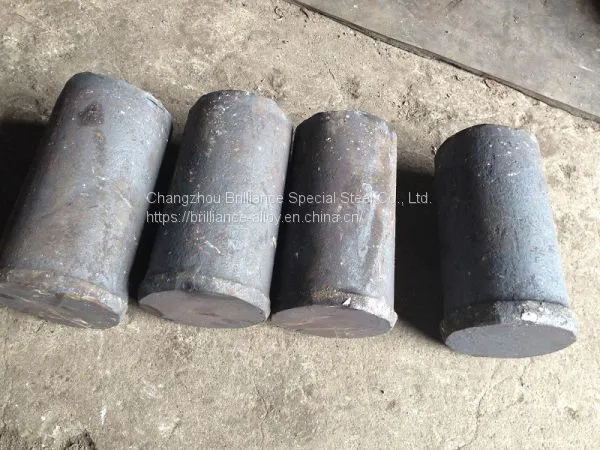

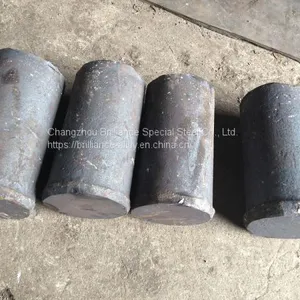

PERMENDUR 2V, PERMENDUR 49 (HIPERCO 50A)

Type Analysis

Carbon: 0.01Max. Manganese: 0.05Max. Silicon: 0.05Max.

Cobalt: 48.75Max. Vanadium: 1.90Max. Iron: Bal

Description

Hiperco 50A alloy is a soft magnetic alloy which has been used primarily as magnetic core material in electrical core material in electrical equipment requiring high permeability values at very high magnetic flux densities.

The magnetic characteristics of this alloy permit weight reduction, reduction of copper turns, and insulation in the end product when compared to other magnetic alloys having lower permeabilities in the same magnetic field range.

Physical Properties

Specific gravity.........................................8.20

Density

lb/cu in ................................................... 0.295

kg/cu m ................................................... 8200

Electrical resistivity

ohms c/mf ................................................ 253

microhm-mm ........................................... 420

Curie Temperature

°F ........................................................... 1710

°C ............................................................ 932

Saturation induction at

H = 250 oersteds(kilogausses) .................. 23

H = 19.9 at/m(Telsa) ................................ 2.3

Saturation magnetostriction

change in unit length x 10(-6) .................. 60
