Stage 3 Common Rail

stage 3 common rail

competitive price~         prompt delivery~          first-rate service~

1.made in china.
nvenient and durable.
3.OEM price.

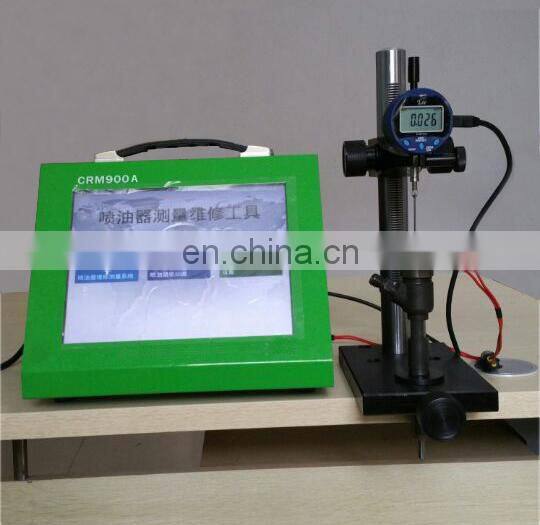

CRM900A stage 3 tool is the electronic measuring kits of measuring the common rail injector.

This kits is divided into two parts:  instrument and support. The instrument adopts touch screen, it also can be operated by mouse.

It can be used as the injector measuring and  maintain system, also can be used as injector actuator to drive injector working. the support can be fixed on the bench clamp,also can be fixed on the work bench.

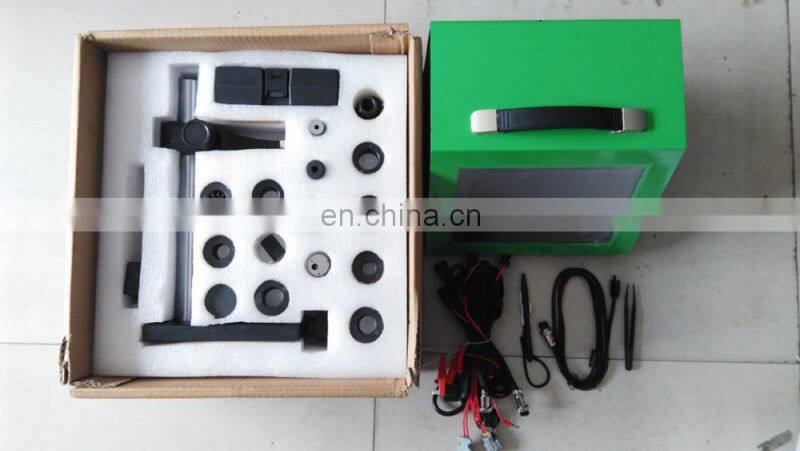

CRM900A include controllers, adapters, bracket, wiring harness,digital meter.

>>>FUNCTION

1. Test the first, second generation of injector.

2. Test the thickness of adjusting shims.

3. Test injector nozzle valve lift, nozzle spring force lift, armature lift, solenoid valve spring force lift, solenoid valve residual air gap.

4. Record the data of adjusting shims and lift, then calculate the thickness of the adjusting shims automatically.

5. The actuator can control the injection of injector according to set parameter, can realize multi-injection and single injection.

>>>FEATURE

1. 10.4" touch screen display, the shell is small and light.

2. The digtal gauge use Eee brand, accuracy is 0.001mm, measured data accurate.

3. The screen display the measured data in real time, and the data can be recorded.

4. Each test has clear testing process and method, and it also has the exploded view to show installation site of every shim and other parts.

5. It can calculate the thickness of the adjusting shims automatically according to the range of lift.

6. It is equipped with adapter to test the lift of every part of injector.

7. The support can be fixed on the bench clamp, also can be fixed on the workbench.

8. The bracket of dial gauge can be raised and declined.
