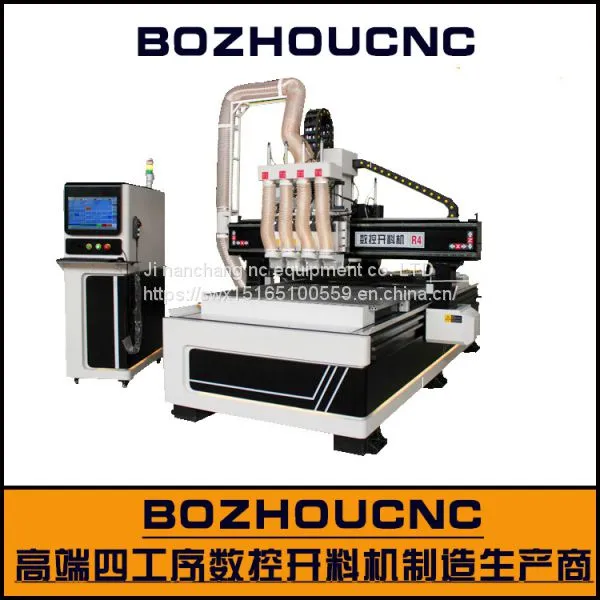

Composite plate CNC cutting machine automatic tool change 12 knife bank woodworking engraving machine factory holing cutting woodworking engraving machine supplier
Contact information: 15165100559 WeChat
Performance characteristics
1. The whole body adopts steel structure seamless welding tempering aging treatment, rigid and not deformed.
2. Taiwan imported linear square guide rail, double row and four row ball slider, loading capacity is big, smooth operation, high precision, long life, imported Italian double nut ball screw, high precision, the knife is accurate.
3. The main shaft is 6kw and 4.5kw
4. Equipped with independent cabinet, fission keyboard, split type keyboard operation, simple and convenient, easy to learn, referred to as "fool" flexible users can quickly master the use of the equipment, the stronger independence.
5. Equipped with vacuum adsorption, vacuum unit, vacuum adsorption six partition mesa light soft qualitative material processing and unique design, such as density board, different sizes of plate can be placed also keep the surface roughness, make out the effect of depth, and improve the processing outside the plate loading and unloading time; The dust removal system can absorb the sawdust and foam during processing, and maintain the clean and indirect equipment.
6. Referring to the new generation of mountain dragon control system, intelligent processing and overstepping protection function, to prevent the mechanical collision caused by the design of the layout beyond the processing size. Equipped with handwheel handling, it is more convenient and flexible.
7. Good software compatibility, compatible with type3/ Artcam/Castmate/wentai and other CAD/CAM design and production software.
8. This machine is especially suitable for the mass processing of woodworking, wooden doors, furniture, cabinets, molds and other materials.
9. Servo motor and servo driver are adopted, with high precision, fast speed and cost saving.

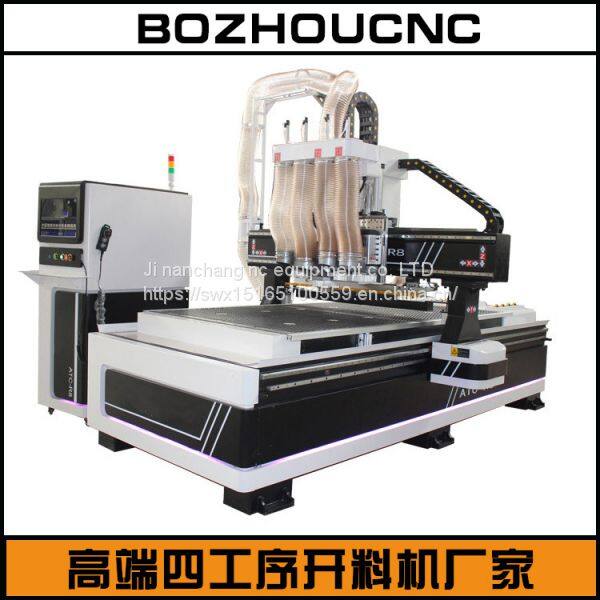

Machine type 1325 four-process CNC driving machine
1300 mm X trip
Y travel 2500 mm
Z travel 200 mm
The mesa size is 1300*2500mm
The machining accuracy is plus or minus 0.05mm
The repeated positioning accuracy was plus or minus 0.05mm
Maximum air speed of 35000mm/min
Maximum working speed of 25000mm/min
X, Y, Z structure XY high-precision new Po reducer + crescent 1.5M rack, Z inlet ball screw
Guide rail Taiwan 25PDF square rail
Drive mode 2206 servo motor + matching drive
Main shaft consumption power of 6kw wind cooling spindle 4
The oil filling system is fully automatic adjustable timing lubricator
Spindle speed 0-18000r/min
Control system mountain dragon control system (with handwheel)
Mesa structure double vacuum adsorption mesa
Working voltage AC380V/60Hz
Dust removal device 5.5KW double drum vacuum cleaner
Vacuum pump 7.5kw suction vacuum pump
The feeding device is equipped with a secondary dedusting automatic feeding device
Positioning function raw material 4 direction automatic positioning function
Distribution open material software yunxi automatic typesetting and tear open material software one set
