Direct 1325 woodworking engraving machine factory can wholesale 1325 woodworking engraving machine 1325 woodworking engraving machine supplier
Contact information: 15165100559 WeChat ID

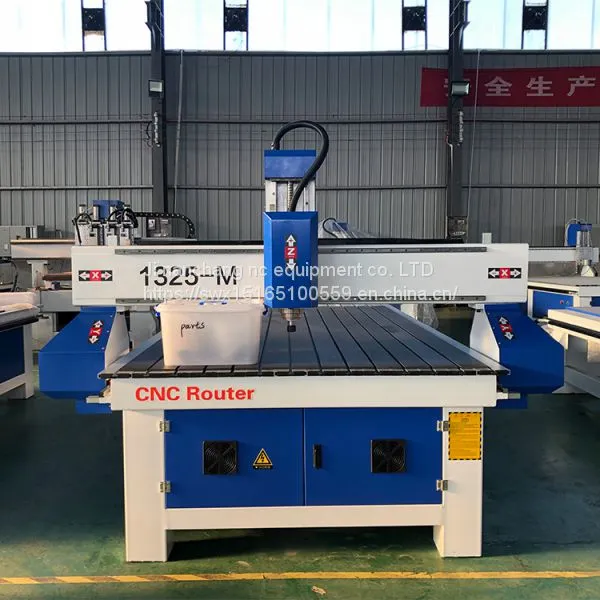

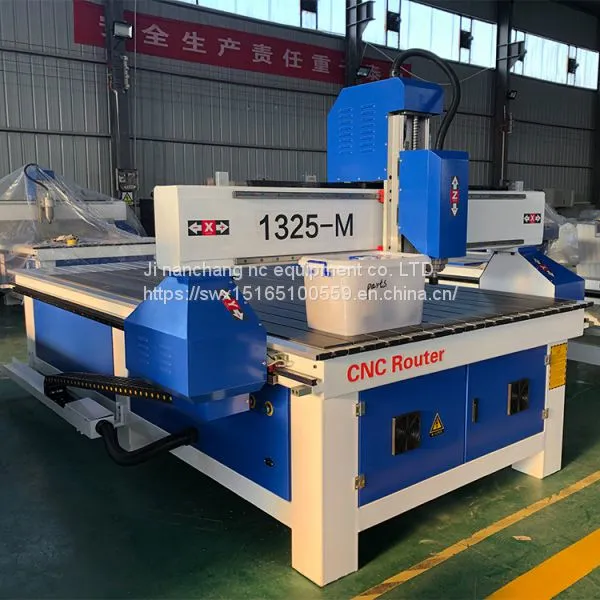

Machine structure and configuration
1、Introduction
|
Bridge mechanical structure, compact occupation area is small 1.Lathe bed is made of high quality thick walled square steel tube, the T section steel panel, high strength welding tempering treatment bed body, body weight more than 1800 kg, greatly increased so that the stability of the machine, manual cutting effect is good。 2.Repeated repeated tempering treatment, so that the bed is hard to deformation。
|
|
Working table Unique design platform and decorative strip is very suitable for carving cutting wood and plastic sheet, and equipped with human fixture, making the feeding, picking and other operations more convenient。
|
|
Japan imported Yaskawa drive system 1．Closed-loop control is used to ensure accurate response to precise positioning and optimum acceleration, which makes the automatic positioning mechanism smooth, reliable and easy maintenance;
|
|
Bilateral drive, linear guide, rack and pinion drive Y-axis bilateral drive to ensure accuracy; imported rack and pinion drive system, high precision, to ensure long-term smooth operation。 |
|
Taiwan（HIWIN）linear guide Higher speed, low noise volume, to ensure high accuracy, long service life |
Features
Machine bed support The overall steel structure welding, rack drive, processing efficiency is higher。
X.Y.Z three-axis linear track, smooth movement, high precision, small vibration。
High-power water-cooled brushless frequency conversion spindle motor, cutting strength is strong, durable。
Use high-speed drive, stepper motor, improve work efficiency
With the industry's advanced advantages, up to 10 breakpoint memory function, greatly reducing the waste, waste phenomenon；
Strong compatibility, suitable for a variety of numerical control software: type, 3Artcam, CastmatePore, Wentai, a variety of CAD / CAM software. Easy to make relief, shadow carving and three-dimensional art words。
Machine size |
3600*2200*1700mm |
X、Y working size |
1500*3000mm |
Z feed height |
>200mm |
Machine structure |
T-type tempering heavy |
Maximum operating speed |
35m/min |
Maximum working speed |
15m/min |
Resolution |
±0.001mm |
Work instruction |
G code.uoo.mmg.plt |
Software operating environment |
Windows98/2000/xp |
power（without spindle） |
3.5KW |
Operating Voltage |
AC380V/50Hz |
Spindle |
Italy 9kw HSD air cooling spindle |
Spindle speed |
24000rpm/min |
Working mode |
Servo |
Fixing mode |
Vacuum adsorption table |
motor |
Imported servo motor and drive |
Driver |
Imported servo motor and drive |
Guide |
Imported silver square rails 25 |
Screw |
Germany imports high-precision screw |
System |
Genuine Shanghai NC system(for Wentai, Type3, carved and other software) |
Price |
EXW 15600 USD (with plywood packing) |
