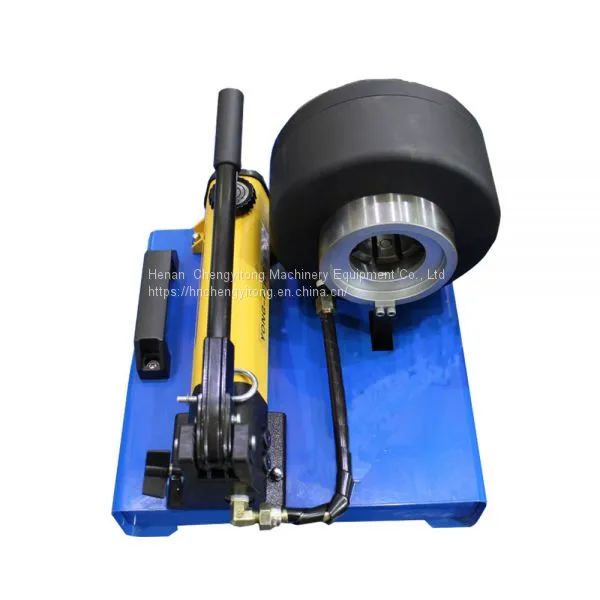

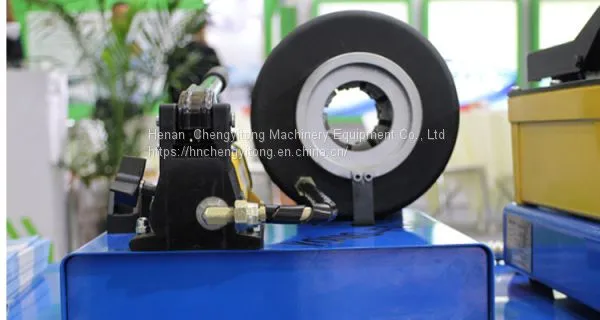

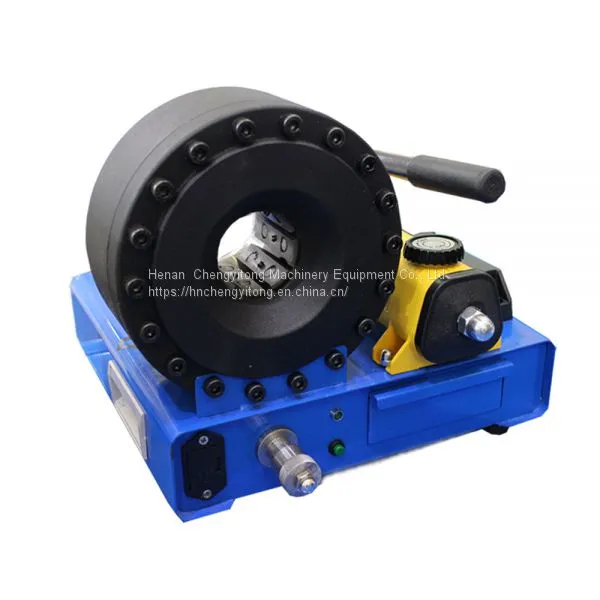

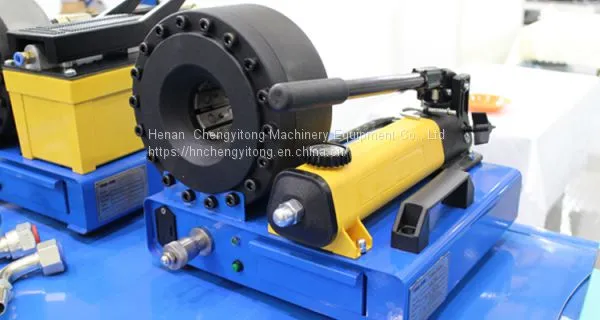

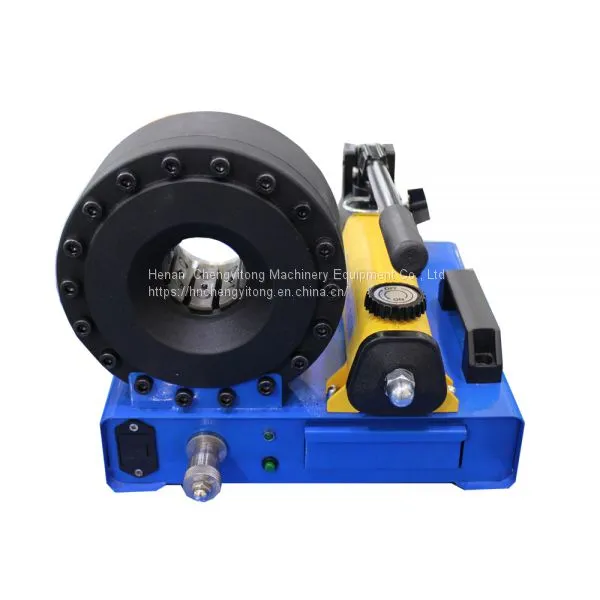

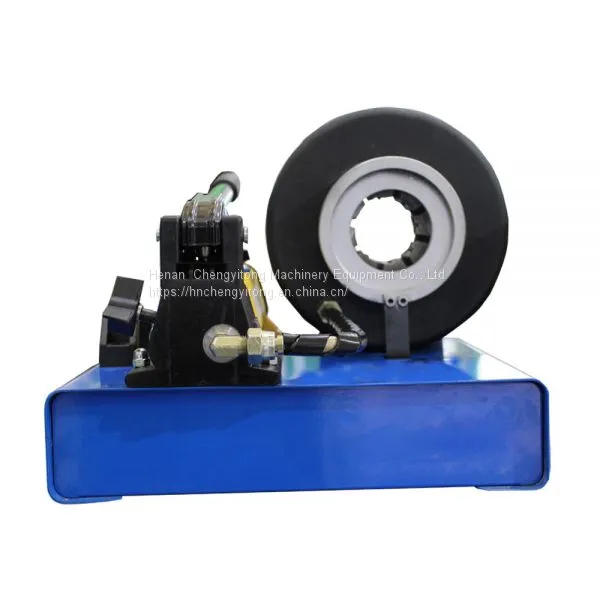

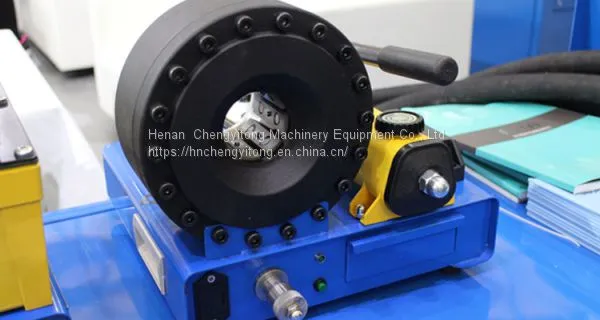

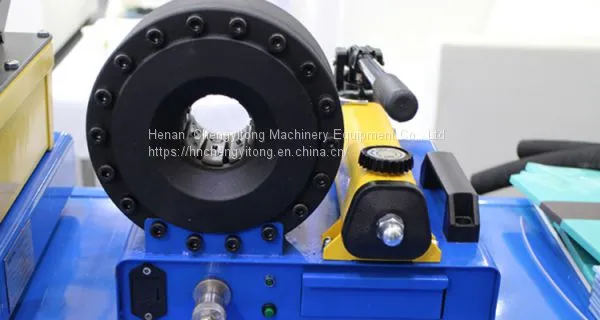

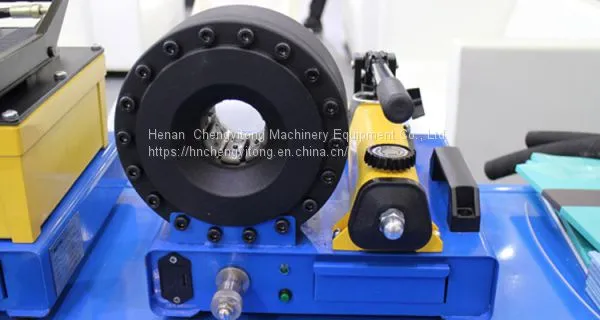

1" Manual hydraulic hose crimping machine
1" Manual hydraulic hose crimping machine is used for crimping low pressure rubber hose such as brake hose, ac conditioning hose.It is portable and convenient.
Specification of 1" Manual hydraulic hose crimping machine
Machine head |
FORGE STEEL |
Hose size |
1”， 2SN |
Crimping range |
4mm to 45mm |
Max opening |
+20mm |
Passing diameter |
55mm |
Opening diameter |
55mm |
Crimping force |
955kN |
Operation mode |
Manual |
Standard dies |
7sets |
Weight |
24.5kg |
Size(L x W x H) |
330*400*270mm |
Specification of dies
DIE No. |
＃06 |
＃08 |
＃10 |
＃13 |
＃16 |
＃19 |
＃25 |
D |
14-17mm |
18-20mm |
20-22mm |
23-26mm |
26-31mm |
29-36mm |
37-45mm |
L |
65mm |
65mm |
65mm |
65mm |
65mm |
65mm |
65mm |
Application of 1" Manual hydraulic hose crimping machine
The machine is widely used in engineering machinery ,oil fields, steel mills ,ship manufacturing, agricultural machinery ,coal and other industries.
Feature of 1" Manual hydraulic hose crimping machine
1) Using forge steel machine head, this kind of steel is more durabler than general steel.
2) Simple controls and operation.
3) Small body, simply designed, convenient for operating and carrying.
4) Suitable for outdoor work without electric power.
5) Magnetic dies (Patented), very convenient to remove and install dies.

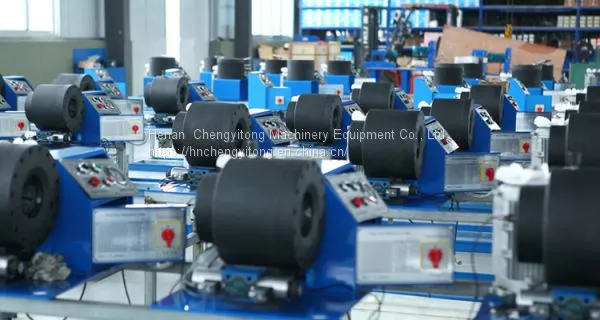

Our company
Henan Chengyitong Machinery Equipement Co., Ltd specializes in hydraulic hose crimping machine , hose cutting machine , hose skiving machine and other equipment. We insist Quality Create Value and will provide one-stop service for our customers.

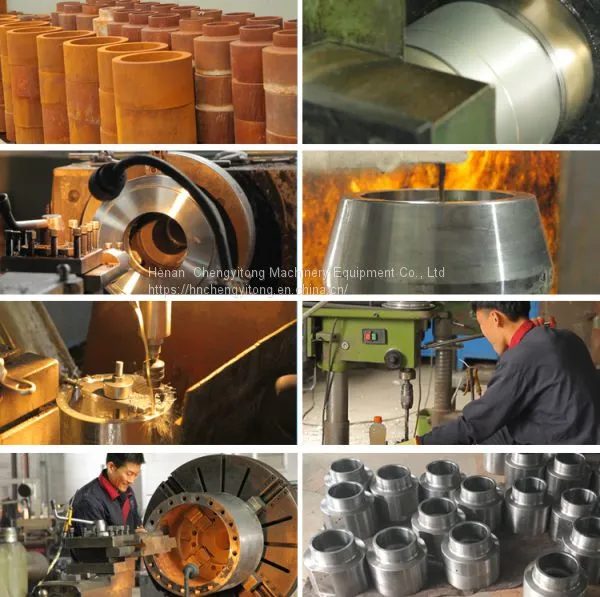

Technology of 1" Manual hydraulic hose crimping machine
Package of 1" Manual hydraulic hose crimping machine
1. Prepare fumigation-free wooden pallets as export standards for packaging and inspecting Conveniently.
2. Fix the machine on the wooden pallet to avoid slipping and shaking.
3. Wrap moisture-proof film to prevent dampness and abrasion during transportation.
4. Add wooden cases to ensure transportation and prevent collision.
5. Wooden case is secured by overall steel strapping to ensure the package is firm and the machine is not damaged.
6.Trailer / Forklift loading.
