Hot sale ring die bird/chicken/poutry/livestock feed pellet mill machine
- 100 Unit / Units per Month
- Qingdao
- T/T L/C D/P D/A
- 15 days
Product Details
Brand Name: | Double Crane | Place of Origin: | China | Model Number: | HKJ250 |
Type: | Mill Machine | Certification: | ISO9001, CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 1 year | Dimension(L*W*H): | 1550mm x 1300mm x 1400mm | Condition: | New |
Voltage: | 380V | Power(W): | 22KV |
Product Description
HKJ250, named ring die pellet mill, is a kind of feed pellet machine to process various of cereals like corn, wheat, soybean and coarse fiber materials like grass, crop stalk, peanut shell and grass. Some additives like molasses, vegetable oil and vitamins can be added when pelletizing. The pellets are nutritional and easy to store and transport which greatly improve the efficiency of the cultivation industry.
Double Crane feed pellet machine is patented products with unique designs by Shandong Dould Crane Machinery Manufacturer Co., Ltd.. The die molds of Double Crane bird feed making machineare made of stainless or alloy steel for your choice. And they has the incomparable superiorities of low cost, reasonable structure, compact layout, reliable performances and easy maintenance.
HKJ250 bird feed making machine
1. Features & Advantages
a. Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production.
b. Equipped with the interlock device, outer machine discharging device and overload protection device, the machines run smoothly. And their safety and stability is to get improved and strengthened.
c. Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation champer.
d. The cooking time and reasult are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.
e. The circulating lubrication oil system is specially designed to ensure the bearings in good condition.
f. three kinds of conditioners can be choosable according to your requirements: the ordinary conditioner, thermal insulation conditioner and double shaft differential conditioner.
g. With the output of 0.8-1.5 T/H, HKJ250 is suitable to small-sized and medium-sized feeding mills, livestock farms, aquaculture plants and so on.
2. Technical parameters

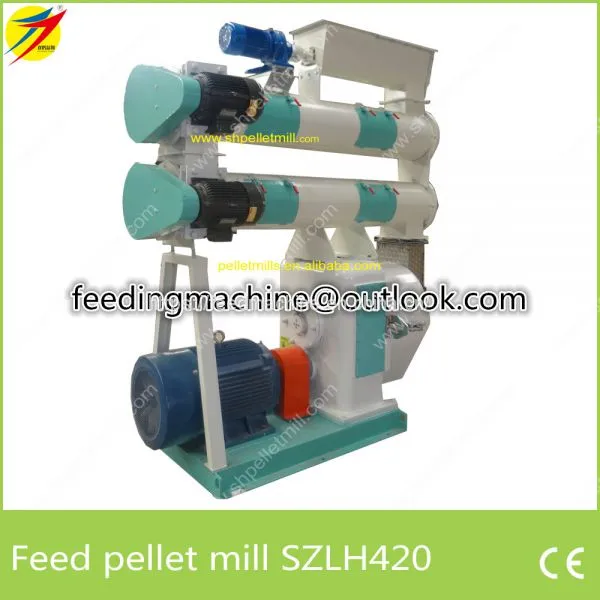

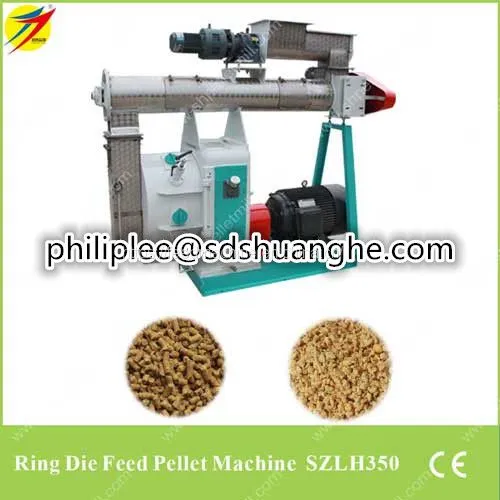

Model | HKJ250 | SZLH320 | SZLH350 | SZLH420 | SZLH508 |
Capacity(t/h) | 0.8-1.5 | 3-4 | 2-8 | 3-12 | 4-20 |
Main power(kw) | 22 | 37 | 45/55 | 90/110 | 110/13 2/160 |
Conditioner power(kw) | 2.2 | 2.2 | 3.0 | 5.5 | 5.5/7.5 |
Feed power(kw) | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 |
Inside Dia(mm) | 250 | 320 | 350 | 420 | 508 |
Pelet Size(mm) | 2-8 | 2-8 | 2-18 | 2-18 | 2-18 |
3. Product Application
Double Crane feed making machine is widely used in the large-scale, medium-scale and small-scale poultry farms, aquaculture plants and livestock breeding plants.
4. Main parts
5. Raw Materials
a. Cereals: corn, maize, corn, grain, soybean, sorghum, corn flour, wheat flour;
b. Coarse fiber: wheat bran, corn stalk, soybean meal, grass meal, rice husk, grass, groundnut shell, cotton seed hull, sorghum stalk, rape stalk, peanut seeding, sunflower stalk, chaff, shrubs etc.
c. Additives: molasses, vegetable oil, Amino acid, bone meal, vitamin
Generally, raw materials for ring die pellet making machine are cereals(100%) or cereals(60-80%) and coarse fiber(20-40%).
6. Finished pellets

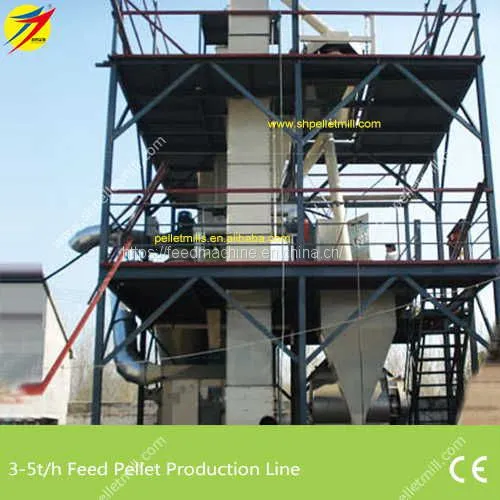

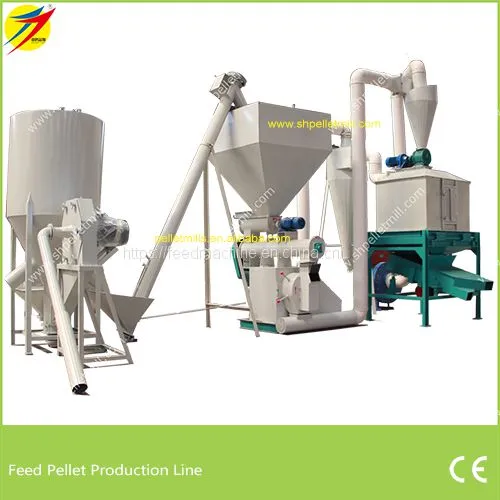

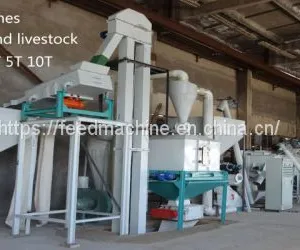

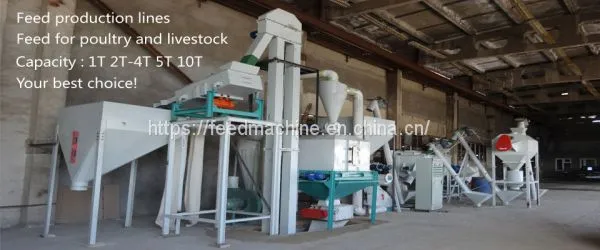

7. Feed production line
Double Crane feed making machine is the key to make pellets in the whole feed production line. Depending on feed machines with different modles, the capacity of this feed line ranges from 1 ton to 20 ton per hour.
Pellet mills, hammer mills and mixers produced by Shandong Double Crane Machinery Manufacturer Co., Ltd. are mostly certified by CE, ISO and SGS.
Double Crane are able to choose a more adapted packing ways for you such as wooden case and iron case. Pls kindly tell us your idea, we will immediately design a better project with reasonable shipping charges and reliable packing to suit to your requirements.
a. Technical support online service provided.
b. Technical files service provided.
c. On-site training service provided.
d. Spare parts replacement and repair service provided.
Shandong Double Crane Mchinery Manufacturer Co., Ltd. was established in 2005. And the factory is located in Leling city, Shandong province and occupies over 60,000 square meters. There are more than 150 workers, 30 mechanical designers and experts and 3 sales team.
Adhering to the concept of green, eco-friendly environment and humanisum, by learning domestic and foreigh advancedd technology, we are dedicated to R&D, production and sale of feed machines, biomass energy machines nd organic fertilizer machines. Among them, hammer mills and feed pellet machine are both certified by SGS, CE and ISO 9001. Upon to now, our products have been already exported into more than 30 countries and regions in the world. They have been enjoyed a high reputation by clients with high quality, reliable service and nice performance.
Our factory and business are rapidly expanding in 2015. We sincerely hope to establish a new cooperative relationship with clients in the world. If you are such a client and interested in feed machines, pls don't hesitate and contact us soon.
Welcome to visit our website: .
