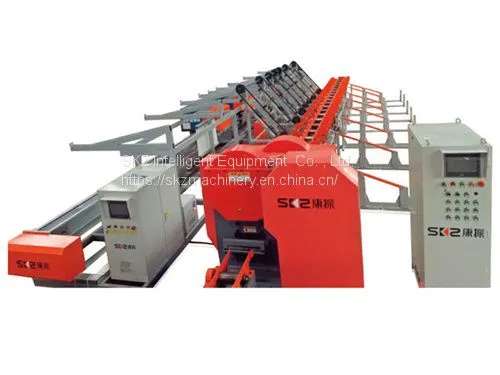

INTEGRATED REBAR CUTTING & BENDING MACHINE
Space saving Integrated Rebar Cutting
Save labor Integrated Rebar Cutting
A perfect Combination of rebar shear line &rebar bending center
Highlights:
This production line is a perfect combination of rebar shearing line and rebar bending center
An integrated equipment with the function of both shearing and bending
It realizes lean manufacturing of rebar processing
Space saving: no space required for cut-to-size rebar, the combined machine covers an area of 120㎡
Save labor: the machine is with direct consignment, save the labor for lifting and carrying
Improved efficiency: process the raw material into semi-finished bends with minimum duration
guaranteed quality: the working procedure is closely connected, enables to detect abnormal conditions and correct it without delay
Easy operation: equipped with humanized running program and modularized setting. easy to operate
INTEGRATED REBAR CUTTING & BENDING MACHINE
Model |
KQW32BX |
||||||||||||||||||
Max Shear Foree (KN) |
1750 |
||||||||||||||||||
Conveying Speed(m/min) |
≤60 |
||||||||||||||||||
Max Steel Strength (MPa) |
570 |
||||||||||||||||||
Cutting Langth (mm) |
Manual |
0-1200 |
|||||||||||||||||
Automatic |
1200-12,000 |
||||||||||||||||||
Culling Capacity |
(φ)(mm) |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
28 |
32 |
36 |
40 |
||||||
No.(235Mpa) |
17 |
14 |
12 |
11 |
9 |
8 |
8 |
5 |
5 |
4 |
2 |
2 |
|||||||
No.(400Mpa) |
15 |
12 |
11 |
9 |
8 |
7 |
7 |
5 |
4 |
3 |
2 |
2 |
|||||||
Average Pewer Consumption (KW/h) |
25 |
||||||||||||||||||
Max Bending Angle (°) |
(φ10-φ28) +180 -100 |
||||||||||||||||||
Max Bending Size (mm) |
10500 |
||||||||||||||||||
Min Bending Size (mm) |
90 |
||||||||||||||||||
Min Bending Size Length (mm) |
(φ10),(630) |
||||||||||||||||||
Length Tolerance (mm) |
±2 |
||||||||||||||||||
Bending Tolerance (°) |
±1 |
||||||||||||||||||
Speed Control |
CNC Servo control |
||||||||||||||||||
Labeled elechic Power (kw) |
14 |
||||||||||||||||||
Moving Speed (m/s) |
0.2-0.9 |
||||||||||||||||||
Bending Speed (°/s) |
65 |
||||||||||||||||||
Cylinder Pressure (Mpa) |
0.6 |
||||||||||||||||||
Manufacture range |
Strand Diameter φ(mm) |
10 |
12 |
14 |
16 |
20 |
22 |
25 |
28 |
32 |
|||||||||
Nos to be sheared (pcs) |
6 |
5 |
4 |
3 |
3 |
2 |
2 |
1 |
1 |
||||||||||
Weightlkg) |
4500 |
||||||||||||||||||
