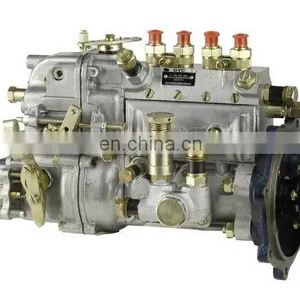

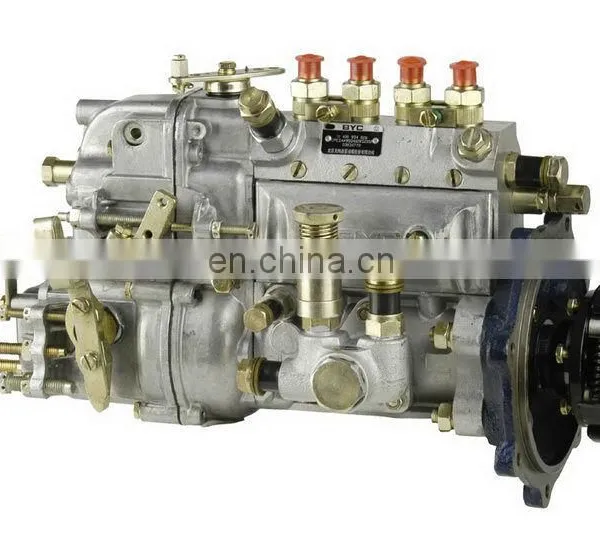

BYC Fuel Injection Pump 10400874091/Kama NC4110C-15 Diesel Engine Fuel Pump Assembly

BYC Fuel Injection Pump 10400874091/Kama NC4110C-15 Diesel Engine Fuel Pump Assembly thumbnail-1
BYC Fuel Injection Pump 10400874091/Kama NC4110C-15 Diesel Engine Fuel Pump Assembly photo-1
US$ 190 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
BYC
Place of Origin:
Beijing, China
Model Number:
CPES4A90D320RS2171
Contact Supplier Request Quote Chat Now
Beijing Global Auto Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BYC
Place of Origin Beijing, China
Model Number CPES4A90D320RS2171
Type Fuel Pump
Size Standard
OE NO. 10400874091
Car Make Kama NC4110C-15



A series injection pump related presentations

Product Features:

Inline synthetic mechanical diesel fuel pump, the overall structure of the body, with side windows; camshaft drive plunger oil pressure, isovolumetric the oil valve.



Application:
Trucks, tractors, generators, boats, water pumps, harvesters, etc.;

With RAD, RFD, RSV, RQA (V) speed governor and electronic speed governor used in conjunction;

The main technical parameters

Item

dia

Cylinder centre distance (mm)

32

Cam lift(mm)

8,9

Piston diameter (mm)

Φ 8,Φ 8.5,Φ 9,Φ 9.5

Pump max speed( r / min)

1800

The max amount of oil circulating (mm3 / Cycle)

130

Max allowable pressure (Mps)

50

Number of cylinders

4,6,8

Cylinder Max power (Ps )

25



Products information

Offering high quality products and high quality service



1. Fuel nozzle: S, P, J, PN, ND series and common rail is on testing



2. Fuel injector: S, P, T, common rail, electronic controlled series



3. Delivery valve:



4. Plunger and barrel assembly:



5. Fuel pump



…



Products list

Part No. Code OE.Engine Type Pump Type OE. NO.
10400874050 A4 050A Weichai Deutz TD226B-4T3 CPES4A90D320RS2151 13020456
10400874053 A4 053A Weichai Deutz CPES4A95D320RS2152 13021223
10400874054 A4 054S Weichai Deutz CPES4A90D320RS2151 13021514
10400874059 A4 059S Weichai Deutz CPES4A90D320RS2151
10401014063 A4 063S Weichai Deutz CPES4A95D320RS2152 13023251
10402376045   Weichai Deutz CPES6AD95D320RS2140
10402376046   Weichai Deutz CPES6AD100D320RS2139
10402376047   Weichai Deutz CPES6AD95D320RS2140 13021083
10402376049   Weichai Deutz CPES6AD100D320RS2139 13021334
10402376050   Weichai Deutz CPES6AD100D320RS2139 13021371
10402376051   Weichai Deutz CPES6AD95D320RS2140 13021283
10402376052   Weichai Deutz CPES6AD95D320RS2140 13021424
10402376061 AD6 061S Weichai Deutz CPES6AD95D320RS2140
10402376068 AD6 068S Weichai Deutz CPES6AD95D320RS2163    13022657
10402376069 AD6 069S Weichai Deutz CPES6AD95D320RS2163    13022562
10402376070 AD6 070S Weichai Deutz CPES6AD100D320RS2159    13021818
10402376074 AD6 074A Weichai Deutz CPES6AD95D320RS2163 13021364
10402376075 AD6 075A Weichai Deutz CPES6AD100D320RS2159 13021363
10402376076 AD6 076S Weichai Deutz CPES6AD95D320RS2163    13021083
10402376077 AD6 077S Weichai Deutz CPES6AD100D320RS2159    13021334
10402376078 AD6 078S Weichai Deutz CPES6AD100D320RS2159    13021371
10402376079 AD6 079S Weichai Deutz CPES6AD95D320RS2163    13021283
10402376080 AD6 080S Weichai Deutz CPES6AD95D320RS2163    12273487
10402376081 AD6 081S Weichai Deutz CPES6AD95D320RS2163
10402376154   Weichai Deutz CPES6AD100D320RS2159 13020436
10402456048 AD6 048S Weichai Deutz CPES6AD95D320RS2141 13021503
10402456082 AD6 082S Weichai Deutz CPES6AD95D320RS2164 13021503
10402516085 AD6 085S Weichai Deutz CPES6AD95D320RS2163    13023252



Excellent services



1).Be promptly to reply each inquiry within 12 hours



2).Quality controlled in the factory from sample to mass production;



3).Various payment methods acceptable: Western Union T/T or L/C



4). Vision of Beijing Global trade: To become the world's leading supplier of fuel injection system.
