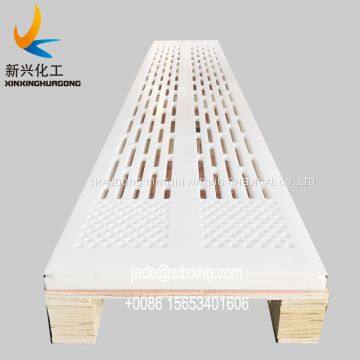

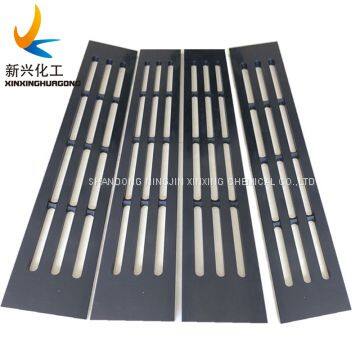

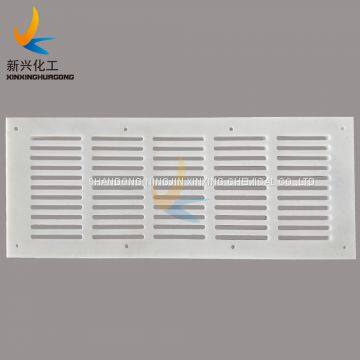

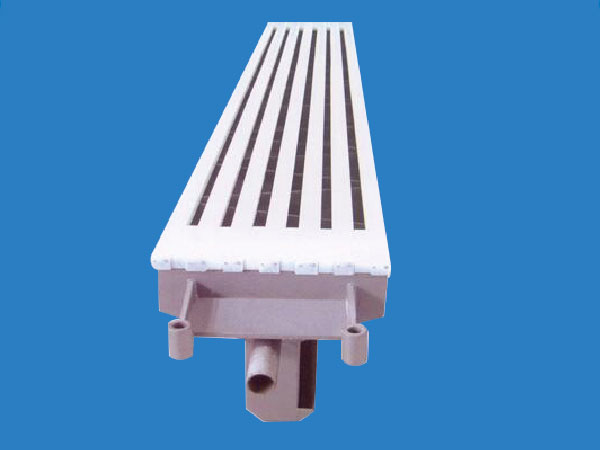

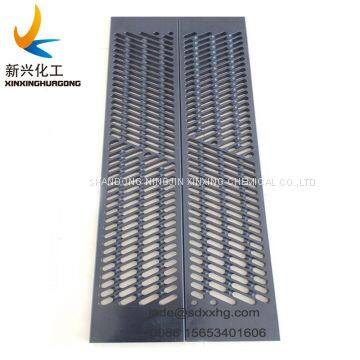

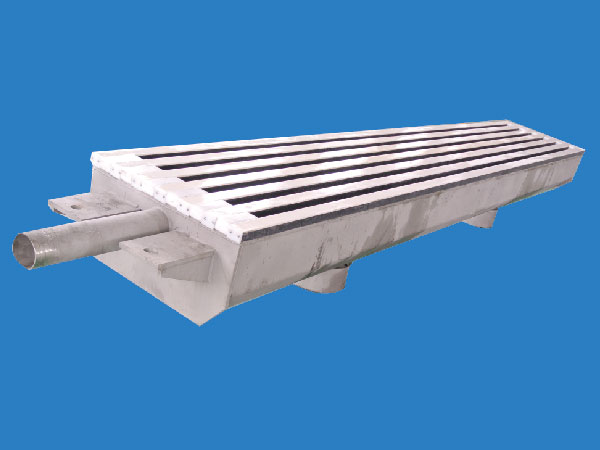

Paper Making Machine Parts - Hydrofoil Dewatering Elements Suction Box Cover for Paper Machine
UHMWPE Dewatering Elements Suction Box Cover Filter Plate for Paper Machine
Application
At machine speeds of up to approx. 750 m/min
Supply range
Forming board trailing blades / forming board covers
Forming board trailing blades
Hydrofoils
Vacufoils
Suction box covers
Felt suction strips
Paper Making Machine Parts - Hydrofoil Dewatering Elements Suction Box Cover for Paper Machine
Hydrofoil dewatering elements suction box cover for paper machine dewatering hydrofoils hygroscopic box for paper machine produces an extremely smooth surface, most importantly resulting of a low friction coefficient; a low level of adhesion. No adhesion Excellent chemical resistance hydrofoil dewatering elements suction box cover for paper machine dewatering hydrofoils hygroscopic box for paper machine.
Material | UHMWPE ( Ultra-high Molecular Weight Polyethylene ) | ||
Service | any design can be made as request | ||
Color | black/white/yellow/blue/red/orange or as request | ||
Application | On paper and pulp industry paper machines | ||
Type | suction box covers dewatering elements suction hydrofoil Forming boards Foil covers Doctor Blades Scraper blades Deflector blades Profile strips | ||
Key Features and Benefits | wear-resistant UHMW-PE material . extremely smooth surface low friction coefficient a low level of adhesion. No adhesion Excellent chemical resistance For machines with speeds up to 800 m/min | ||
1. Non-Toxic and smell
2. Low coefficient of friction
3. Corrosion resistant
4. Abrasion and impact resistant
5. Anti-Weather and Anti-Aging
6. Self-lubricating
7. Wear Resistant
8. Great liner material for industrial material handling applications
9. UV Resistant/ultraviolet-resistance sheet
10. High Operating Temperature
11. High Tensile Strength
12. High Viscosity
13. Flame Retardant
14. Reprocessed
The properties of UHMW-PE:
Property | Unit | Value |
Density | g/cm3 | 0.93-0.96 |
Average molecular weight | g/mol | 3million- 10 million |
Tensile strength (23°C in air) | MPa | 22 |
Breaking strength | MPa | 42 |
Tensile strain at break | % | 600 |
Charpy impact strength (notched) | mJ/mm2 | No break |
Ball indentation hardness | N/mm2 | 42 |
Shore D hardness | -- | 65-70 |
Abrasion | % | 70-80, steel = 100 |
Static Friction Coefficient | -- | ≤0.16 |
Kinetic Friction Coefficient | -- | ≤0.10 |
Water Absorption | -- | NIL |
Elongation at break at 23 degress | % | ≥300 |
Temperature resistance | °C | -269 to +85 |
Melt Temperature | °C | 130-140 |
