Outstanding Performance
1). Fan frame: Made from highly galvanised Steel sheets in order to assure highest strength and strong resistence to corrosion.
2). Blade: 6pieces stainless steel blades and the fan had all passed the experiment of homeostasis with big air volume, without deformation, no breaking, attractive and durable.
3). Belt Pullley: The V type belt pulley is aluminium alloy injection moulded, light weight, high-strength.
4). Bearing: France imported bearing, high intensity, low noise≤65db, long service life.
5). Motor: The high efficient and enerysaving motor passed the national CCC certification, Also protection class: IP55, insulation class: F-Grade
| Model | kk-910 | kk-1000 | kk-1270 | kk-1400 |
|
Blades Diameter (mm) |
910 | 1000 | 1270 | 1400 |
|
Blades Rotational Speed (r/min) |
500 | 470 | 458 | 420 |
|
Motor Rotational Speed (r/min) |
1400 | 1400 | 1400 | 1400 |
|
Air Flow (m³/h) |
31500 | 33000 | 43170 | 53800 |
|
Total Pressure (Pa) |
70 | 70 | 57 | 60 |
|
Noise (Decibels) |
≤64 | ≤64 | ≤64 | ≤64 |
|
Import Power (W) |
550 | 750 | 1100 | 1500 |
|
Rated Voltage (V) |
380 | 380 | 380 | 380 |
|
Height (mm) |
1000 | 1100 | 1380 | 1530 |
|
Width (mm) |
1000 | 1100 | 1380 | 1530 |
|
Thickness (mm) |
450 | 450 | 450 | 450 |
One-Stop Service as below
Pre-Sales Service
Receive clients inquiry
Make the detailed design according to clients specific situation and requirement
On-Salse Service
Produce the Ventilation Equipment
Take photo and video for clients after production to confirm
Ship the goods to clients' port
After-Sales Service
Available to send engineers to clients' site for installations
Provide install photo or video if necessary
Long warranty period
Ordinary Purchase
Sample is available, it needs pay first.
The Galvaized Sheet frame, and the Stainless Steel frame is available.
Professional manufacturer of ventilation, cooling, heating system in Livestock Farm, Greenhouse planting and Industrial field, which can supply you competitive price with excellent quality.

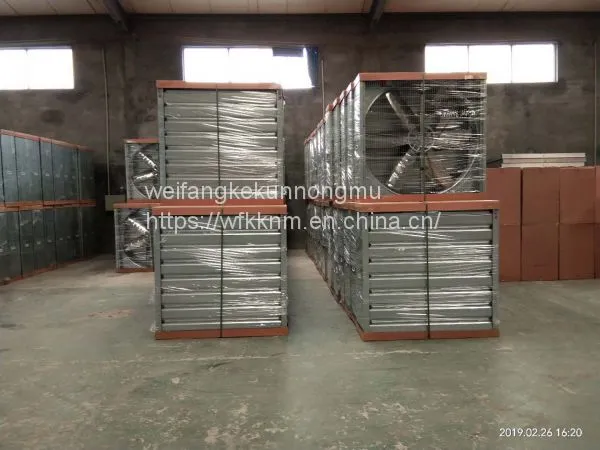

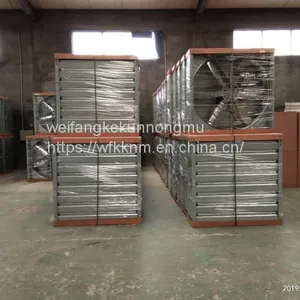

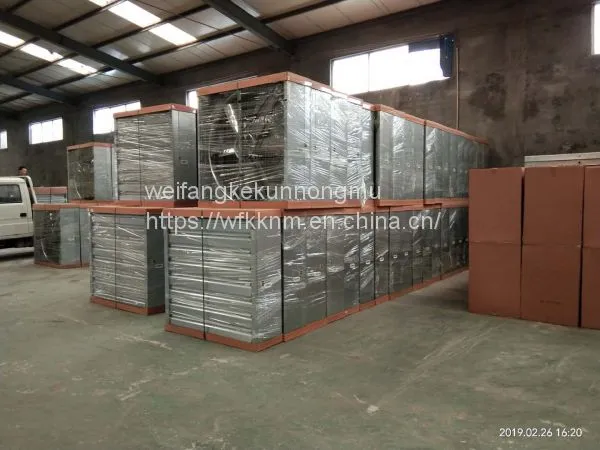

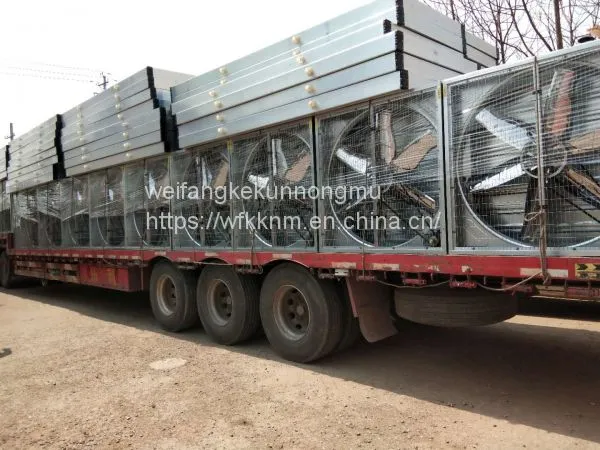

1. Package with carton box in completely assembled or unassembled. For the most popular type kk-1270 (50'') 20GP loads assembled 30pcs, unassembled 160pcs. 40HC loads assembled 68pcs, unassembled 360pcs. 2.Price items: EXW, FOB Qingdao, CFR or CIF 3. Payment term: 30% T/T deposit in advance, the balance be paid againse the BL copy.. It is negotiable. 4. The delivery time is in common condition, 7-10 days on receipt of down payment.
