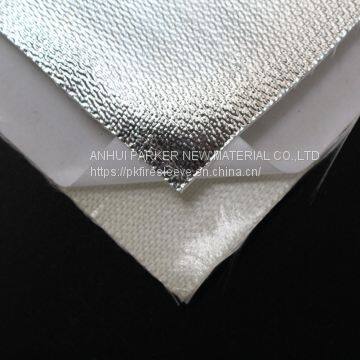

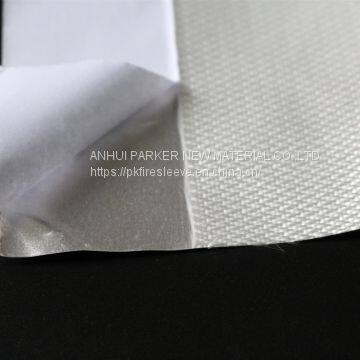

ALFS-PSA Adhesive Aluminized Fiberglass Thermal Wrap reflects more then 95% radiant heat. It is a aluminum coated fiberglass heat reflective sleeve forming tape with adhesive closure strips. This sleeve is easily wrapped over the wires, cables and hoses, then closed with the adhesive edge strips.
Features
Endures temperatures up to 1,200°F. Continuous Temperature Range: -60° to 255° C (-76° to 491° F);.
Cuts easily with scissors.
Reflects radiant heat.
Insulates delicate wires & components.
Resists gasoline & engine chemicals.
Application
It is used to protect the industry & automotive wires, cables, hydraulic hoses, piping and tubing from radiant heat sources.
Specifications
| DATASHEET | |||||||||
| Part Number | Normal Inside diameter | Meter for spool | |||||||
| Inches | mm | Dash # | Meter | ||||||
| ALFS-PSA-13 | 1/2 | 13 | -8 | 50 | |||||
| ALFS-PSA-19 | 5/8 | 16 | -10 | 50 | |||||
| ALFS-PSA-22 | 3/4 | 19 | -12 | 50 | |||||
| ALFS-PSA-25 | 1 | 25 | -16 | 50 | |||||
| ALFS-PSA-29 | 1 1/8 | 29 | -18 | 50 | |||||
| ALFS-PSA-32 | 1 1/4 | 32 | -20 | 50 | |||||
| ALFS-PSA-35 | 1 3/8 | 35 | -22 | 50 | |||||
| ALFS-PSA-38 | 1 1/2 | 38 | -24 | 50 | |||||
| ALFS-PSA-41 | 1 5/8 | 41 | -26 | 50 | |||||
| ALFS-PSA-44 | 1 3/4 | 44 | -28 | 50 | |||||
| ALFS-PSA-48 | 1 7/8 | 48 | -30 | 50 | |||||
| ALFS-PSA-51 | 2 | 51 | -32 | 50 | |||||
| ALFS-PSA-57 | 2 1/4 | 57 | -36 | 50 | |||||
| Technical Datasheet | |||||
| Material | Aluminum, fiberglass | ||||
| Working temperature | -40℃ - +260℃ | ||||
| Flammability | VW-1 | ||||
| Melting point | +537℃ | ||||
| Standard Color | Silver | ||||
| Standard Thickness | 0.8 mm | ||||
| MOQ | 20 meter each size | ||||
| Cutting tool | Scissors | ||||
Notes:
Special thickness upon request
Special length or packing upon request.
Special size upon request.
