Automotive Diesel Engine Parts Turbocharger
Automotive diesel engine parts turbocharger

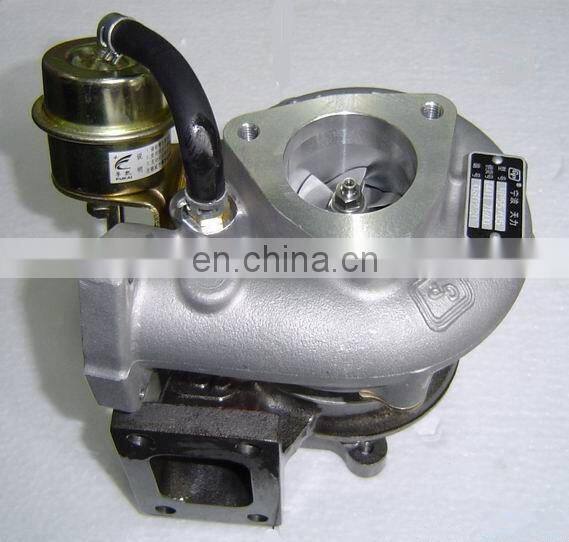

Product picture for turbocharger
How a turbocharger works?
A turbocharger is made up of two main sections: the turbine and the compressor. The turbine consists of the (1)turbine wheel and the (2) turbine housing. It is the job of the turbine housing to guide the (3) exhaust gas into the turbine wheel. The energy from the exhaust gas turns the turbine wheel, and the gas then exits the turbine housing through an (4) exhaust outlet area.
The compressor also consists of two parts: the (5) compressor wheel and the (6) compressor housing. The
compressor’s mode of action is opposite that of the turbine. The compressor wheel is attached to the turbine by a (7)
forged steel shaft, and as the turbine turns the compressor wheel, the high-velocity spinning draws in air and
compresses it. The compressor housing then converts the high-velocity, low-pressure air stream into a highpressure,
low-velocity air stream through a process called diffusion. The (8) compressed air is pushed into the
engine, allowing the engine to burn more fuel to produce more power.

OEM TURBOCHARGER SERVICE IS WELCOME.
Our advantages
1. Our factory(since 1979) holds ISO 9001 with over 200 sets of latest high precision machines.
2. Certified supplier of SDEC/WEICHAI/WEIFU in China
3. OEM service is available
Main products including turbocharger
Contact us
We are confident with our management in place, together with all the experience that we have, we will be able to service all your requirements in this specialised field.
Kingstar (Zhangjiagang FTZ) Trading Co., Ltd
Add: RM#:1810, Guotai Oriental Plaza, Renming Road, Zhangjiagang City, Jiangsu Province, China 215600
Tel: 86-512-89598777
SKYPE:athena.1986
Send Inquiry to This Supplier
