CCTV 4K 12.0MP H.265 IR Dome IP Camera
Features:
*Intelligent detection,5 items of anomaly detection,3 behavioral analysis
*Intelligent coding, maximum support for 4 ROI regions of interest enhancement bitstream
*Intelligent control,One button control alarm switch, troubleshooting
*Support for continuous transmission of disconnected network,alarm function of disconnected network
*1/1.7" Progressive Scan CMOS,support 12MP(4000X3000)@15FPS,Real Time
*Support H.265+/H.265/H.264/MJPEG video compression,
*Support for multi-level video quality configuration, coding complexity settings
*Support ICR filter switching function, day and night surveillance
*Support 3D DNR
*Built-in automatic day and night double filter switching mechanism, with manual or automatic color black and other switching methods
*Support ONVIF Protocol, GBT28181
*Optical variable, focus faster, zoom process clear all the time
*Support iPhone/iPad/Andorid, Supporting a variety of cloud technologies to realize P2P network penetration
Specisifications:
| Specification | |
| Product Name | CCTV 4K 12MP H.265+ IR Dome IP Camera |
| Model No. | WDM-IP8736W |
| Video | |
| System | Hi3519V101+Sony226 |
| Sensor | 1/1.7" Progressive Scan CMOS |
| Electronic shutter | 1/25s~1/10000s |
| Min.Illumination | 0.0001Lux@F1.2 |
| Noise-Signal Ratio | ≥50dB(AGC OFF) |
| Day and night conversion mode | Light detection/Video detection/Time detection |
| WDR | ≥80dB |
| 3D DNR | Support |
| Lens | 3.2/5/8mm 12Megapixel lens |
| IR Leds | 20m(24pcs f5 IR leds) |
| Compression standard | |
| Video processing | H.265+/H.265/H.264/MJPEG |
| H.265 coding type | Main Profile |
| Video rate | 32 Kbps~16Mbps |
| Audio compression format | G.711a/ G.711u/G.726 |
| Picture | |
| Image setting | Adjustable brightness, contrast, saturation, sharpness, white balance ;AWB (automatic), AGC(automatic) AE(exposure control) ;Support for privacy area occlusion OSD stack Image rotation: normal 90 °/ 270° automatic, manual or automatic color black more switching modes, etc. |
| Resolution | 4000 × 3000 |
| Video Output | Main streaming: 4000×3000/4096×2160 4K/3840×2160 4K/2592×1944 Sub streaming: 720P(1280×720)/D1(704×576)/VGA(640×480) |
| Frame rate | 50Hz: 15fps(4000×3000, 4096×2160); 25fps(3840×2160,1920×1080,1280×720) 60Hz: 15fps(4000×3000, 4096×2160); 30fps(3840×2160,1920×1080,1280×720) |
| Character superposition | Support |
| Smart Fuction | |
| Smart coding | Support low bit rate, low delay ROI Enhancement coding; Support for 4 ROI regions of interest |
| Smart detection | Support for occlusion detection, defocus detection, luminance detection, color detection, sound detection, legacy detection, shift detection Motion detection, virtual cordon, area intrusion |
| Smart control | Support intelligent control alarm on, alarm off, fault clearing, intelligent noise reduction |
| Network Fuction | |
| Network interface | IPv4/IPv6,802.1x,HTTPS, HTTP, TCP/IP, UDP, RTP, RTCP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP |
| Access Protocol | Standard ONVIF/GB T28181 Protocol/SDK |
| Support up to 8 users logged in at the same time | |
| Support Android\iPhone\iPad | |
| Auxiliary interface | |
| Network interface | 10 M/100 M Ethernet Interface |
| Audio interface | 1-ch audio input(MIC IN/Line IN) and 1-ch audio output. |
| Video output | 1-ch CVBS composite video output (BNC interface ,1.1Vp-p±10% ,RL=75Ω) |
| USB interface | 1 USD interface; Support TF card storage extension (MAX128G) |
| Alarm interface | 1-ch low level alarm signal input,Vin |
| General interface | 1 reset button , support one-click recovery |
| Normal | |
| Power supply | DC12V |
| Power consumption | 3W(MAX) |

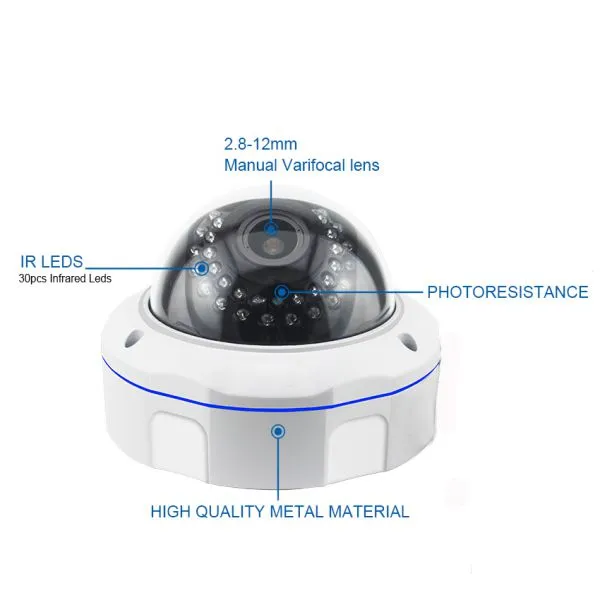

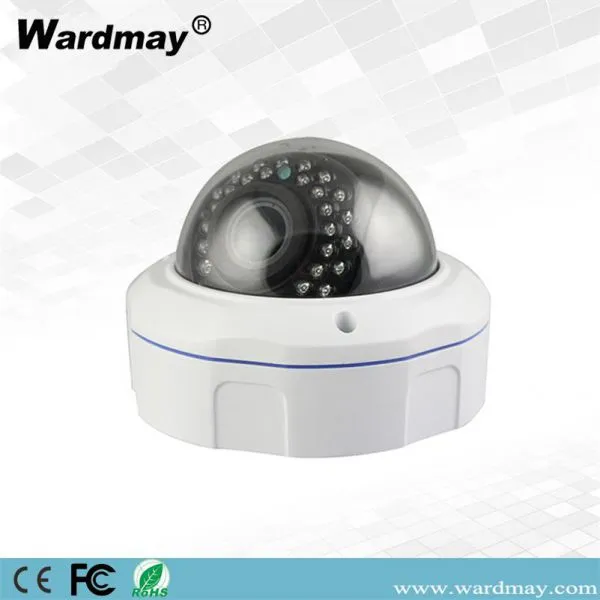

Product Show:
