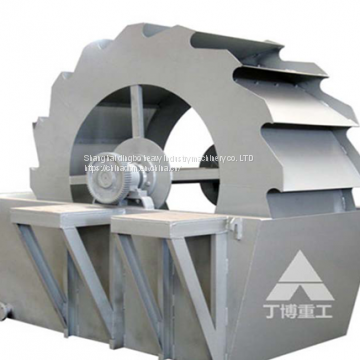

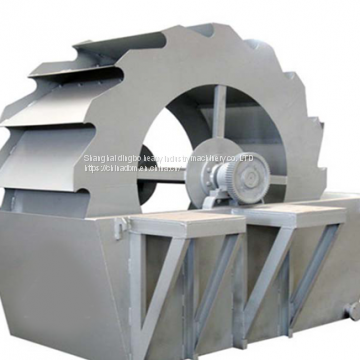

Impeller sand washing machine High-efficient Sand Washing Machine Industrial Sand Washing Equipment factory
The Dingbo XSD Series High-efficient Sand Washing Machine is an equipment to wash sand in coordination with the sand making machine., which is used for washing away the stone powder and impurity in the sand made by the Sand Making Machine, to increase the sand quality.
Sand Washing Equipment Working Principle
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
High-efficient Sand Washing Machine Applications：
This machine is widely used in washing, grading and dehydrating quartz sand in Sand stone factories, Construction site, Glass Factory and so on.
Industrial Sand Washing Equipment Features：
1. The machine is with high efficiency, reasonable structure, high capacity, low consumption and easy maintenance.
2. Drive Bearing device is separated from water and materials, which is greatly to avoid the bearing damaged due to soaking, touching sand and other pollutants.
3. Compared with the spiral sand washing machine, the loss of medium and fine sand as well as powder is minimal, so the grade and fineness modulus of washed building sand can meet the required standard.
Industrial impeller sand washing machine Technical Data：
model |
Wheel Diameter(mm) |
Feeding Size(mm) |
Capacity(t/h) |
Power(kw) |
Overall Dimension(mm) |
XSD1610 |
2600 |
40-80 |
7.5 |
3320X2125X1670 |
|
XSD3016 |
3000 |
80-160 |
15 |
4500X3206X3480 |
|
XSD3620 |
3600 |
150-300 |
18.5 |
4500X3206X3480 |
[production time]: November 2018
[Location]: South Africa
[Materials]: Pebbles
[Yield]: 450t / h
[Equipment configuration]: VSI sand making machine, vibrating feeder, impeller sand washing machine
DBM construction sand making equipment widely applied in mining, road building, bridge building and so on.
Please click here for more product information.
