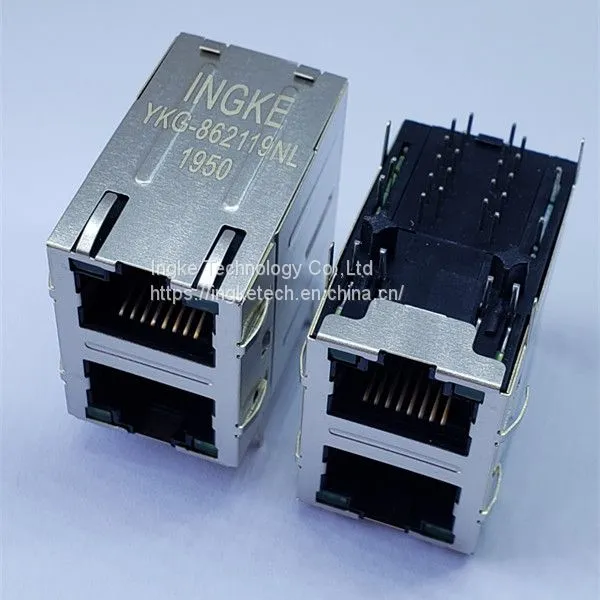

INGKE YKG-862119NL Direct Substitute TE 1840855-1 2 Port 1000 Base-T Through Hole RJ45 LAN Transformer
TE Part Number:1840855-1
Made in China:YKG-862119NL
Original Manufacturer:Ingke Technology
Supply Ability:5500K-PCS/Month
Product Category:Modular Connectors / Ethernet Connectors
Packaging:Tray
Connector Type:RJ45
Number of Ports:2
Number of Rows:2
Applications:10/100/1000 Base-T, AutoMDIX
Mounting Type:Through Hole
Orientation:90°Angle (Right)
Termination:Solder
LED Color:Green - Green
Number of Cores per Jack:8
Shielding:Shielded, EMI Finger
Features:Board Guide
Tab Direction:Up and Down
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40℃~85℃
Flammability Rating:UL 94 V-0
Contact Finish Thickness:30µin (0.76µm)
Shield Material:Copper Alloy
Housing Material:Thermoplastic
Manufacturer: Ingke Technology Co.,Ltd
Our service:
1).Free sample is available!
2).OEM & ODM orders are welcomed.
3).We offer after-sale service for 8 years.
Our Advantage:
(1).OEM factory for Connector more than 10 years.
(2).Cost reduction, lead time within 1 week, FREE samples.
(3).After sales services 24*7 to help you solve any kind of problems
(4).Factory in central province of China, the products has been improved in Mechanical properties, electrical properties and environmental performance for 10-15%,moreover the price are more competitive for 5-10% over the market
(5).Main advantage products: 10G ICM and M8 connector(Vendor of ST and Qualcomm)
Ingke Technology Mass production of the following models;
5-6605417-7 5-6605802-2 1840419-1 5-6605790-1 5-6605404-6 6605869-9 5-6605853-8 6605852-2 1840570-1 6610000-8 6-6610003-1 5-6610166-1 6610171-5 6610144-6 1-6610075-1 6610023-1 5-6610031-1 1-6610155-2 6-6610067-1 1840135-4 2301996-8 2301996-7 2301996-7 2301996-3 2301996-3 2301996-4 2301996-4 2301997-4 5-2301996-4 5-2301996-3 2301997-7 5-2301996-7 5-2301996-8 1-2301994-1 1-2301994-1 2301997-2
