Product Decription-----------------------------------------------------------------------
Material: 301
Thickness: 0.05-0.08mm
Width: 100-600mm
Length: according to customer's request
Surface: 2B
Xinrixin Metal Material (Shenzhen) Co.,Ltd produces high precision super thin metal electronic materials, which are primarily used in the 3C industry, including computer hard disk components, printer parts, disk drive parts, TFT-LCD frames, monitor parts, screen frames, mobile handset springs. Furthermore, such foils are widely used in automobile gaskets, engine components, home appliance parts, foil wraps for optical fiber cables, mini laser system parts, medical tubes, etc.Xinrixin can manufacture high quality stainless steel strips as thin as 0.02 - 1.5 mm with widths from 80 - 400 mm. The annual capacity exceeds 10,000 tons.
SUS301 Mechanical properties in the annealed condition
| Thickness(mm) | Width(mm) | Hardness(hv) | Tensile Strength(mpa) | Yield Strength(mpa) |
| 0.05-1.5 | >700 | >205 |
Chemical composition------------------------------------------------------------------
| Main Ingradient | Ni | Cr | Mn | C |
| Reference No. | 6.00/8.00 | 16.00/18.00 | ≤2.0 | ≤0.15 |
301 stainless steel common material list
| Item | SUS301-S | SUS301-1/4H | SUS301-1/2H | SUS301-3/4H | SUS301-H |
| Hardness | 250-290 | 310-360 | 370-420 | 430-460 | |
| Hardness Code | S | 1/4H | 1/2H | 3/4H | H |
| Thickness | Common thichness:0.1/0.12/0.15......1.5(Irregular thickness can be customized) | ||||
| Surface | 2B,2D,BA,HL,NO.3,NO.4,TR | ||||
301 ultar thin, super-hard material list
| Item | Hardness | Hardness Code | Thickness |
| SUS301-EH | 470-520 | EH | 0.08…0.03 |
| SUS301-SEH | >521 | SEH | 0.08…0.03 |
304 ultar thin, super-hard material list
| Item | Hardness | Hardness Code | Thickness |
| XRX-SUS304-EH | >410 | EH | 0.08…0.03 |
Surface Finished-------------------------------------------------------------------------------------------
| Surface Finished | Characteristics | Application |
| BA | Bright heat treatment after cold rolling. | Ktchen utenstil, Kitchen ware, Architectural purpose. |
| 2B | Finished by heat treatment, pickling after cold rolling, followed by skin pass line to more brighter and smooth surface. | General application medical instruments, Tableware. |
| NO.1 | Finished by hot-rolling, annealing and pickling, characterized by white pickled surface. | Chemical industry equipment, Industrial tanks. |
| 8K(Mirror) | A mirror-like reflective surface by polishing with finer abrasives over 800 mesh. | Refletor, Mirror, Interior- Exterior decoration for building. |
| Hair Line | Finished by continuous linear polishing. | Architecture industries, Escalators, Kitchen ware, Vehicles |

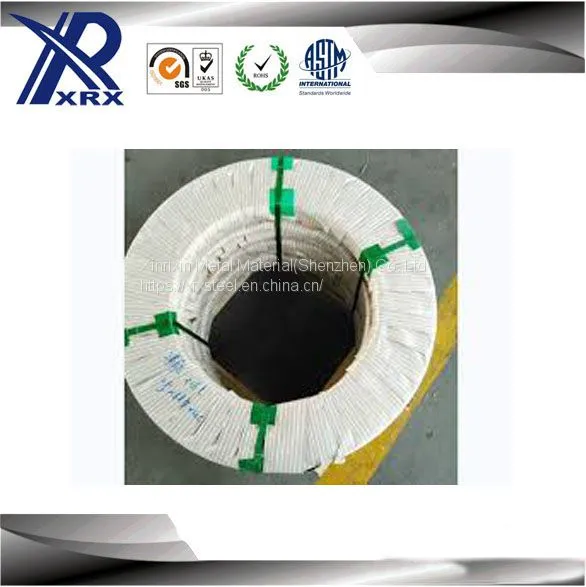

Packing&Shipping------------------------------------------------------------------------
|
Contact: Miss. Lumi Huang Tel.: 0086-755-86055888 Fax: 0086-755-82317372 Mobilephone/ 0086-13647118171 Whatsapp: 86 13277991216 |
