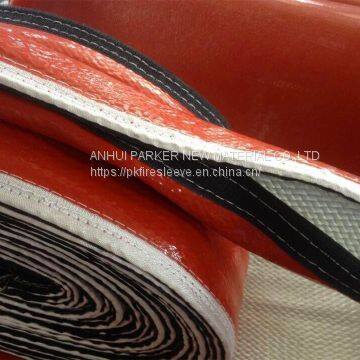

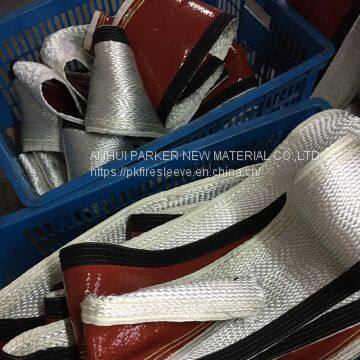

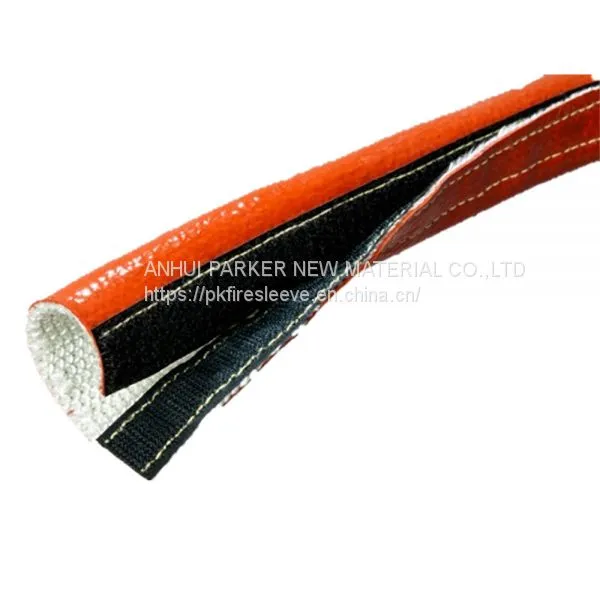

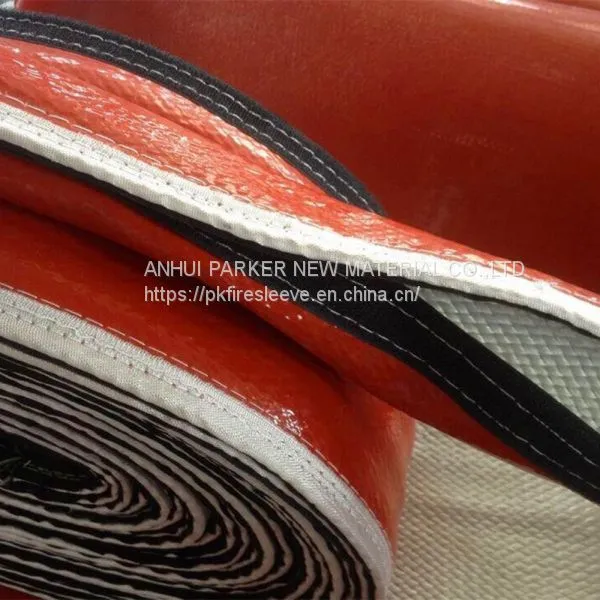

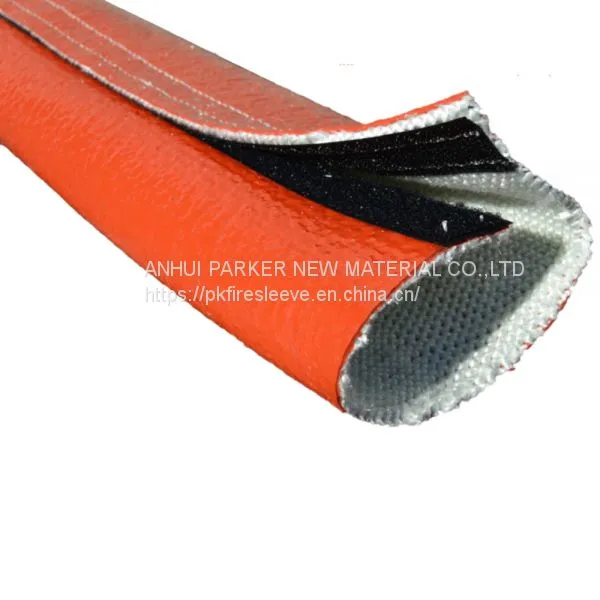

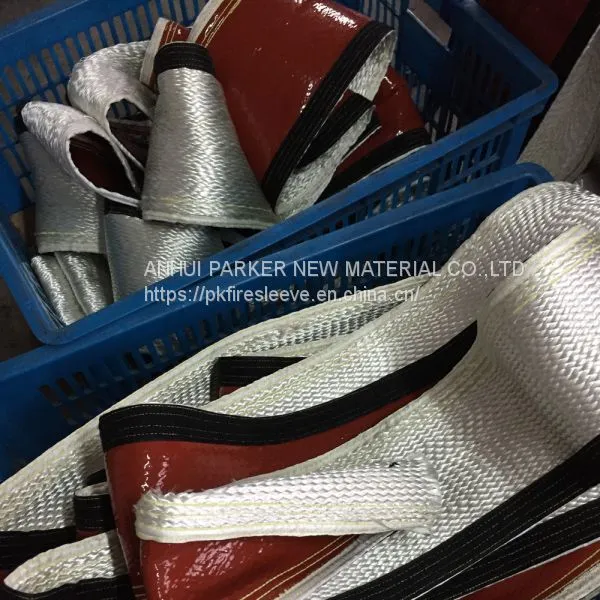

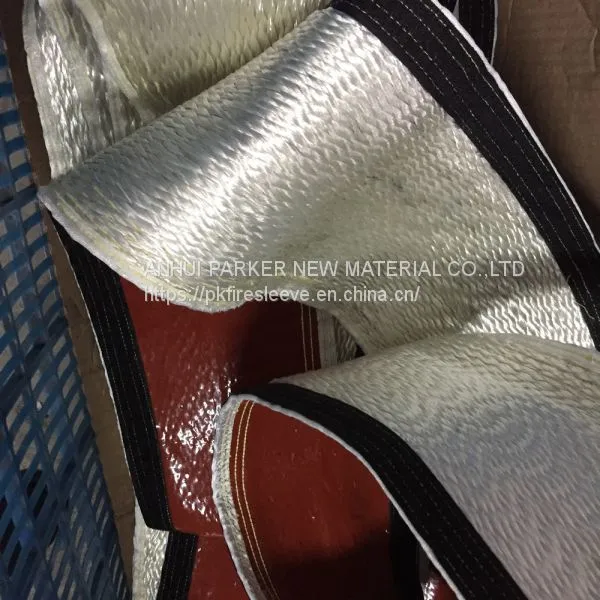

Silicone fiberglass Firesleeve with Velcro Hook Loop Closure is a high bulk glass fiber braided sleeve, heavily coated with silicone rubber. Using high temperature glass fiber thread, a flame retardant nylon hook-and-loop closure system is sewn internally.
Features:
This sleeve with the velcro system offers the chance to bundle and in store easily different cables and wires.
It offers excellent short term flame protection and great insulation properties for high temperature.
It resist to hydraulic fluids, oils and fuels and can protects against molten splash and flames.
It’s mainly used in steelworks, glass and ceramic industry, in railway and some other fields.
Application:
This heat protector sleeve is an optimal choice for bundling hoses, tubes and cables in a variety of hostile environments.
Specifications:
| Datasheet | |||||||||
| Part Number | Normal Inside diameter | Meter for spool | |||||||
| Inches | mm | Dash # | Meter | ||||||
| VFRS-19 | 3/4 | 19 | -12 | 20 | |||||
| VFRS-22 | 7/8 | 22 | -14 | 20 | |||||
| VFRS-25 | 1 | 25 | -16 | 20 | |||||
| VFRS-29 | 1 1/8 | 29 | -18 | 20 | |||||
| VFRS-32 | 1 1/4 | 32 | -20 | 20 | |||||
| VFRS-35 | 1 3/8 | 35 | -22 | 20 | |||||
| VFRS-38 | 1 1/2 | 38 | -24 | 20 | |||||
| VFRS-41 | 1 5/8 | 41 | -26 | 20 | |||||
| VFRS-44 | 1 3/4 | 44 | -28 | 20 | |||||
| VFRS-48 | 1 7/8 | 48 | -30 | 20 | |||||
| VFRS-51 | 2 | 51 | -32 | 20 | |||||
| VFRS-57 | 2 1/4 | 57 | 36 | 20 | |||||
| VFRS-60 | 2 2/5 | 60 | -38 | 20 | |||||
| VFRS-64 | 2 1/2 | 64 | -40 | 20 | |||||
| VFRS-67 | 2 5/8 | 67 | -42 | 20 | |||||
| VFRS-70 | 2 3/4 | 70 | -44 | 20 | |||||
| VFRS-73 | 2 7/8 | 73 | -46 | 20 | |||||
| VFRS-76 | 3 | 76 | -48 | 20 | |||||
| VFRS-83 | 3 1/4 | 83 | -52 | 20 | |||||
| VFRS-89 | 3 1/2 | 89 | -56 | 20 | |||||
| VFRS-95 | 3 3/4 | 95 | -60 | 20 | |||||
| VFRS-102 | 4 | 102 | -64 | 20 | |||||
| VFRS-114 | 4 1/2 | 114 | -72 | 20 | |||||
| VFRS-121 | 4 3/4 | 121 | -76 | 20 | |||||
| VFRS-127 | 5 | 127 | -80 | 20 | |||||
| VFRS-133 | 5 1/4 | 133 | -84 | 20 | |||||
| VFRS-140 | 5 1/2 | 140 | -88 | 20 | |||||
| VFRS-146 | 5 3/4 | 146 | -92 | 20 | |||||
| VFRS-152 | 6 | 152 | -96 | 20 | |||||
| VFRS-159 | 6 1/4 | 159 | -100 | 20 | |||||
| VFRS-165 | 6 1/2 | 165 | -104 | 20 | |||||
| VFRS-171 | 6 3/4 | 171 | -108 | 20 | |||||
| VFRS-178 | 7 | 178 | -112 | 20 | |||||
| VFRS-184 | 7 1/4 | 184 | -116 | 20 | |||||
| VFRS-191 | 7 1/2 | 191 | -120 | 20 | |||||
| VFRS-197 | 7 3/4 | 197 | -124 | 20 | |||||
| VFRS-203 | 8 | 203 | -128 | 20 | |||||
| VFRS-210 | 8 1/4 | 210 | -132 | 20 | |||||
| VFRS-216 | 8 1/2 | 216 | -136 | 20 | |||||
| VFRS-222 | 8 3/4 | 222 | -140 | 20 | |||||
| VFRS-229 | 9 | 229 | -144 | 20 | |||||
| VFRS-235 | 9 1/4 | 235 | -148 | 20 | |||||
| VFRS-241 | 9 1/2 | 241 | -152 | 20 | |||||
| VFRS-248 | 9 3/4 | 248 | -156 | 20 | |||||
| VFRS-254 | 10 | 254 | -160 | 20 | |||||
| VFRS-260 | 10 1/4 | 260 | -164 | 20 | |||||
| VFRS-267 | 10 1/2 | 267 | -168 | 20 | |||||
| VFRS-273 | 10 3/4 | 273 | -172 | 20 | |||||
| VFRS-279 | 11 | 279 | -176 | 20 | |||||
| VFRS-286 | 11 1/4 | 286 | -180 | 20 | |||||
| VFRS-292 | 11 1/2 | 292 | -184 | 20 | |||||
| VFRS-298 | 11 3/4 | 298 | -188 | 20 | |||||
| VFRS-305 | 12 | 305 | -192 | 20 | |||||
| Technical Datasheet | |||||
| Material | Silicone, fiberglass | ||||
| Working temperature | -40℃ - +260℃ | ||||
| Flammability | VW-1 | ||||
| Melting point | +1650℃ | ||||
| Standard Color | Iron oxide red | ||||
| MOQ | 20 meter each size | ||||
| Cutting tool | Scissors | ||||
Notes:
Special thickness for firesleeve velcro made by firesleeve blanket on request
Special length or packing on request.
Customs LOGO upon request.
