Self adhesive heat preservation nail stainless steel porous heat preservation nail high quality air conditioning heat preservation nail

Mesh insulation nail

Porous insulation nail

Adhesive insulation nail

Stainless steel insulation nail

Carbon steel insulation nail

Aluminum insulation nail

Copper insulation nail

Metal insulation nail

Aluminum is used for fixed air conditioning insulation rock wool. This product is made of high quality galvanized sheet and aluminum wire by riveting. The bottom plate 13 is evenly distributed. Easy to exude glue. So as to make the paste more firm. A nail can point out. Thus, the insulating cotton is easier to pass through. Convenient for construction. It is widely used in the anchorage of wall insulation houses in building decoration. It has good anti-aging, temperature sudden changes, corrosion resistance, high heat resistance, high bearing capacity, high pressure bearing and good tensile properties. It is not easy to deform after loading, moisture-proof, slow vibration, and good insulation performance. It is simple and convenient to install, without any special installation tools, durable, efficient and energy-saving.

Stainless steel thermal insulation nail products are widely used in the present, and the products have good application effect. When applied, they can play a good anti-aging effect, and resist temperature sudden change, corrosion resistance and high temperature resistance. There are many stainless steel insulation nails for building decoration, chemical engineering or special environment construction, which can play a good role in anti-corrosion and heat preservation

Brush glue mesh aluminum insulation nails, self-adhesive aluminum insulation nails, etc. Hejian Xinjie insulation nail factory is a company specializing in production and sales of insulation nails. Our products include butt welding nails, round head butt welding nails, coated mesh nails, double-sided adhesive self-adhesive nails, high-temperature insulation stainless steel hooks Our products are widely used in many fields, such as hull insulation, air duct insulation, KTV, hotel insulation, power plant boiler insulation, valve pipe insulation, etc

Porous mesh nails are widely used in foreign building insulation or air conditioning insulation. The bottom plate of the porous nail is made of 0.5mm-thick galvanized plate or stainless steel plate by punching. Generally, there are up to 45 holes. Arrange evenly. Nails are made of aluminum wire or stainless steel wire. The nail diameter is generally 2.6mm-3.0mm. This product is widely used in foreign roof insulation fixed insulation cotton. And the front is often fixed with a locking plate. There are three types of locking plates: square, round and general hat.

Main classification of metal insulation nails

Air conditioning insulation nail

The air conditioning insulation nail is made of high-quality galvanized plate and aluminum nail by riveting. The thickness of the bottom plate is about 0.3mm. The diameter is generally 2.1cm, 2.4cm.3.5cm or 5cm. The bottom plate has 9 or 13 holes to facilitate the penetration and adhesion of glue. The diameter of aluminum nail is generally about 1.5mm, and the nail head is pointed out to facilitate the penetration of rock wool. The length is determined by the thickness of rock wool plate

Electric hook and nail

The power hook nail is composed of high-quality low-carbon steel nail and galvanized plate lock piece. The low-carbon steel nail is usually 2.5cm long and welded on the boiler, with a diameter of 3mm.4mm.6mm. The nail head is pointed out to facilitate penetration of rock wool plate, with a thickness of about 0.5mm and a diameter of 3cm.4cm.5cm. According to the hole diameter of hexagonal net used in the outer layer, there is a hole in the middle of the lock piece, and lotus petal type opening is around the hole, so as to The utility model is convenient for the hook nail to lock the rock wool more firmly

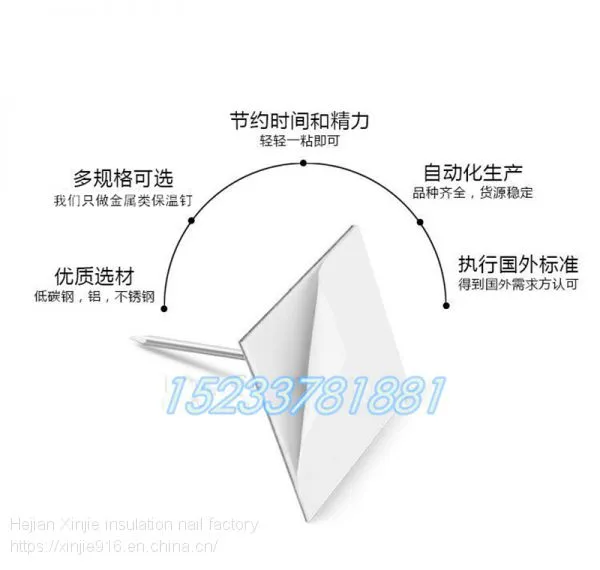

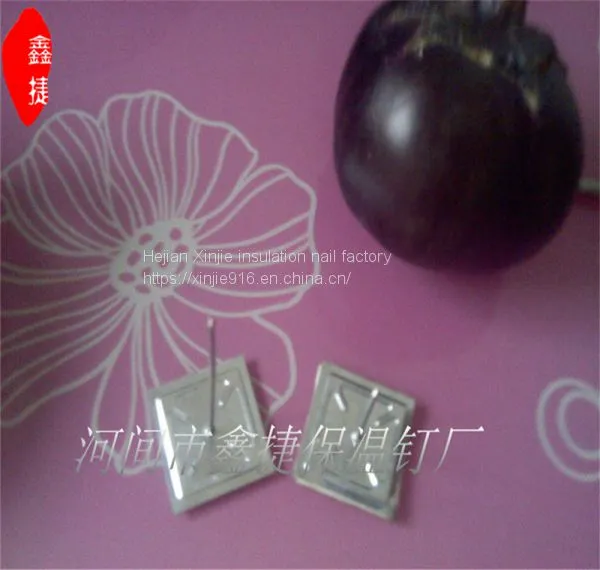

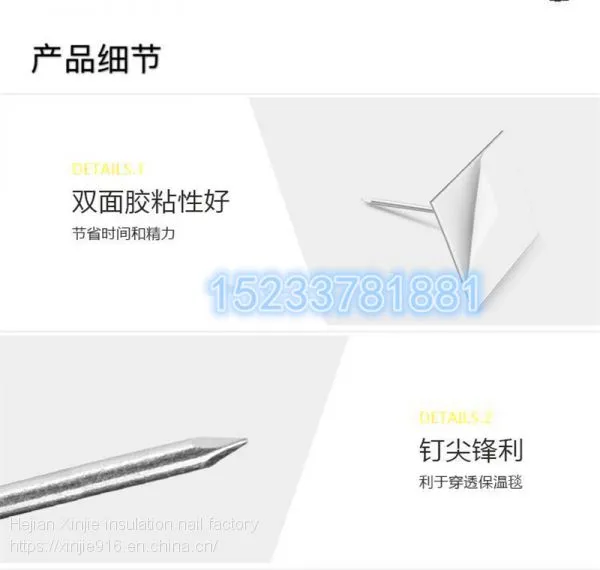

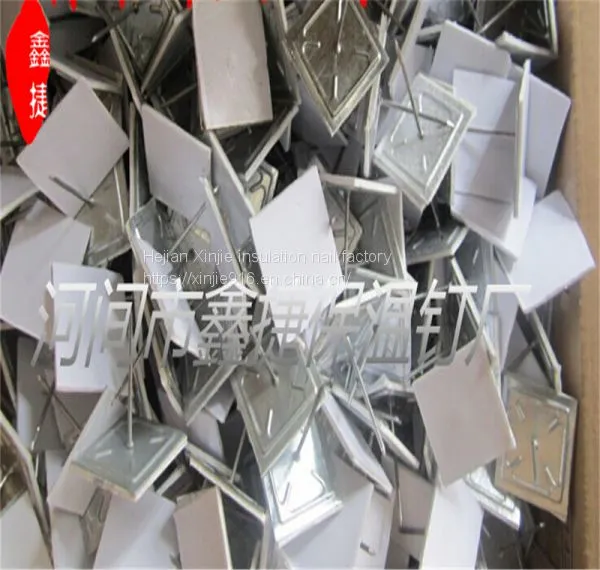

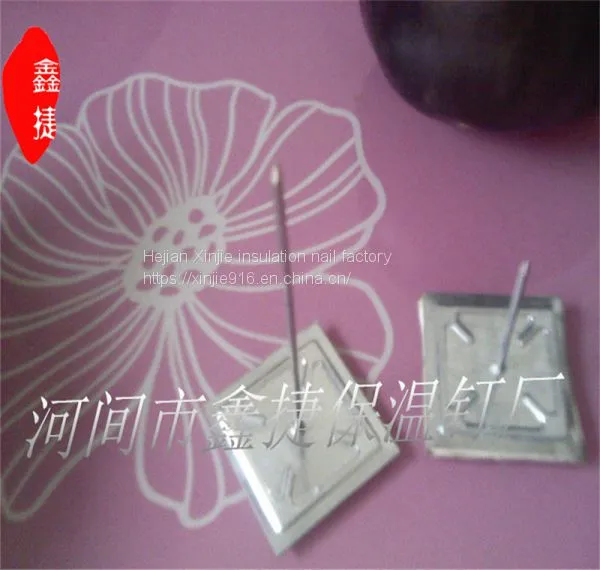

Self adhesive insulation nail

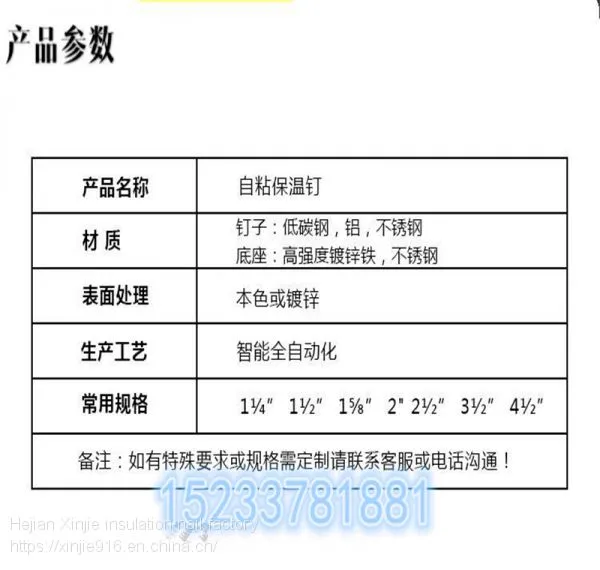

Self adhesive insulation nail is also known as self adhesive insulation nail. Its advantage is that it is convenient for workers to construct, simple to bond and time-saving. The thickness of galvanized sheet is 0.5mm-0.6mm. The common specification abroad is that the side length of the base plate is the same as that of the nail. Generally, if the side length of the base plate is 3.8cm, then the nail will be made into 3.8cm long. The nail is made of stainless steel or aluminum wire.

Welding insulation nail

The material is a new product of Air Conditioning decoration and heat preservation material, which is made of galvanized plate and carbon steel wire by mechanical processing. Its advantages: simple, labor-saving, labor-saving, no rust, never falling off, no pollution. Air conditioning engineering insulation material fixed new product welding insulation nail new technology: air duct insulation nail welding insulation technology. Traditional type: the popular method of air duct insulation is to use adhesive to stick the insulation nail to the surface of air duct first, then cut and push the insulation board after air drying, use the insulation nail and fix it, and use pressure-sensitive adhesive tape for bonding. This process not only requires high environment, but also wastes the insulation materials. After a little longer time, the insulation nail will fall off due to the aging of the adhesive Thus, the heat preservation is not strict and a large amount of cold or heat is wasted.

Porous insulation nail

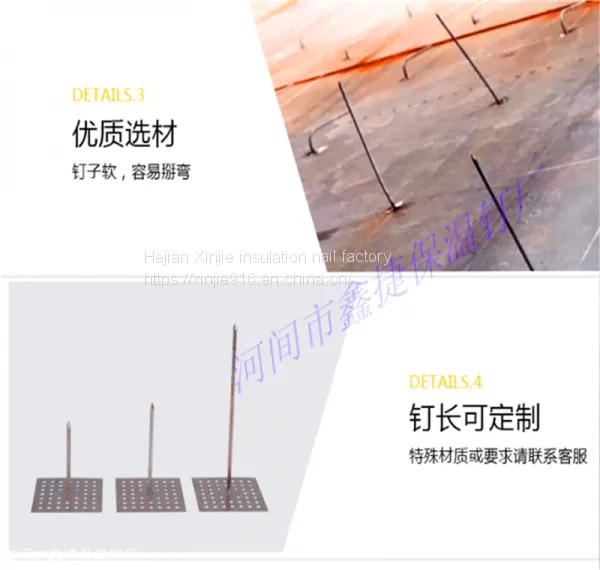

Porous nails are widely used in foreign building insulation or air conditioning insulation. The bottom plate of the porous nail is made of 0.5mm-thick galvanized plate or stainless steel plate by punching. Generally, there are up to 45 holes. Arrange evenly. Nails are made of aluminum wire or stainless steel wire. The nail diameter is generally 2.6mm-3.0mm. This product is widely used in foreign roof insulation fixed insulation cotton. And the front is often fixed with a locking plate. There are three types of locking plates: square, round and general hat

Thermal insulation nail

1. Material composition: the heat preservation striker consists of two parts: striker and locking plate. The striker is made of low carbon steel or stainless steel, and then galvanized or copper-plated on the surface. The locking plate is made of galvanized plate or copper-plated plate through stamping. Application: heat preservation rivet is mainly used for heat preservation welding of ship pipeline, air conditioning and ventilation pipeline, offshore oil platform, etc. advantages: high quality material, stable quality, firm welding, high precision. The company strictly controls the performance of the material to ensure good welding performance, meet the requirements of strength and meet the requirements of cold heading forming process. According to the customer's own specifications and requirements, we can manufacture all kinds of special shapes and materials. Through experiments and quality assurance system, the welding performance and reliability of products are guaranteed.
