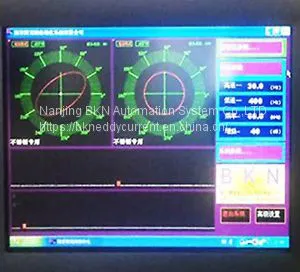

Help CenterBKNET-0102 Welded Pipe Eddy Current Flaw Detector
Related Products
-
Connecting Rod Hardness Vortex Sorting Machine LGYDFX-01NegotiableMOQ: 1 Piece -
GTET-02 Cylinder Liner Eddy Current Testing MachineNegotiableMOQ: 1 Piece
-
EDM NotchNegotiableMOQ: 1 Piece
-
RQ-120-B Automatic CNC EDM NotchNegotiableMOQ: 1 Piece
-
Magnetic Flux Leakage Testing EquipmentNegotiableMOQ: 1 Piece
Eddy current testing of welds is the use of eddy current technology to test the welded pipe, this type of testing is based on the premise of lossless. At the same time, we need to be clear that the welded pipe is, in general, the steel pipe that we usually say, which is a welded steel pipe.
Eddy current weld testing is a non-destructive testing technique for detecting component defects by using the principle that the eddy current induced by the AC electromagnetic coil on the surface of the metal member encounters a defect. The oscillating current is generated in the conductive member by the excitation coil by the principle of electromagnetic induction, and the amount of change in the eddy current is measured by the detecting coil, thereby obtaining information on the component defect.
Eddy current testing is a non-destructive testing technique in which an alternating current electromagnetic coil induces eddy currents on the surface of a metal member. It is suitable for the detection of defects in conductive materials, including ferromagnetic and non-ferromagnetic metal materials.
BKNET-01\02 NDT weld testing equipment is used for on-line and off-line inspection of welded pipes. It has high sensitively to axial defects such as unwelded welding, dark spots and open cracks. In the production process, products are caused by welder failure. Slow and long-term injuries can be reliably detected.
BKNET-0102 Welded Pipe Eddy Current Flaw Detector performance
Detection channel |
Double channel |
Detection speed |
1～500m/min(online) |
Frequency range |
100Hz-1MHz |
Gain |
0～99dB，step 0.1dB |
Phase rotation |
0-360 °step1 ° |
High pass |
0.1Hz～650Hz |
Low pass |
1Hz～10000Hz |
BKNET-0102 Welded Pipe Eddy Current Flaw Detector Features:
High precision end and end-to-tail signal removal
High precision real-time, delayed alarm output
Fast digital／analog electronic balance
Memory track delay blanking function
Non-equal amplitude phase／amplitude alarm domain
Remote automatic help system
Synchronous alarm output for internal and external clock control
BKN is an eddy current testing benchmark enterprise and has long been committed to the development and production of bearing hardness and crack eddy current screening equipment. If you want to know more details or want a quotation, just feel free to contact us!
