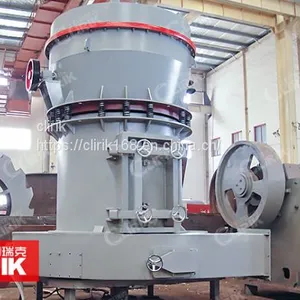

China Stone Grinding Machine, Stone Grinder YGM7815
US$ 10000 - 55000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
clirik
Place of Origin:
China
Model Number:
YGM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days
Related Products
-
5-47 Micron HGM100A Stone Powder MachineUS$ 42000 - 180000MOQ: 1 Set -
Fly Ash [coal Ash] Stone Mills for SaleUS$ 42000 - 180000MOQ: 1 Set
-
White Carbon Black Stone MillsUS$ 42000 - 180000MOQ: 1 Set
-
Diatomace Earth Stone MillsUS$ 42000 - 180000MOQ: 1 Set
-
Carbon Black Processing MachineUS$ 42000 - 180000MOQ: 1 Set
Brand Name
clirik
Place of Origin
China
Model Number
YGM
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
The description of China stone grinding machine, stone grinder YGM7815:
The finished size:0.613-0.033mm.The capacity:1-3t/h
China stone grinding machine, stone grinder YGM7815 is suitable for processing various non-flammable and non-explosive mineral materials with Moh’s hardness less than 9.3 and humidity less than 6%, it is widely used in the fields of metallurgy, construction, chemical industry, mining, highway construction etc,. The granularity of the finished powder size can be adjusted between 50 and 325 mesh (315-45 micron). Examples of processing materials include quartz, feldspar, barite, calcite carbonate, limestone, talc, ceramic, iron ore, carborundum, bauxite, rock phosphate, coal and other materials, total about 400 kinds of materials.
Working Principle of China stone grinding machine, stone grinder YGM7815 :
Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; the airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.
Working Features of China stone grinding machine, stone grinder YGM7815:
China stone grinding machine, stone grinder YGM7815 has the similar working principle as Raymond mill, but its grinding device is fixed with 1000-1500kg pressure springs. When the machine works the grinding roller , which under the action of high pressure spring and centrifugal force, rolls close up to grinding ring, its rolling pressure is 1.2 times higher than that of Raymond mill given an identical condition and its capacity increase 20% to 30%; When the grinding roller and grinding ring, stable capacity and fineness are guaranteed.
Detail Specification of China stone grinding machine, stone grinder YGM7815:
Type |
Roller |
Max. feeding size(mm) |
Fineness of product(mm) |
Output (t/h) |
Power of machine(KW) |
Size(mm) |
||
No. |
Dimension(mm) |
Height(mm) |
||||||
YGM7815 |
3 |
260 |
150 |
15 |
0.613-0.033 |
1-3 |
18.5 |
4300*3500*5100 |
YGM8314 |
3 |
270 |
140 |
20 |
0.613-0.033 |
1.2-4.6 |
22 |
5300*4100*5200 |
YGM9517 |
4 |
310 |
170 |
25 |
0.613-0.033 |
2.1-5.6 |
37 |
7100*5900*7900 |
YGM4121 |
5 |
410 |
210 |
30 |
0.613-0.033 |
2.8-10.5 |
75 |
9200*7250*9700 |
MTM1600 |
6 |
440 |
270 |
35 |
0.613-0.033 |
5-20 |
132 |
12550*5700*8350 |
Note: This specification is just referencing, any changes are subject to the products.
