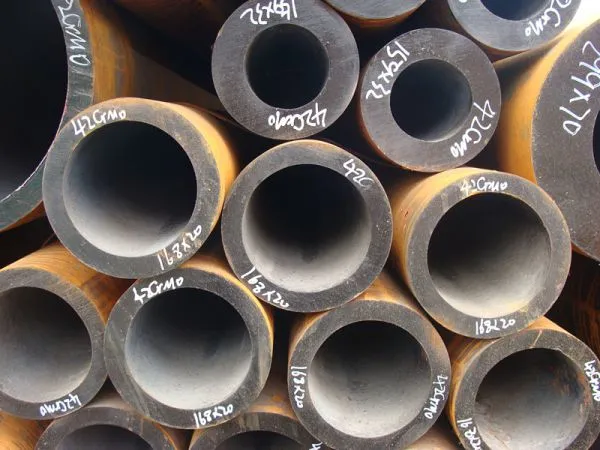

Sewage Transport Plastic Caps (small Od) Oil Well Drilling Tubing Pipe

Stainless Steel Seamless Pipe is a long steel which has hollow section and no seams. It is produced by boring holes on solid steel billets or solid pipe billets, and do Hot-rolling, cold-rolling or cold-drawing later. It is Widely used for the pipings for fluid transfer, such as petrol, natural gas, water, coal gas, steam, etc. In addition, as the weight is light when in the same bending and tensile strength, it's also widely used for manufacturing machinery and construction structural components. Usually etc.

Stainless Steel Seamless Round Pipe Dimension Table


Main Drade：201, 201B,201H,301,302,303, 304,304L,304H,309S,309H,310S,316,316L,317,317L,347,904L

Production Standard: BS EN ISO 1227-1997, EN 10297-2, EN10216-5, DIN17204-1990,
DIN17458-1985, DIN2391-1,GB13296-1992,GB14976-2002,GB14975-2002,
GB/T3090-2000, GB/T5777-1996, GB/T21833, GB/T7735-1995, GB/T21833,
GJB2296-1995,ASTM A269,A270,A312, A511, A376, A789,JIS G3446、
JISG3463, JISG3467

Finish: Pickled, Blasting, Polish (200-800#)

Product Name
API SPEC. 5CT Seamless Casing Pipe, Steel Grade J55,N80,P110,PH-6 Petroleum Casing and Tubing in oil and gas
Material
GR.B,ST52, ST35, ST42, ST45,X42, X46, X52, X56, X60, X65, X70,SS304, SS316 etc.
Size
OD
114.30mm -508.00mm
Wall Thickness
5.21mm-16.13mm
Length
R1:6.1-7.32m;R2:8.53-9.75m;R3:11.58-12.80m;Less than 12m , or as
buyer's requirements
Standard
API5L , ASTM A106 Gr.B, ASTM A53 Gr.B,ANSI A210-1996, ANSI B36.10M-2004 , ASTM
A1020-2002,ASTM A179-1990 ,BS 3059-2,DIN 17175 ,DIN 1630 ,DIN 2448
Certificates
API5CT, ISO 9001:2008
Surface Treatment
black paint, varnish, oil, galvanized, anti corrosion coatings
Marking
Standard marking, or according to your request.
Pipe Ends
Under 2 inch plain end. 2 inch and above Beveled. Plastic caps (small OD) ,Iron protector
(large OD)
Packaging
Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End with Plastic caps; wooden cases.Or as
buyer’s requirements.
Test
Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size
Inspection, hydraulic testing , X-ray Test.
Application
oil pipe; gas pipe;water pipe; sewage Transport
Advantages
1.Reasonable price with excellent quality
2.Abundant stock and prompt delivery
3.Rich supply and export experience, sincere service
4.Reliable forwarder, 2-hour away from port.
Port of Shipment
Tianjin Port,Tianjin, China
