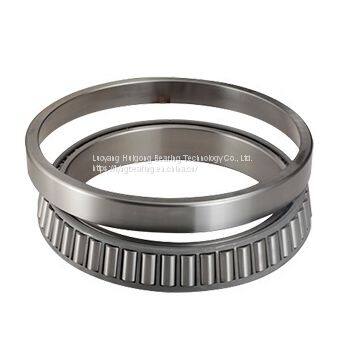

The taper roller bearing is a separable type bearing which inner components (consists of rollers, cage, and inner ring) can be separated from outer ring. Therefore, it can be very easily installed onto the journal and bearing housing.
Tapered roller bearings are commonly used for moderate speed, heavy duty applications where durability is required such as machine tool spindles, rolling mills, mining equipment, metallurgy industry, plastics makeing machinery and other industries.
CHG® is a leading manufacturer of quality ball, cylindrical and tapered roller bearings. We offer a variety of configurations to tapered roller bearings such as single-row, double-row and four-row with more than 150 different models in both inch and metric sizes. Tapered roller bearings are made of high carbon chrome steel with many in-stock and ready to ship. Any requirement please contact lyhg@lyhgbearing.com for free price.
Boundary dimensions | Basic load ratings | Designations | Mass | Limiting speeds | |||||||||
mm | kN | Current | Original | kg | r/min | ||||||||
d | D | T | B | C | rmin | r1min | Cr | Cor | Grease | Oil | |||
150 | 270 | 77 | 73 | 60 | 4 | 3 | 718 | 1200 | 32230 | 7530E | 18.2 | 1200 | 1700 |
320 | 114 | 108 | 90 | 5 | 4 | 1110 | 1580 | 32330 | 7630 | 37.1 | 950 | 1400 | |
160 | 240 | 51 | 51 | 38 | 3 | 2.5 | 420 | 735 | 32032 | 2007132E | 7.7 | 1200 | 1700 |
340 | 75 | 68 | 58 | 5 | 4 | 765 | 960 | 30332 | 7332E | 28.4 | 1000 | 1500 | |
340 | 121 | 114 | 95 | 5 | 4 | 1210 | 1770 | 32332 | 7632 | 48.3 | 950 | 1400 | |
170 | 230 | 32 | 30 | 23 | 3 | 3 | 200 | 400 | 70DB170 | － | 3 | 1200 | 1700 |
310 | 91 | 86 | 71 | 5 | 4 | 835 | 1320 | 32234 | 7534E | 27.6 | 1000 | 1500 | |
360 | 80 | 72 | 62 | 5 | 4 | 950 | 1400 | 30334 | 7334E | 35 | 950 | 1400 | |
360 | 127 | 120 | 100 | 5 | 4 | 975 | 1764 | 32334 | 7634 | 58.3 | 1000 | 1300 | |
180 | 280 | 64 | 60 | 52 | 3 | 2.5 | 540 | 890 | 32036X2 | 2007136 | 13 | 1100 | 1600 |
280 | 64 | 64 | 48 | 3 | 2.5 | 569 | 950 | 32036 | 2007136E | 14 | 1100 | 1600 | |
320 | 57 | 52 | 43 | 5 | 4 | 610 | 912 | 30236 | 7236E | 17.8 | 1000 | 1500 | |
320 | 91 | 86 | 71 | 5 | 4 | 998 | 1727 | 32236 | 7536E | 29.8 | 950 | 1400 | |
190 | 260 | 45 | 42 | 36 | 2.5 | 2 | 292 | 580 | 32938X2 | 2007938 | 6.52 | 1000 | 1400 |
290 | 51 | 46 | 40 | 3 | 2.5 | 435 | 365 | － | 7138 | 10.5 | 1000 | 1500 | |
290 | 64 | 60 | 52 | 3 | 2.5 | 502 | 932 | 32038X2 | 2007138 | 14.2 | 950 | 1300 | |
290 | 64 | 64 | 48 | 3 | 2.5 | 520 | 950 | 32038 | 2007138E | 15.6 | 950 | 1300 | |
340 | 97 | 92 | 75 | 5 | 4 | 1117 | 1919 | 32238 | 7538E | 36.1 | 900 | 1300 | |
200 | 280 | 51 | 48 | 41 | 3 | 2.5 | 345 | 710 | 32940X2 | 2007940 | 8.86 | 950 | 1300 |
280 | 51 | 51 | 39 | 3 | 2.5 | 460 | 950 | 32940 | 2007940E | 9.5 | 950 | 1300 | |
310 | 70 | 66 | 56 | 3 | 2.5 | 575 | 1120 | 32040X2 | 2007140 | 17.9 | 900 | 1200 | |
310 | 70 | 70 | 53 | 3 | 2.5 | 650 | 1300 | 32040 | 2007140E | 18.9 | 900 | 1200 | |
360 | 64 | 58 | 48 | 5 | 4 | 765 | 1140 | 30240 | 7240E | 25.4 | 900 | 1300 | |
360 | 104 | 98 | 82 | 5 | 4 | 1090 | 1750 | 32240 | 7540E | 43.2 | 900 | 1300 | |
205 | 485 | 117.5 | 100 | 75 | 4 | 4 | 1400 | 2020 | 30641 | 7841E | 95 | 850 | 1200 |
210 | 420 | 90 | 81 | 67 | 6 | 5 | 1280 | 1910 | － | 7342X2 | 56 | 850 | 1200 |
220 | 300 | 51 | 48 | 41 | 3 | 2.5 | 425 | 855 | 32944X2 | 2007944 | 10.2 | 900 | 1200 |
340 | 76 | 72 | 62 | 4 | 3 | 702 | 1330 | 32044X2 | 2007144 | 22.2 | 800 | 1000 | |
340 | 76 | 76 | 57 | 4 | 3 | 750 | 1350 | 32044 | 2007144E | 24.4 | 800 | 1000 | |
400 | 72 | 65 | 54 | 4 | 3 | 810 | 1150 | 30244 | 7244E | 35.4 | 850 | 1200 | |
400 | 114 | 108 | 90 | 4 | 3 | 1320 | 2210 | 32244 | 7544E | 48.1 | 800 | 1100 | |
240 | 320 | 51 | 48 | 41 | 3 | 2.5 | 390 | 860 | 32948X2 | 2007948 | 10.8 | 800 | 1000 |
360 | 76 | 72 | 62 | 4 | 3 | 710 | 1420 | 32048X2 | 2007148 | 23.8 | 700 | 900 | |
360 | 76 | 76 | 57 | 4 | 3 | 850 | 1560 | 32048 | 2007148E | 20.4 | 700 | 900 | |
440 | 127 | 120 | 100 | 4 | 4 | 1630 | 2730 | 32248 | 7548 | 81.3 | 750 | 1000 | |
260 | 360 | 63.5 | 60 | 52 | 3 | 2.5 | 525 | 1150 | 32952X2 | 2007952 | 19.2 | 700 | 900 |
360 | 63.5 | 63.5 | 48 | 3 | 2.5 | 550 | 1300 | 32952 | 2007952E | 20 | 700 | 900 | |
400 | 87 | 82 | 71 | 5 | 4 | 902 | 1810 | 32052X2 | 2007152 | 36.9 | 670 | 850 | |
400 | 87 | 87 | 65 | 5 | 4 | 1010 | 1850 | 32052 | 2007152E | 37 | 670 | 850 | |
540 | 114 | 102 | 85 | 6 | 6 | 2014 | 2898 | 30352X2 | 7352 | 111 | 670 | 900 | |
270 | 420 | 87 | 87 | 65 | |||||||||
