We have pir sensor for sale!

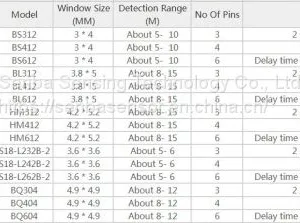

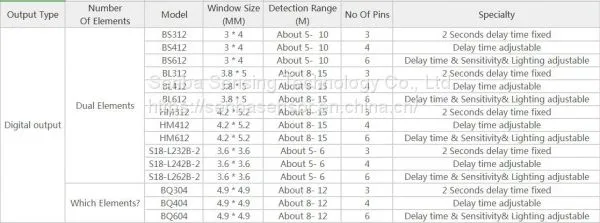

Output Type | Number Of Elements | Model | Window Size (MM) | Detection Range (M) | No Of Pins | Specialty |
Digital output | Dual Elements | BS312 | 3 * 4 | About 5- 10 | 3 | 2 Seconds delay time fixed |
BS412 | 3 * 4 | About 5- 10 | 4 | Delay time adjustable | ||
BS612 | 3 * 4 | About 5- 10 | 6 | Delay time & Sensitivity& Lighting adjustable | ||
BL312 | 3.8 * 5 | About 8- 15 | 3 | 2 Seconds delay time fixed | ||
BL412 | 3.8 * 5 | About 8- 15 | 4 | Delay time adjustable | ||
BL612 | 3.8 * 5 | About 8- 15 | 6 | Delay time & Sensitivity& Lighting adjustable | ||
HM312 | 4.2 * 5.2 | About 8- 15 | 3 | 2 Seconds delay time fixed | ||
HM412 | 4.2 * 5.2 | About 8- 15 | 4 | Delay time adjustable | ||
HM612 | 4.2 * 5.2 | About 8- 15 | 6 | Delay time & Sensitivity& Lighting adjustable | ||
S18-L232B-2 | 3.6 * 3.6 | About 5- 6 | 3 | 2 Seconds delay time fixed | ||
S18-L242B-2 | 3.6 * 3.6 | About 5- 6 | 4 | Delay time adjustable | ||
S18-L262B-2 | 3.6 * 3.6 | About 5- 6 | 6 | Delay time & Sensitivity& Lighting adjustable | ||
Which Elements? | BQ304 | 4.9 * 4.9 | About 8- 12 | 3 | 2 Seconds delay time fixed | |
BQ404 | 4.9 * 4.9 | About 8- 12 | 4 | Delay time adjustable | ||
BQ604 | 4.9 * 4.9 | About 8- 12 | 6 | Delay time & Sensitivity& Lighting adjustable |
On a digital smart integrated circuit chip, a digital smart integrated circuit converts a signal into a 15-bit ADC Digital signal, when the digital PIR signal exceeds the selected digital threshold, there will be a timed REL level input Out. The OEN enable can be used to automatically control the REL output or through the digital pir motion sensor. Sensitivity and time. The inter-parameter is set by a resistor, corresponding to the corresponding value, and its voltage is converted to have 7 bits. The digital threshold of the resolution. All signal processing is done on the chip.
Senba Sensing Technology Co.,Ltd., was founded in 2005, with the focus on producing the top quality photoelectric components. If you want to know more details about senba sensor, just feel free to contact us!
