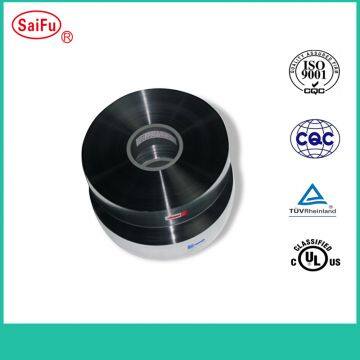

Help CenterHigh Square Resistance Film for DC Link Filter Capacitor Use
Related Products
-
Slope Resistance Film for DC Link Filter Capacitor UseUS$ 5 - 7MOQ: 1 Kilogram -
High Square Resistance Film for DC Link Capacitor UseUS$ 5 - 15MOQ: 1 Kilogram
-
Metallized Film for Capacitor UseUS$ 5 - 15MOQ: 1 Kilogram
-
Metallized Polypropylene FilmUS$ 5 - 15MOQ: 1 Kilogram
-
Metallized Polyester FilmUS$ 5 - 15MOQ: 1 Kilogram
Metallized Film for Capacitor Use
Type Of Metallized Film
1.Aluminum metalized polypropylene film.
2.Aluminum-Zinc alloy metalized polypropylene film.
3.Aluminum-Zinc alloy metalized polypropylene film with heavy edge.
4.Aluminum metalized polyester film.
5.Aluminum-Zinc alloy metalized polyester film.
6.Aluminum-Zinc alloy metalized polyester film with heavy edge.
Types of Metallized Layer
Detail Image
Specifications of Metallized film
Cores:
Material:Plastic
Width:Film Slit Width±0.3mm
Inner Diameter:75mm +1.0mm/-0.5mm
Specifications of MPP Film:
| Properties | Unit | Typical value |
| Density | g/cm3 | 0.905±0.005 |
| Thickness | µm | 1.9~12 |
| Tensile Strength |
Longitudinal MD (MPa) |
≥100 |
| Elongation at Break |
Longitudinal MD (%) |
20~200 |
| Elastic modulus |
Longitudinal MD (MPa) |
2800 |
| Heat Shrinkage |
Longitudinal MD (%) |
≤5 ( 120°C, 10min) |
| Wetting tension | mN/m | 38 (Corona treated side) |
| Surface roughness | µm | 0.08 |
| Melting point | ºC | 172 |
| Volume resistivity | Ω.m | >1015 |
| Break-dowm voltage | V/µm | ≥350 ( 23°C, DC ) |
| Dielectric constant | 2.2 (20ºC,1KHz) | |
| Dissipation Factor | ≤4×10-4 (20ºC,1KHz ) | |
| RC | ΩF | ≥5×104 |
Specifications of MPET Film:
| Properties | Unit | Typical value | ||
| Density | g/cm3 | 1.4 | ||
| Thickness | µm | 2.0~12 | ||
| Tensile Strength | Longitudinal MD(MPa) | ≥84 | ≥108 | ≥120 |
| Elongation at Break |
Longitudinal MD (%) |
≥22 | ≥33 | ≥44 |
| Elastic modulus |
Longitudinal MD (MPa) |
3500 | ||
| Break-dowm voltage | V/µm |
≥200 ( 23°C, DC ) |
≥250 ( 23°C, DC ) |
|
| Heat Shrinkage |
Longitudinal MD (%) |
≤2.5 ( 150°C, 10min) | ||
| Surface roughness | µm | 0.095 | ||
| Melting point | ºC | 256 | ||
| Volume resistivity | Ω.m | >1015 | ||
| Dielectric constant | 3.2 | |||
| Dissipation Factor | - | ≤60×10-4 | ||
| RC | ΩF | ≥1×104 | ||
Certificate
Our quality management system aaare certified by ISO9001 and our products have CQC,TUV,UL,VDE and other performance certicifications,compliance with EU RoHS directive, with SGS report.

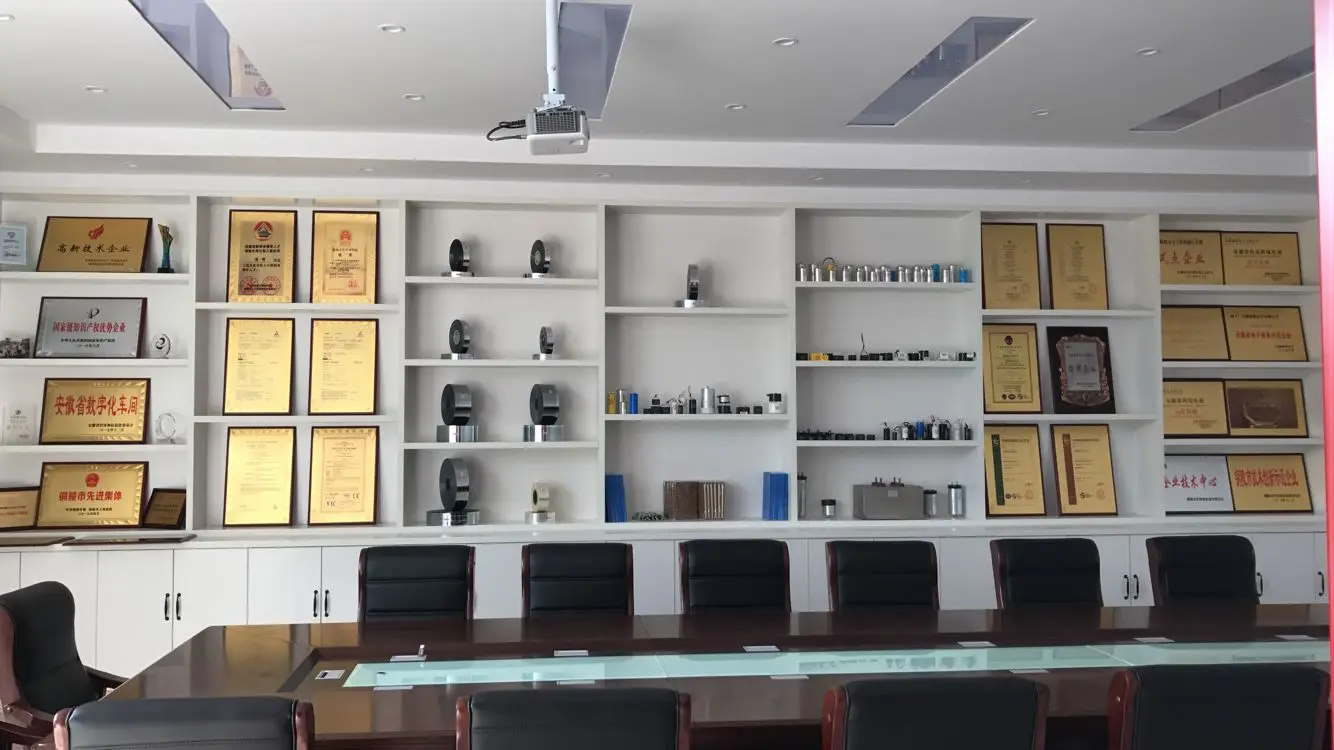

Honor
Equipment
Our company onw has 3 high-vacuum coating machines,14 high-speed slitting machines,7 winding machines,fou-gun meatal spraying machine,Capacitor vacuum impregnation system and three phase withstand voltage machine and other automatic equipment.

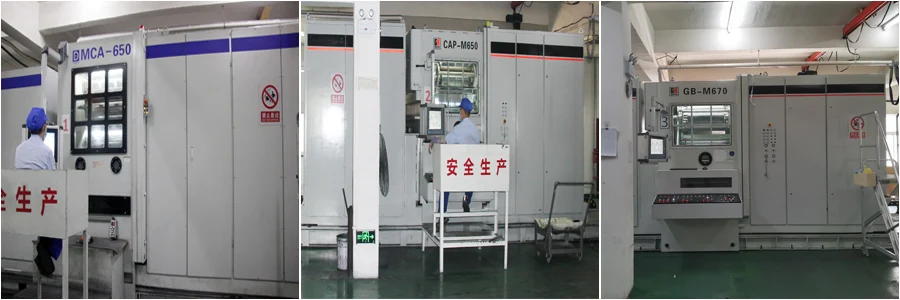

Vacuum Coating Machine

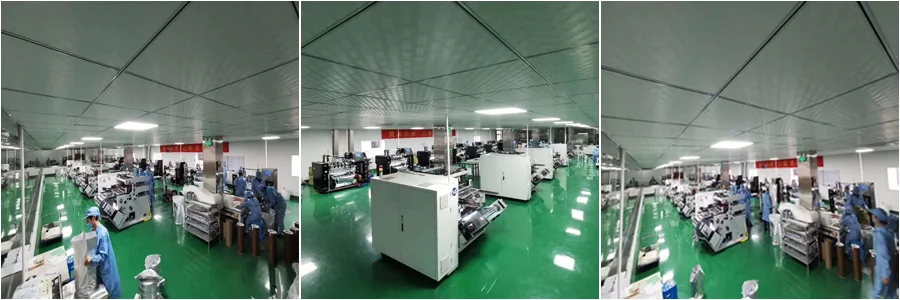

Slitting Machine

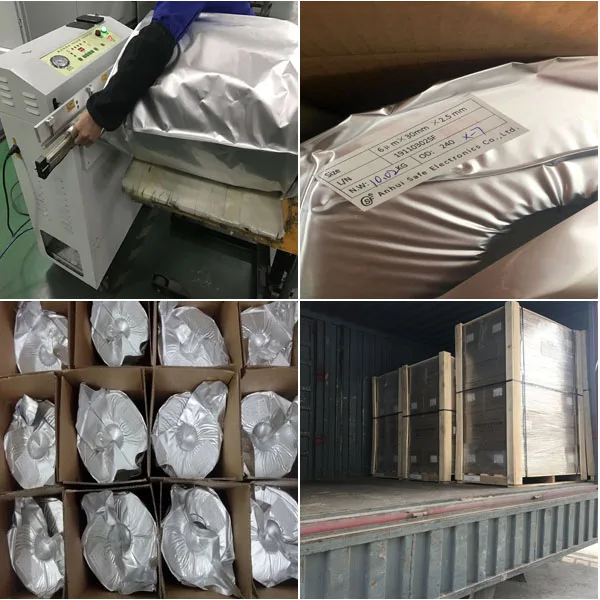

Package&Delivery
Package:
·Roll films are packed in vacuum plastic bag and heatsealed with desiccants.
·Bags are marked with lables of types.
·The bags are packed in carton cases.
·The cartons are wrapped in wooden cases or reinforced carton.
Delivery
Package Detail:Pallets,vacuum aluminum package
Delivery Detail:After payment 7-10 days
