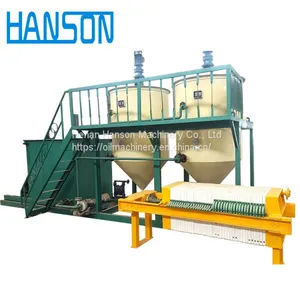

Fully automatic sunflower oil press machine with oil filter and oil refinery production line

Section 1: Pre-pressing Workshop Production Line

Flow chart:

1>Remove impurity process: Remove the impurities with our high efficiency vibration cleaning sieve and suction gravity stoner. the process need to be equipped with winnowing conveyor to collect the impurities.

2>Husking process: Use our sunflower seed special sheller to husk the seed and seed-sheell separator to separate the shell and kernel. The kernel will go to the next step and the shell will be transferred into the shell storage.

3>Flaking process: Use our flaking machine to flake the sunflower seed kernel.

4> Steam fry/cooking process:Turn the sunflower seeds flake into ripe after humidification, heating and steam frying.

5>Pressing process: Using oil pressing machine to press the fried sunflower seed flake.

Section 2: Oil Cake Solvent Extract Production Line:

1, the extracting device adopts stainless steel fixed grid board, frequency conversion speed regulation, extracting machine storage tank self- automatic control, high extracting efficiency, low energy consumption, extracting condenser, steam degassing condenser, stripping condenser, evaporative condenser, the final condenser are aluminum alloy tube-type condenser, the condensation effect is fast.

2, wet meal dissolution using DTC evapo-separated machine, dissolution, drying in one machine. The production of finished meal powder is fine, good color, evapo-separated machine material levels are self-control.

3, the use of film evaporation process, evaporation temperature is low, crude oil quality is good, energy saving, evapo-separated machine second times steam waste heat utilize as the first evaporator heat source.

Section 3: Oil Refining Production Line:

Some kinds of oil like sunflower, maize germ or corn oil have to waxes inside, if these impurities are not removed, the oil will freeze easily under low temperature, thus effecting oil quality and appearance. so this process is necessary in extremely cold areas.

Physical Refining
In Physical Refining, Vegetable Oil is subject to distillation to remove free fatty acids. The alkali treatment is completely avoided. This reduces the amount of waste water and eliminates production of soap. This process is becoming more popular.

Chemical Refining
In Chemical Refining, Vegetable Oil is treated with caustic lye for separation of free fatty acids from oil. This is a conventional process that can be applied to all oils. A byproduct of alkali refining is soap-stock, which is used for manufacture of low quality washing soap. Alternately, the soap-stock can be treated with acid to recover fatty acids. The waste-water from refinery requires extensive treatment. This can be avoided by alternate Physical Refining process.

Business covers:

Vegetable Oil Series:

Oil pretreatment Equipment, Specifications: 1-1000T/D

Plant Oil leaching equipment, Specifications: 10-1000T/D

Continuous, Semi-continuous physical refining oil complete equipment, Specifications: 5-600T/D

Small Advanced Cooking Oil batch refining unit, Specifications: 1-20T/D.

Animal Grease Series:

New type of animal oil negative pressure refining equipment, specifications: 2-200T/D

Meat powder, bone meal continuous automatic production line, specifications: 2-200T/D

Animal oil refining equipment production line, Specifications: 1-500T/D
