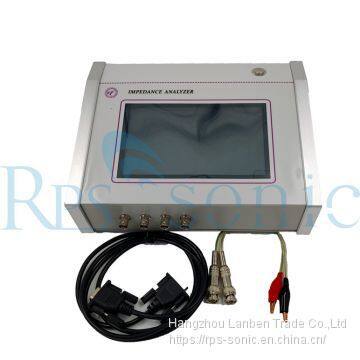

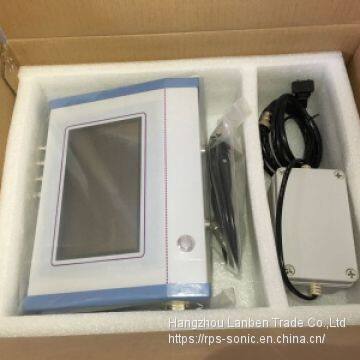

Precision Impedance Analyzer Ultrasonic Analyzer Portable 50～60hz

Introduction：

Impedance analyzers are a class of instruments which measure complex electrical impedance as a function of frequency. This involves the phase sensitive measurement of current and voltage applied to a device under test while the measurement frequency is varied over the course of the measurement. Key specifications of an impedance analyzer are the frequency range, impedance range, absolute impedance accuracy and phase angle accuracy. Further specifications include the ability to apply voltage bias and current bias while measuring, and the measurement speed

An ultrasonic transducer/array is a crucial component of an ultrasonic scanner such as those widely used in clinical diagnosis . There has been a growing interest in transducers in the frequency range higher than 100 MHz for applications in single cell analysis, acoustic trapping, and studying mechanotransduction with improved lateral resolution . In these applications, a highly focused acoustic beam is required . When making highly focused ultrasonic transducers, those having a large aperture are much easier to press-focus. A transducer with a large aperture also generates a stronger pressure field under the same input parameters, such as voltage and pulse duration. Therefore, to generate the same acoustic pressure field, a transducer with a large aperture is safer and more effective than a transducer with a small aperture because lower input voltage and shorter pulse duration are needed.

Performance：

Application:

All kinds of ultrasonic device measuring impedance characteristics including: piezoelectric ceramics, transducer, ultrasonic cleaning machines, ultrasonic plastic welding machine, acoustic, magnetostrictive materials, ultrasonic grinding mill, ultrasonic atomizer, ultrasonic teeth cleaning and reversing radar, ultrasonic ranging, ultrasonic emulsification, ultrasonic cleaning, ultrasonic motor, and so on:

Auto parts manufacturers (maintenance, horn manufacturing and receipt inspection)

Ultrasonic welder manufacturers (tuning process, quality control and horn development)

Ultrasonic cleaner manufacturers (tuning process and quality control)

Medical equipment manufacturers (quality control and receipt inspection)

Healthcare industry (maintenance, horn manufacturing and receipt inspection)

Mattress manufacturers (maintenance and receipt inspection)

Wire dies manufacturers (maintenance and horn manufacturing)

White line manufacturers (receipt inspection)

Footwear manufacturers (maintenance and horn manufacturing)

Underwear manufacturers (maintenance and horn manufacturing)

Fish finder manufacturers (quality control and underwater transducers development)

Eyeglass lenses manufacturers (maintenance of cleaning systems)

Fishing lures manufacturers (maintenance and horn manufacturing)

Water and energy meters manufacturers (maintenance and horn manufacturing)

Mining industry (maintenance and ultrasonic cleaning boxes refurbishing)

Ultrasonic additive industry (maintenance, horn manufacturing and development)

Research groups (piezoelectric and ultrasonic devices development)

R&D departments (product development)

Sensors manufacturers (maintenance, quality control and receipt inspection)

Service and shipment:

Warranty one year for transducer.

You can contact us for technical inquiry any time.

We supply OEM service for oversea customer, also will keep .Confidentiality for our customers.

We supply customized products service for small quantity also.

Shipment by FED-EX /DHL
