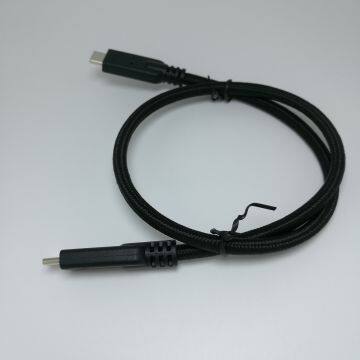

Communication Products C To C Data Lines Usb3.0 Transfer Line

Product Information

1. Added an important data transfer rate. 3.0 is SuperSpeed 5.0Gbps, 2.0 is 1.5Mbps, 12Mbps or 480Mbps

2. Transfer packets in a point-to-point manner to minimize the number of active links

3. Asynchronous notification function, eliminating the need for polling

4. Link-based power management, which is the basic design of the bus structure

5. Backward compatible with USB2.0, compatibility is achieved at both the driver and physical level. Data interface, 3.0 is full-duplex, four-way differential signal independent of USB 2.0 signal, supports simultaneous bidirectional data transmission, 2.0 is half-duplex, dual differential signal, one-way data transmission, need to negotiate the transmission direction of the general route in advance

USB3.1 reference

Interface: USB3.0 TYPE-C

Material: TPE wire + injection molding

Charging current: 5V / 3.0A, 5.1K resistor

Transmission speed: Association standard USB3.0

Line length: 230mm, 400MM, 600MM, 1M, etc., the length can be customized

Packaging: single PS packaging, 50PCS / medium bag, 600PCS / carton. Can be customized according to customer requirements

Box gauge: 46 * 30 * 25 (CM)

Function: fast charging + data transmission 2 in 1

Wire specifications: (32AWG * 1P + DAM) * 4 + 32AWG * 1P + 32AWG * 4C + 20AWG * 1C + D + MY + B

Color: Black-based, large quantity can be customized

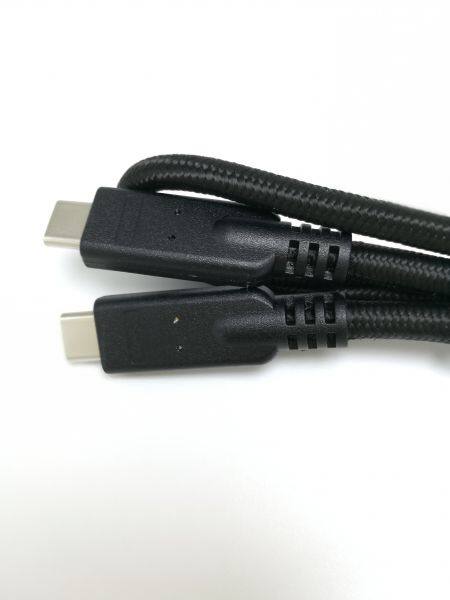

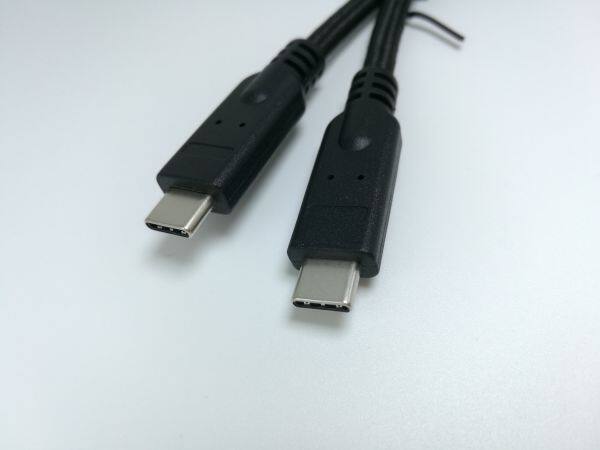

Plug: TYPE-C male with E-Marker chip

Housing: Aluminum alloy

Transmission speed: standard 3.1 transmission speed

Adaptation: Mobile devices supporting TYPE-C interface

Support positive and negative plug, plug and play

Higher power, fast charging, faster and more convenient to drive related equipment
