DG MF Mold Clamps Co., Ltd is a mold clamp manufacturer and mould clamp supplier of the Eye Bolt of the clamping element series.
Please contact us for the Eye Bolt specification and Eye Bolt price.

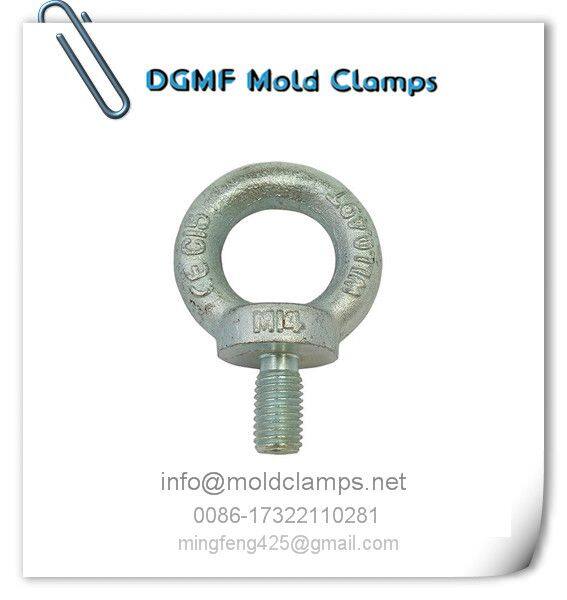

Eye Bolt
| Specification | ID/mm | OD/mm | Weight/g | Tensile Strength/Ton |
| M6 | 20 | 35 | 53 | 0.07 |
| M8 | 20 | 35 | 55 | 0.14 |
| M10 | 25 | 45 | 113 | 0.23 |
| M12 | 28 | 55 | 187 | 0.34 |
| M14 | 33 | 58 | 233 | 0.5 |
| M16 | 35 | 63 | 290 | 0.7 |
| M18 | 38 | 72 | 450 | 1.2 |
| M20 | 38 | 72 | 450 | 1.2 |
| M22 | 38 | 72 | 460 | 1.2 |
| M24 | 48 | 90 | 900 | 1.8 |
| M27 | 48 | 90 | 930 | 2.5 |
| M30 | 60 | 108 | 1625 | 3.2 |
| M36 | 70 | 126 | 2612 | 4.6 |
| M42 | 78 | 144 | 4072 | 7 |
| M48 | 87 | 165 | 6480 | 8.6 |
| M56 | 95 | 185 | 8800 | 11.5 |
| M64 | 108 | 210 | 13036 | 16 |
| M72 | 140 | 260 | 23200 | 20 |
| M80 | 170 | 300 | 33000 | 28 |
Eye Bolt
