Supply soil exploration drilling rig/drilling machine for soil investigation soil core sampler equipment price
- 65 Set / Sets per Month
- Qingdao
- T/T L/C Cash
- 7 days
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Brand Name: | HuaxiaMaster | Place of Origin: | China | Model Number: | QTZ-3 |
| Type: | Core Drilling Rig | Certification: | ISO9001 | After-sales Service Provided: | Overseas third-party support available |
| Warranty: | 6months | Weight: | 26KG | Dimension(L*W*H): | 700*230*230 mm |
| Power Type: | Gasoline | Usage: | Other, soil sample | Condition: | New |
| Power(W): | 3.8HP |
Product Description

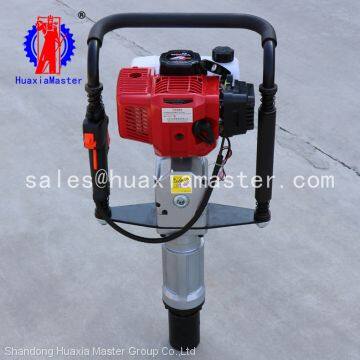

QTZ-3 soil sampling drilling rig
1. Brief introduction of QTZ-3 soil sampling drilling rig
QTZ-3 soil sampling drilling rig is more humanized and more suitable for researchers in scientific research institutions or universities. The power is further strengthened, which can meet the requirement of soil samplingfor 15-20 meters depth.
2. Applications of QTZ-3 soil sampling drilling rig
· Geotechnical engineering investigation; environmental soil survey; agricultural soil survey.
· Ground water survey; coastal geological survey; wetland environment investigation.
· Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.
3. Technical parameters of QTZ-3 soil sampling drilling rig
QTZ-3 soil sampling drilling rig | ||
Power | power | 3.8hp |
lighter way | back flush pull rope | |
oil consumption | 0.6 l/h | |
Impact times | 2460 r/min | |
Impact energy | 35j-70j | |
Core depth | 15m-20m | |
Host weight | 26kg | |
4. Configuration list of QTZ-3 soil sampling drilling rig
Item | Parameter | Unit | Quantity |
Soil sampling drilling rig | QTZ-3
| platform | 1 |
Cylinder impact hand | 52*107 | pc | 1 |
Tapered tap | 32*80 | pc | 19 |
Drill pipe | 32*700 | pc | 19 |
Taper tap | 32*100 | pc | 19 |
Reducing nipple | 32*50 | pc | 1 |
Collar | 50*150 | pc | 1 |
Open tube | 50*600 | pc | 1 |
Double tube boots | 50*100 | pc | 2 |
Reducing nipple | 32*70 | pc | 1 |
Collar | 70*150 | pc | 1 |
Split duct | 70*600 | pc | 1 |
Inner edge pipe boots | 70*100 | pc | 1 |
Outer edge pipe boots | 70*100 | pc | 1 |
Portable sounding hammer | 10kg | pc | 1 |
Sounding the reducing nipple | 32 | pc | 1 |
Double sided hand | 32 | pc | 1 |
Touch probe | 32 | pc | 1 |
