Application
YT28A is a pnuematic drill.It is widely used in metallurgy, coal, railway, transportation, water conservancy construction and national defense stone works, etc.
| Specification | |
| Name | Wholesale hand held portable pneumatic air leg YT28 rock drill machine |
| Cylinder Diameter | 80mm |
| Piston Stroke | 60mm |
| Impact Energy | ≥70J (0.63Mpa) |
| Drilling impact Frequency | ≥37Hz (0.63Mpa) |
| Drilling Speed (Grade 14 rock) | ≥470mm/min (0.63Mpa) |
| Air consumption | ≤81.6L/s (0.63Mpa) |
| Inner Diameter of Air Pipe | 25mm |
| Inner Diameter of Water Pipe | 13(10)mm |
| Working Air Pressure | 0.63Mpa |
| Working Water Pressure | 0.2MPa |
| Suitable Drilling Diameter | 34-42mm |
| Suitable Maximum Drilling Depth | 5m |
| Air Consumption Per Meter | 10.2*103L/m |
| Shank Dimension | H22*108mm |
| Working Temperature | -30℃~+50℃ |
| Total Weight | 26Kg |
| Overall Dimension | L670*W240*H210mm |

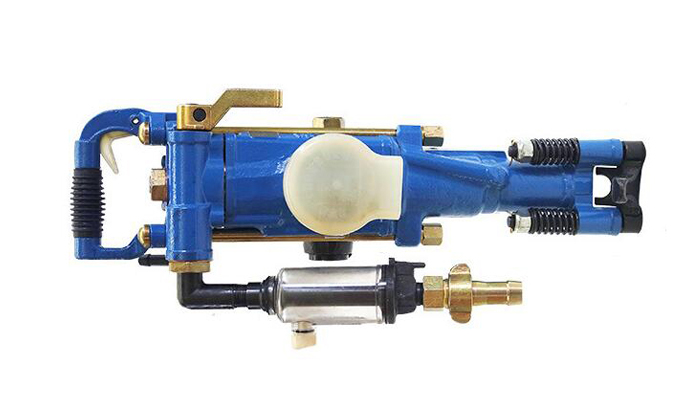

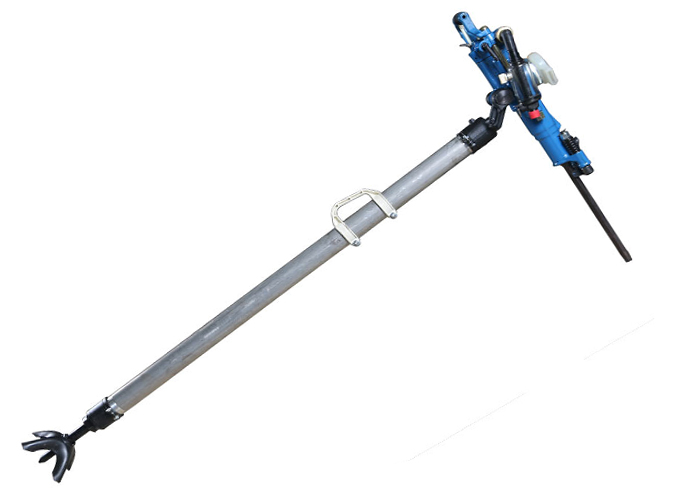

Photos of Wholesale hand held portable pneumatic air leg YT28 rock drill machine
Features of Wholesale hand held portable pneumatic air leg YT28 rock drill machine
1.Compared with similar products, YT28A rock drill has the characteristics of high impact power, long service life, easy maintenance, less gas consumption.
2.After long-term mining practice, YT28A rock drill has many advantages. Such as drill faster, light weight and low noice.

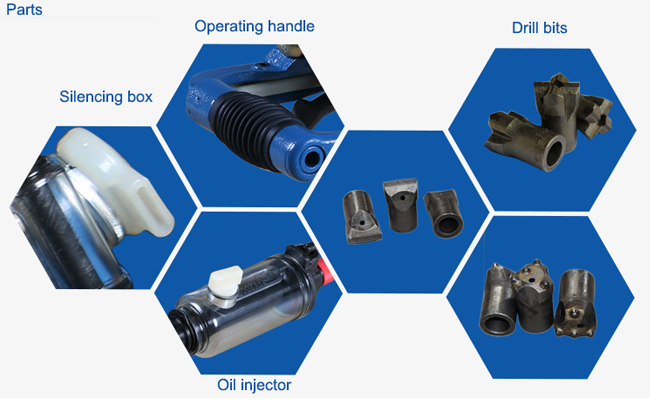

3.YT28A rock drill is equipped with transparent shell type FY200B oil tank to observe oil level, adjust oil quantity and ensure good lubrication.

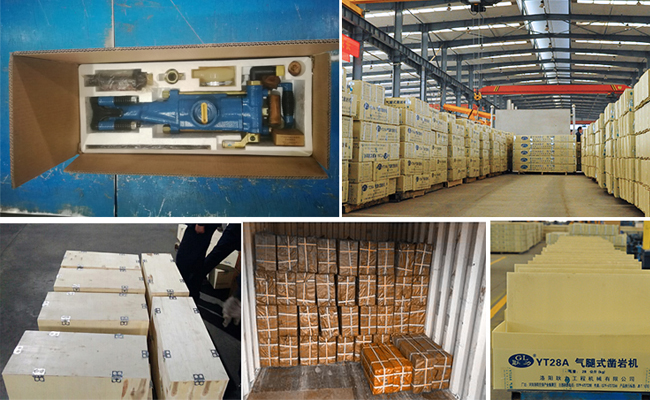

Packing and Delivery
Package: Normally packed in carton at first, then packed with a wooden box.
Delivery time: Normally within 2 weeks.
FAQ
1. Are you factory?
Yes
2. How about your products quality?
There is QC team to control every order. The-third party testing is acceptable.
3. How about MOQ?
Depend on your request.Can be negociated.
4. How about production time?
Normally the machine are in stock.If no stock, it will take about 10 days. If busy, take about 15-25 days
5. How about delivery method?
Shipping as usual.If you have other request, can be negociated.
6.How about your sale service?
80 professional after-sales staff will serve you. If needed, overseas service center is available.
7.How can i place an order?
First method :Place order directly on alibaba if you are familiar with it
Second method : Please tell us specifications ,let's make a contract
8.How can i visit your factory?
Please inform to us when you have a visiting plan,we will provide all traffic details in China
