Auto Coating Oven/burner for Spray Booth/car Baking Machine
US$ 5700 - 6700
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ZM
Place of Origin:
China
Model Number:
ZM-B
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
ZMAA Car SprayboothUS$ 4500 - 8900MOQ: 1 Pair -
Car Spray Booth/baking OvenUS$ 4500 - 8900MOQ: 1 Pair
-
China Zhongming Paint Baking RoomUS$ 5300 - 6300MOQ: 1 Pair
-
China Zhongming B Paint Baking RoomUS$ 5700 - 6300MOQ: 1 Pair
-
China ZhongmingC Paint Baking Room Baking OvenUS$ 6100 - 6700MOQ: 1 Pair
Brand Name
ZM
Place of Origin
China
Model Number
ZM-B
Certification
CE
Voltage
Total power 33kw， 380V/3ph/50hz; Noise < 80db
Power
220v380v
No Load Speed
0.35/s
Internal Size
6900*3900*2600mm
External Size
7000*5300*3200mm
| Spray Booth Catalogue | |||||||||||
| Model | Specifications | PRODUCT SHOW | |||||||||
| ZM-A | Features | Total power 33kw，220/380V; 3ph;50/60hz; Noise |
|
||||||||
| Port：Qingdao | Internal dimensions | 6900*3900*2600mm | |||||||||
| 4500$ | External dimensions | 7000*5300*3200mm | |||||||||
| Entrance door | 3000*2600mm | ||||||||||
| Work door | 2000*700mm | ||||||||||
| Wall panel and roof panel | Adopt high quality EPS board, thickness: 50m m, density: 10kg / M 3, double-sided color steel plate thickness: 0.4mm roof panel, 0.7mm galvanized steel plate, single layer | ||||||||||

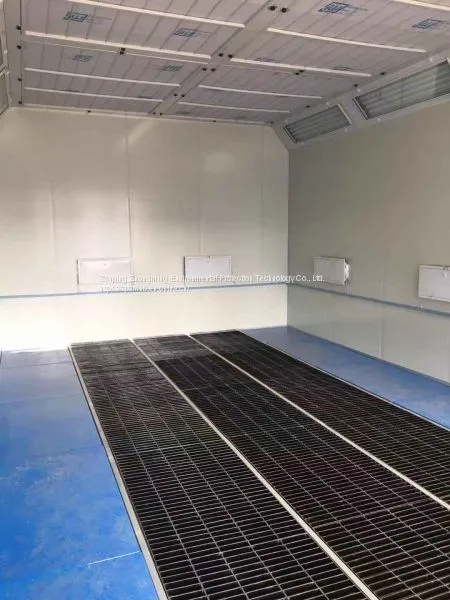

| Foundation system | 1.2mm galvanized steel plate welded fence with 10 channel steel as support; three rows of steel grid; two rows of anti slide plate | ||||||||||

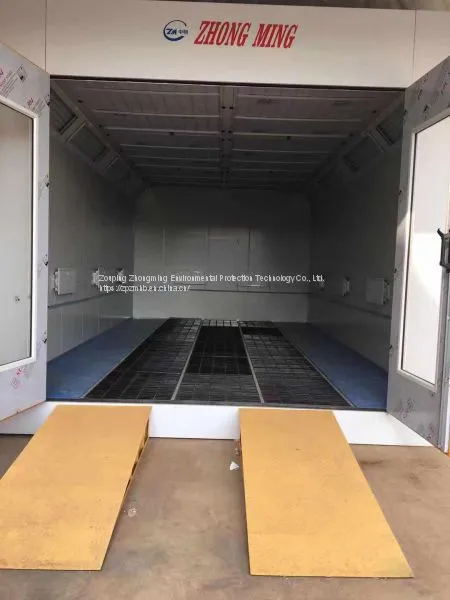

| Uphill ramp | 1800*700*2sets | ||||||||||
| heating system | Using surface infrared heating lamp, 8 groups × 3pcs, 1kW / PC | ||||||||||
| Filtration system | The air inlet adopts primary filter cotton to filter dust larger than 10um, Vf-600g sub high efficiency filter cotton is used at the top of the baking room, |
||||||||||
| Lighting system | Philips Lighting, 45 degree installation inside the roof, 8 sets × 3 pieces, 800 Lux | ||||||||||

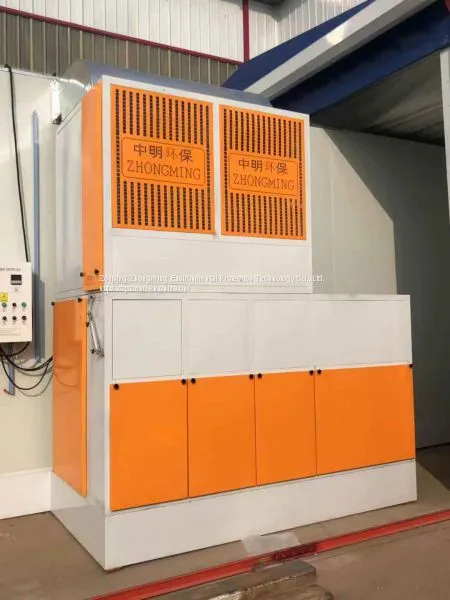

| ventilation system | 2 sets of 3kw YDW fans, air volume 20000 m3 / h, rated wind speed 0.3m/s, air change times 260 times / h |
||||||||||

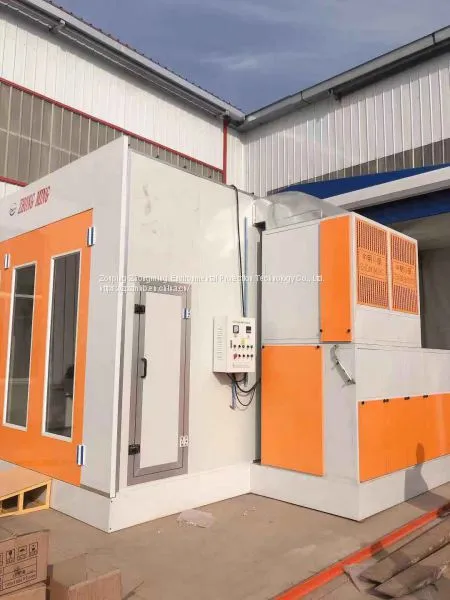

| Control panel | An electric cabinet includes lighting switch, painting switch and temperature rise switch. Temperature setting, time setting, emergency stop switch. All parts are made of domestic famous brands. | ||||||||||
| Other Include | All hardware, fasteners and sealants | ||||||||||
| ZM-B | Features | Total power 33kw，220/380V; 3ph;50/60hz; Noise |
|
||||||||
| Port：Qingdao | Internal dimensions | 6900*3900*2600mm | |||||||||
| 4700$ | External dimensions | 7000*5300*3200mm | |||||||||
| Entrance door | 3000*2600mm | ||||||||||
| Work door | 2000*700mm | ||||||||||
| Wall panel and roof panel | High quality EPS board, 75m m thick, 10kg / M 3 density, double-sided color steel plate, 0.4mm thick roof panel, 0.7mm galvanized steel plate, single layer | ||||||||||
| Foundation system | 1.2mm galvanized steel plate welded fence with 10 channel steel as support; three rows of steel grid; two rows of anti slide plate |
||||||||||
| Uphill ramp | 1800*700*2sets | ||||||||||
| heating system | The surface infrared heating lamp was used, 8 groups × 3pcs, 1kW / PC. | ||||||||||
| Filtration system | The air inlet adopts primary filter cotton to filter dust larger than 10um, Vf-600g sub high efficiency filter cotton is used at the top of the baking room, |
||||||||||
| Lighting system | With Philips lamp and electronic ballast, 45 degrees inside the roof | ||||||||||
| ventilation system | 2 sets of 3kw YDW fans, air volume 20000 m3 / h, rated wind speed 0.3m/s, air change times 260 times / h |
||||||||||
| Control panel | An electric cabinet includes lighting switch, painting switch and temperature rise switch. Temperature setting, time setting, emergency stop switch. All parts are made of domestic famous brands. | ||||||||||
| Other Include | All sets of hardware, fasteners and sealants | ||||||||||
| ZM-C | Features | Total power 33kw， 220v/380V,50hz/60hz.Noise |
|
||||||||
| Port：Qingdao | Internal Size |
6900*3900*2600mm | |||||||||
| 5000$ | Outer Size |
7000*5300*3200mm | |||||||||
| Entrance Door | 3000*2600mm | ||||||||||
| Operatior’s Door |
2000*700mm | ||||||||||
| Wall panel and roof panel | Adopt high-quality rock wool board, thickness: 50m m, density: 120kg / M 3, iron sheet thickness: 0.4mm roof panel, 0.7mm galvanized steel plate, single layer. | ||||||||||
| Foundation system | 1.2mm galvanized steel plate welded fence with 10 channel steel as support; three rows of steel grid; two rows of anti slide plate | ||||||||||
| Uphill ramp | 2000*900*3sets | ||||||||||
| Heating system | Using surface infrared heating lamp, 8 groups × 3pcs, 1kW / PC | ||||||||||
| Filtration System | The air inlet adopts primary filter cotton to filter dust larger than 10um, Vf-600g sub high efficiency filter cotton is used at the top of the baking room, |
||||||||||
| Light System | Philips Lighting, 45 degree installation inside the roof, 8 sets × 3 pieces, 800 Lux | ||||||||||
| Ventilation System | 2 sets of 4kw YDW fans, air volume 24000 m3 / h, rated wind speed 0.3m/s, air exchange 260 times / h | ||||||||||
| Control Panel | An electric cabinet includes lighting switch, painting switch and temperature rise switch. Temperature setting, time setting, emergency stop switch. All parts are domestic famous brands | ||||||||||
| Other Include | All sets of hardware, fasteners and sealants | ||||||||||
