4-20ma Current Loop Powered Isolator With Distribution Power for Passive Sensor ISO 4-20mA-F

4-20ma Current Loop Powered Isolator With Distribution Power for Passive Sensor ISO 4-20mA-F

Features:

· Supply power to sensor: 16V--21.5VDC.

· 4-20mA signal loop active output.

· High accuracy and linearity (Non-linearity<0.2%).

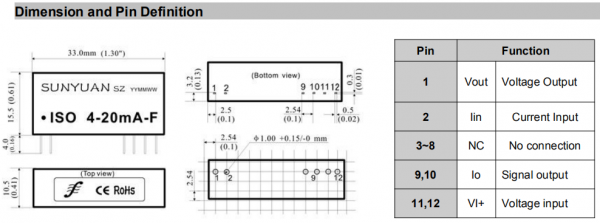

· Low cost, small size, standard SIP 12 pin package.

· 4-20mA signal input/Output, 3000VDC isolation.

· Industrial temperature range (-45—+85℃).

· Frequency response (small signal bandwidth): 100Hz (Io=20mA).

Applications:

· PLC,DCS analog signal data acquisition and isolation

· Industrial process 4-20mA signal isolation

· Ground-loop elimination

· No distortion in long distance signal transmission

· Instrument signal acquisition

· Electric supervision , medical application and isolated safety bar

Introduction:

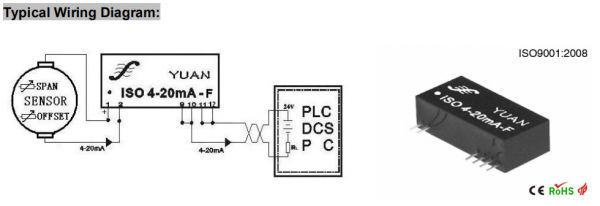

ISO 4-20mA-F 4-20mA Signal Dual Loop Isolation Distributor IC contains an electromagnetic coupled converter and current modulate, and a high efficiency DC-DC circuit and so on. The IC supplies to loop distributor 24V, and meets requirements for 4-20mA loop sensor signal measurement, transmission, isolation and so on.,it can save energy.The output is designed according to loop circuit power supply of 24VDC and resistance connecting in series, it match with popular module input attachment board, PLC and DCS or the other equipment module input attachment. The internal ceramic PCB, printed impedance and new isolation technologies allow the IC for the 3KVAC insulated voltage and meets the industrial level for the extremely poor temperature, humidity and shaking conditions. ISO 4-20mA-F is easy to use.
