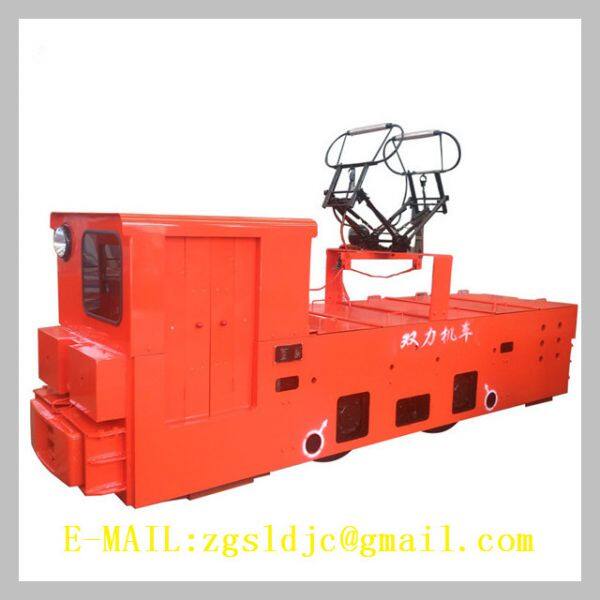

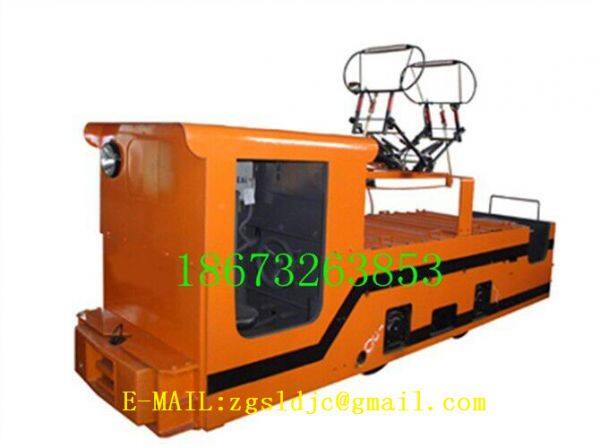

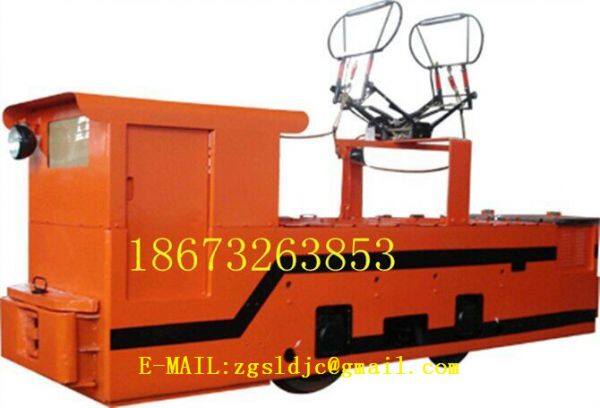

Trolley Locomotive For Mining Power Equipment Cjy7/6gp 7t
- T/T D/P D/A Money Gram Other
You May Like
-
Explosion Proof Line Mining Locomotive Cjy7/9g-250
-
Electric Mine Locomotive Cjy3/6.7.9g Mining Railway
-
High Reflective Electric Trolley Locomotive Cjy18/9gp For Coal Mine Transportation
-
Cjy7/6g(b/p)-250v For Coal Mine Transportation Trolley Locomotive
-
For Coal Mine Power Equipment Cjy14/6gp 14t Line Mining Locomotive
-
Cty8 600mm 700mm 900mm Mining Railway Trolley Electric Locomotive
Product Details
| Model Number | CJY | Brand Name | Shuangli | |
| Place of Origin | China | Speed (km/h) | 25km/h | |
Product Description
Specifications:
1.Long service life of gear
2.More powerful traction effort
3.Faster running speed
Specification:
| Adhesive Weight | Customized |
| Track Gauge | 600, 762 or 900 mm |
| Traction | 13.05 kN,15.09 kN |
| Max. Traction | 17.2 kN |
| Speed | 11 km/h |
| Voltage | 550 V,250 V |
| Power | 24kW*2 , 21kW*2 |
| Size(L*W*H) | 4470 mm |
| 1054, 1216 or 1354mm | |
| 1550mm | |
| Pantograph | 1800~2200mm |
| Wheelbase | 1100mm |
| Wheel Diameter | Φ680 mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
Description:
Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
