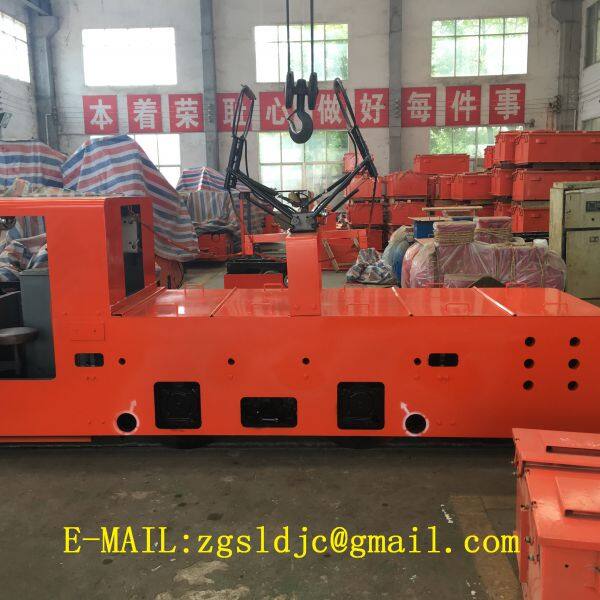

Cjy 1.5t Zl20/9g Overheadoverhead Line Electric Mining Locomotive Mining Equipment
- T/T D/P D/A Money Gram Other
You May Like
-
For Mining Power Equipment Mine Aerial Cable Locomotive Cjy3/6.7.9g
-
For Coal Mine Transportation Cjy7/6g(b/p)-250v Overheadoverhead Line Electric Mining Locomotive
-
Electric Locomotive Mining Equipment Cjy7/6gp 7t
-
Mining Railway Cjy7/6g(b/p)-250v High Reflective Electric Trolley Locomotive
-
Cjy 1.5t Zl20/9g Electric Locomotive Underground Trolley Overhead Line
-
Railway Locomotive Cjy18/9gp For Underground Coal
Product Details
| Model Number | CJY | Brand Name | Shuangli | |
| Place of Origin | China | Speed (km/h) | 25km/h | |
Product Description
Description:
Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
The products are suitable for transportation traction on the narrow rail for the field of coal, metallurgical industry, mining, forest, railway, road tunnel construction and etc.
Locomotive can be used elevation within 2000m, metal mine or non-hazardous area.
Specification:
| Adhesive Weight | Customized |
| Track Gauge | 600, 762 or 900 mm |
| Traction | 13.05 kN,15.09 kN |
| Max. Traction | 17.2 kN |
| Speed | 11 km/h |
| Voltage | 550 V,250 V |
| Power | 24kW*2 , 21kW*2 |
| Size(L*W*H) | 4470 mm |
| 1054, 1216 or 1354mm | |
| 1550mm | |
| Pantograph | 1800~2200mm |
| Wheelbase | 1100mm |
| Wheel Diameter | Φ680 mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
Specifications:
1.Long service life of gear
