GL- 709 High Level Clear Tape Cutter

GL- 709 High Level Clear Tape Cutter photo-1

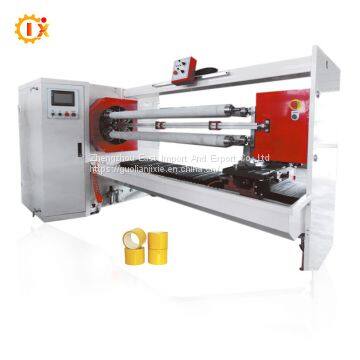

GL- 709 High Level Clear Tape Cutter photo-2

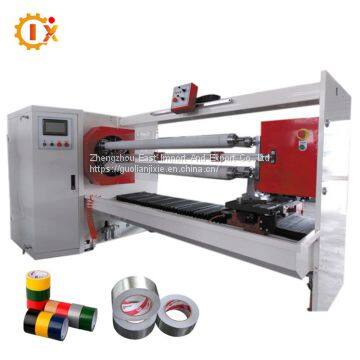

GL- 709 High Level Clear Tape Cutter photo-3
GL- 709 High Level Clear Tape Cutter photo-4

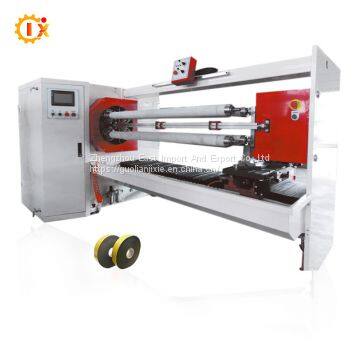

GL- 709 High Level Clear Tape Cutter photo-5
US$ 18900 - 26900 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Guolian
Place of Origin:
China
Model Number:
GL-706
Payment & Shipping
Payment Methods:
Port of Shipment:
delivery port according to customer demond
Delivery Detail:
7 days
Brand Name Guolian
Place of Origin China
Model Number GL-706
After-sales Service Provided No overseas service provided
Condition New
Product Description

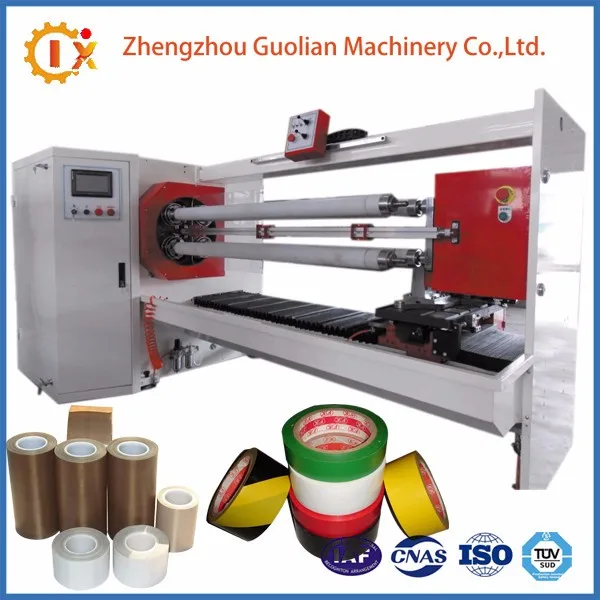

GL- 709 Automatic pvc tape / medical tape / paper tape jumbo roll cutting machine

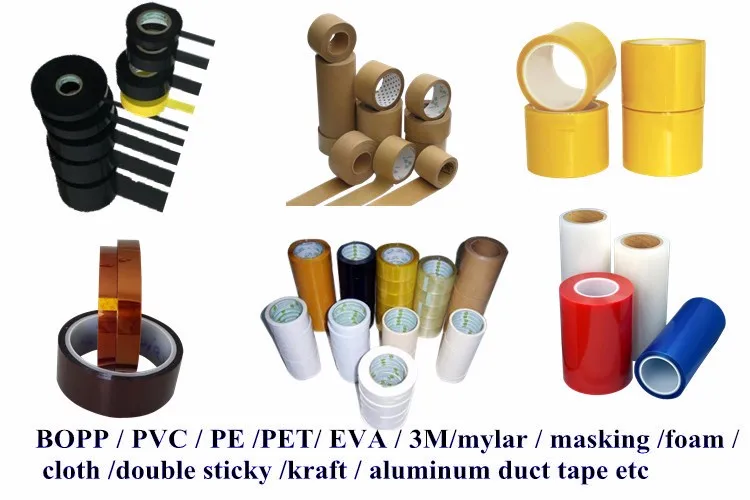

For cutting BOPP / PVC / PE /PET/ EVA / 3M/Mylar / masking /foam / cloth /double sticky /Kraft / aluminum duct tape etc.

Get production video link as below:

/v_show/id_XMTI5ODAyNjY2OA==.html?from=y1.7-1.2

GL- 709 Automatic pvc tape / medical tape / paper tape jumbo roll cutting machine
Max. working width(mm)
1300
Cutting width(mm)
1--1300
Cutting accuracy(mm)
±0.05
Paper tube inner diameter(mm)
25.4---76.2
Max.cutting diameter(mm)
180
Max. cutting speed (cuts./min)
35
Weight
3000kg

GL- 709 Automatic pvc tape / medical tape / paper tape jumbo roll cutting machine raw materials:

GL- 709 Automatic pvc tape / medical tape / paper tape jumbo roll cutting machine features:

1. Automatic control of PLC system with LCD touch screen control panel , 20 modes for size setting each time & auto changing when cutting. Easy function setting, user-friendly interface.
2. Auto liquid silicon water spray cooling system: to avoid the adhesive sticking on the blade and ensure the smooth cutting.

3. AC motors for cutting blade and cutting shaft with inverters speed changing .

4.Positioning system for cutting: servo motor to control more accurate position

5.Sliding system,high precision liner sliding track and ball screw.

6. Auto cutting angel adjustment ±8° can well protect the cutting blade as well as guarantee the cutting edge flatness.

7.Four shafts, Two blades.

Detailed Image

1.PLC control with touch screen

2.Circular blade

3.Seperate motor control blade cutting

4.Accuracy cutting from 1mm

5.Four shafts ,two blades

Factory & Visitors

We are in ZHENGZHOU city, HENAN province, in north China.
Two hours from Guangzhou to our factory by air.
90mins by air from shanghai .
We directly pick you up at our Xinzheng International Airport.
Our factory address:
Xueyuan Road NO.168 ,Mazhai Industrial Park,Erqi District, Zhengzhou City ,Henan Province,China.

FAQ

1.Can your machine make different size tapes?
Sure,in this machine can set 20 kinds width at the same time when operation,and it will change automatically.
2.What is the expected life of Motor and other parts?
The host equipments are entitled to one year warranty & free replacement & life time technical support service.
3.The voltage in our country is different from yours,does the machine can be changed?
Yes.
4.Are your engineers available to oversea service ?
Yes. Our oversea service centers are updating and more complete.
5.Tell me your factory address.And how can i get there?
Xueyuan Road NO.88 ,Mazhai Industrial Park,Er'qi District, Zhengzhou City ,Henan Province,China.
From Guangzhou take 2hours by plane.
XINZHENG International Airport in our city .
Many fast train lines from our ZHENGZHOU CITY too.
6.Which we need prepare for engineer installation?
Jumbo roll,and electricity.
7.If we need a rewinding machine also?
This machine max.cutting diameter is 400mm,if your jumbo roll diameter more than this ,or you want get small diameter tapes,thus you need rewinding machine also.
8.How many days need for learning machine use?
This machine operation very simple,one day is enough.
9.Full set machine size ?need 20f container?and packing?
Machine shall be packed by wooden box,full set total 3CBM,1.2ton,no need 20f container,share container is ok.
10.How about your warranty?
One year ,wearing parts not included.
11.Can we pay by LC?
Yes,T/T or LC both ok.
12.Can you supply raw materials for us?
Yes,we have long term cooperate factory,can buy for you.Also can give you contact,you talk directly.

Related Products
If your jumbo roll diameter is large,need GL-806 rewinding machine,rewinding big diameter jumbo roll to small diameter,then cut on cutting machine get small tapes.
Packing & Delivery

Packaging Type: Case, Film
Packaging Material:Wood , Plastic
Shipping Port : Normally Qingdao,Lianyungang,Shanghai,Guangzhou etc Port
                              Also Can According To Your Demands

Our Service

We are established in 1990, specializing in manufacturing large, medium and small sizes ofadhesive tape making machinery including coating, slitting , rewinding , cutting ,printing ,lamination ,packaging machines , paper core making machine etc.
