ChinaHome > Products > Trolley Locomotive > Cjy7/6gp 7t Electric Mine Locomotive Trolley Powered

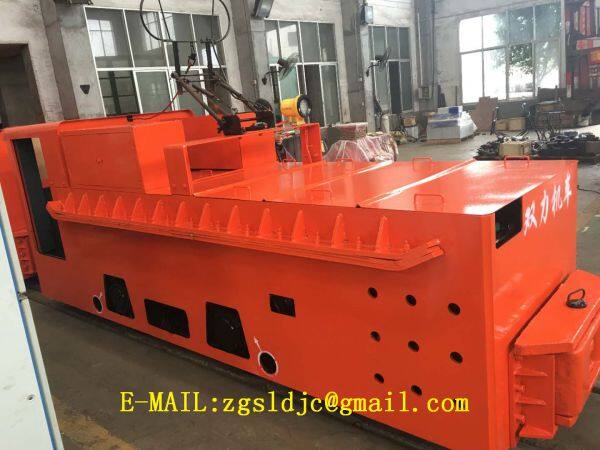

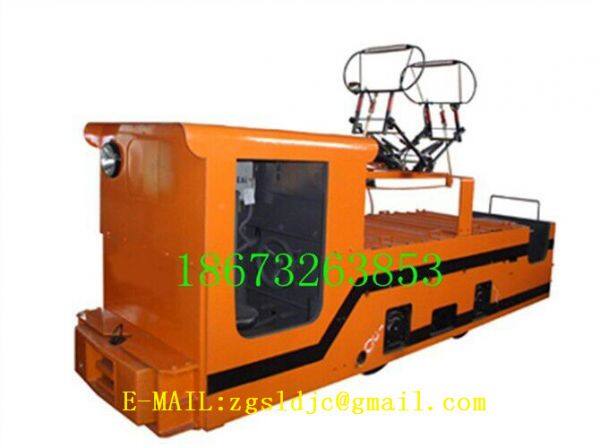

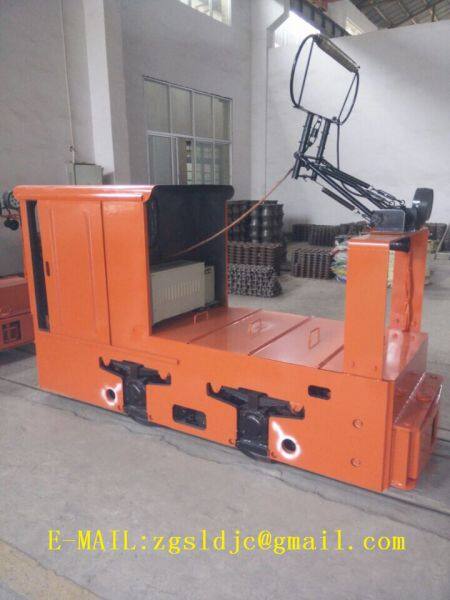

Cjy7/6gp 7t Electric Mine Locomotive Trolley Powered
- T/T D/P D/A Money Gram Other
You May Like
-
For Coal Mining Cjy10/6.7.gp Electric Mine Locomotive
-
Trolley Electric Locomotive Cty8 600mm 700mm 900mm Mining Railway
-
High Reflective Electric Trolley Locomotive Cjy14/6gp 14t Mining Equipment
-
Underground Trolley Overhead Line Cjy 1.5t Zl20/9g Trolley Electric Locomotive
-
For Mining Power Equipment Mine Aerial Cable Locomotive Cjy20/6gp 20 Ton
-
Cjy3/6.7.9g Underground Trolley Overhead Line Trolley Electric Locomotive
Product Details
| Model Number | CJY | Brand Name | Shuangli | |
| Place of Origin | China | Speed (km/h) | 25km/h | |
Product Description
Specification:
| Adhesive Weight | Customized |
| Track Gauge | 600, 762 or 900 mm |
| Traction | 13.05 kN,15.09 kN |
| Max. Traction | 17.2 kN |
| Speed | 11 km/h |
| Voltage | 550 V,250 V |
| Power | 24kW*2 , 21kW*2 |
| Size(L*W*H) | 4470 mm |
| 1054, 1216 or 1354mm | |
| 1550mm | |
| Pantograph | 1800~2200mm |
| Wheelbase | 1100mm |
| Wheel Diameter | Φ680 mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
Specifications:
1.Long service life of gear
2.More powerful traction effort
3.Faster running speed
Description:
Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
