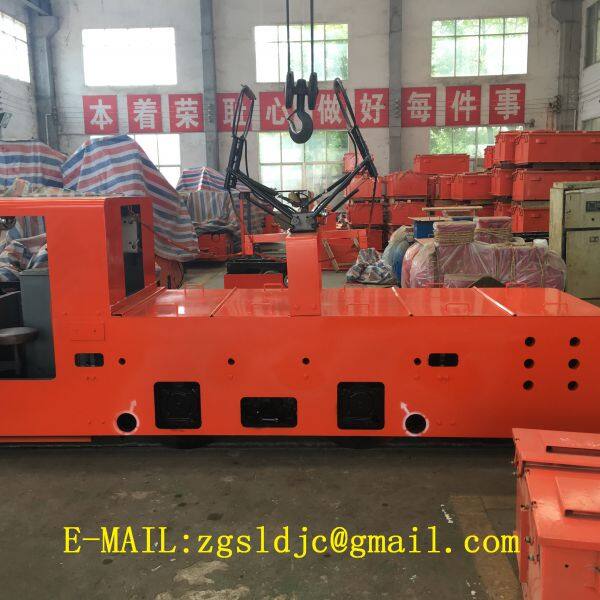

Explosion Proof Cty8 600mm 700mm 900mm High Reflective Electric Trolley Locomotive
- T/T D/P D/A Money Gram Other
You May Like
-
High Reflective Overheadoverhead Line Electric Mining Locomotive Cjy3/6.7.9g
-
High Safety Cjy7/6gp 7t Trolley Electric Locomotive
-
Coal Mine Locomotives High Safety Cjy20/6gp 20 Ton
-
Cjy 1.5t Zl20/9g High Reflective High Reflective Electric Trolley Locomotive
-
Electric Locomotive Cjy7/9g-250 For Coal Mine Transportation
-
Cjy20/6gp 20 Ton High Reflective Mine Aerial Cable Locomotive
Product Details
| Model Number | CJY | Brand Name | Shuangli | |
| Place of Origin | China | Speed (km/h) | 25km/h | |
Product Description
Specifications:
1.Long service life of gear
2.More powerful traction effort
3.Faster running speed
Specification:
| Adhesive Weight | Customized |
| Track Gauge | 600, 762 or 900 mm |
| Traction | 13.05 kN,15.09 kN |
| Max. Traction | 17.2 kN |
| Speed | 11 km/h |
| Voltage | 550 V,250 V |
| Power | 24kW*2 , 21kW*2 |
| Size(L*W*H) | 4470 mm |
| 1054, 1216 or 1354mm | |
| 1550mm | |
| Pantograph | 1800~2200mm |
| Wheelbase | 1100mm |
| Wheel Diameter | Φ680 mm |
| Min. Turning Radius | 7m |
| Electromechanical Controller | Resistance, IGBT or AC Converter |
Brake | Mechanical Brake |
Description:
Locomotive us ing DC electrical line, DC transformed to three phase AC by computer traction transformer, the voltage and frequency can be adjusted, which can drive two AC asynchronous motor, by reduction gear driving axle to tract locomotive.
The core parts of traction transformer using 32 digital DSP chip, fast speed with quick response.
Have good sticking and big traction.
Reliable AC electrical motor, with wide range of speed regulation.
Less cost for maintenance, can avoid ring fire and burnt compared to DC driving.
