Home > Products > Numerical Control Wire Net Weaving Machine > Numerical Control Wire Net Weaving Machine SKZWJ-1300

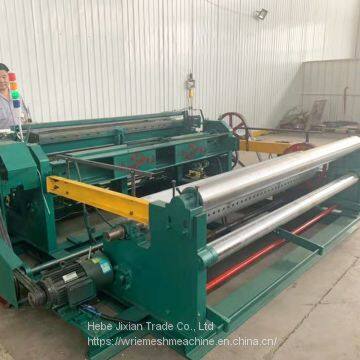

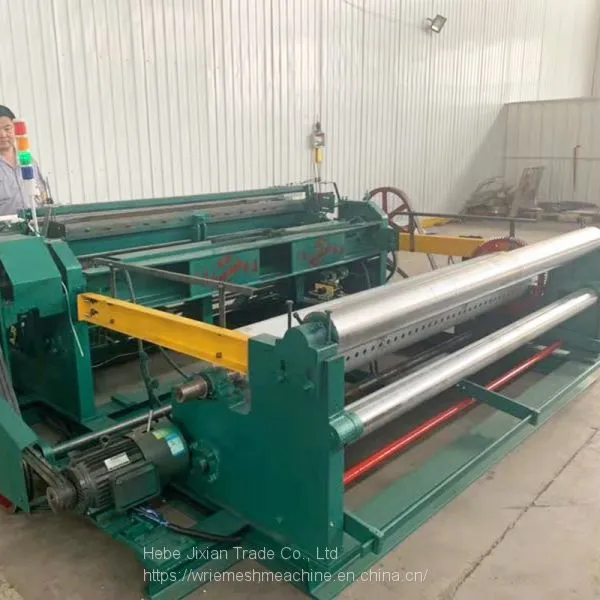

Numerical Control Wire Net Weaving Machine SKZWJ-1300
- 100 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Other
- 15 days
Product Details
Brand Name: | Jixian | Place of Origin: | China | Model Number: | SKZWJ-1300 |
After-sales Service Provided: | Engineers available to service machinery overseas | Condition: | New |
Product Description
Product Details:
Model Number: | SKZWJ-1300 | Power(W): | 2.2KW | |
Dimension(L*W*H): | 2.6m*3.4m*1.4m | Wire Diameter: | 0.025-0.35mm | |
Mesh Size: | 40-400mesh/inch | Mesh Width: | 1300 | |
Machine Type: | Numerical Control | Beating-up frequency: | 120r/min | |
Weight: | 2.7T | Warranty | 1 Years | |
Condition: | New | Color: | Requirement | |
Production Capacity: | 100sets / Month | Packaging Details: | wooden case | |
Place of Origin: | Hebei, China (Mainland) | Port: | Xingang Tianjin | |
After-sales Service Provided: | Engineers Available To Service Oversea |
Function introduction:
PLG programmable control system is adopted in this machine, which controls winding and let off by servo motor, realizes automatic adjustment of mesh tension, improves mesh accuracy, and weaves fabrics with 40-400 mesh standard wire diameter more accurately; makes the speed of the loom reach 120r / min, and improves efficiency by 71%; digital control is realized by mesh adjustment and tension setting, which makes the mesh and tension adjustment simple and accurate; infinite winding is adopted Net mode and digital display of the length of the net can shorten the auxiliary time of weaving and greatly improve the production efficiency.
Main machine technical parameters of 1300 Series Wire Mesh Weaving Machine Manufacturer
Item | Weaving Width (mm) | Wire Diameter (mm) | Mesh Size (mm) | Power (v) | Weaving Speed (T/Min) | Weave Type | Weight (KG) | Outsize (mm) |
1300B | 1300 | 0.025-0.200 | 40-400 | 380V 2.2KW | 75-78 | Plain and Twill | 2700 | 2600x2800x1200 |
1300D | 1300 | 0.10-0.35 | 20-140 | 380V 4KW | 75-80 | Plain and Twill | 2800 | 2569x3535x1849 |
1300HD | 1300 | 0.1-0.6 | 10-40 | 380V 2.2KW | 65-80 | Plain | 3950 | 2569x3535x1849 |
Main machine technical parameters of Numerical Control Wire Net Weaving
TYPE | SKZWJ-1300 | SKZWJ-1600 | SKZWJ-2100 |
Mesh Size | 40-400mesh/inch | 40-400mesh/inch | 40-400mesh/inch |
Wire Diameter | 0.025-0.35mm | 0.025-0.35mm | 0.025-0.35mm |
Bating-up Frequency | 120r/min | 120r/min | 120r/min |
Mesh Width | 1300mm | 1600mm | 2100mm |
Motor Power | 2.2kw | 2.2kw | 2.2kw |
Over Size | 2.6m*3.4m*1.4m | 2.6m*3.7m*1.4m | 2.6m*4.2m*1.4m |
Our Services:
Provide installation and commissioning services abroad, one year warranty, the warranty period there were problems, at any time to repair.
Packaging & Shipping:
The control box is wooden case package, other small parts the bag package, the big part is waterproof film package, if you need others we can do also.
FAQ:
Guarantee: one year, during this year, any broken parts caused by the quality, we can offer free,after this year can offer with the lowest cost.
Install and training:offer video and operation manual, if need engineer oversea service, the customer need to pay the round air tickets, hotel, food and also the salary USD100 per engineer one day.
Delivery time: 20days after advance payment
Payment terms: T/TLCWU/MG
Packing: waterproof material,control box: wooden case
