DNP Series Thermostatic Incubator,laboratory Microbiology, Seed Culture

1. Application

DNP series heating incubator is a constant temp. equipment. Widely used in biological chemistry, chemical pharmacy, medical institution, industrial and mining enterprises, university and colleges, scientific research, etc. can be used for seed, cell, bacteria culture, etc.

   2.Working principle

Heating incubator transfers actual temperature detected from temperature sensor into signal, through microcomputer control to heater towards required temperature.

   3. features

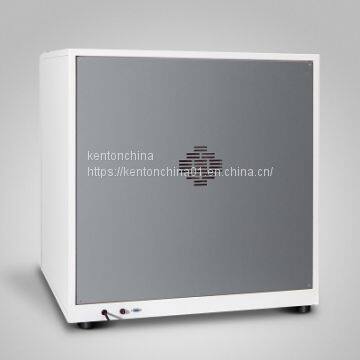

1.The shell is made of steel plate, and outside surface is spray paint treatment.

2. Handle and controller are integrated, humanity design, easy to operate.

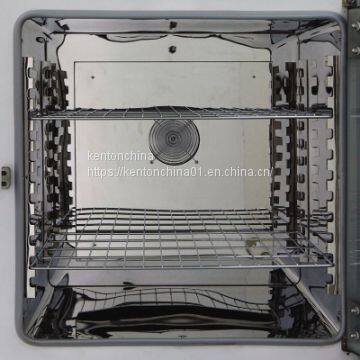

3.The inner chamber is made of stainless steel , heating way is air jacket type. heating wiring are evenly distributed around the inner chamber , and there is fan for air circulation to make sure uniform temperature.

4.Arc-design, easy to clean.

5.Adjustable shelf board.

6.The thermal insulation material is glass fiber. double-doors, magnetic silicone door seal, easy to operate and make sure good sealability .

       7.DNP heating incubator is a equipment with PID control, highly precise and advanced .

8.LCD display, with timing function, and the unit of timing is hour or minu

te.

9.If need timing function, you can stop heating output or keep present temperature after timing is over . beeper beeps after timing is over.

    4.Parameters

1、 Temp control range ：+5～65℃;

2、 Temp. resolution: 0.1℃

3、 Temp fluctuation range ：±0.5℃(+5℃～50℃);

4、 Temp uniform range ：±1.0℃(+5℃～50℃ );

5、 Power voltage ： AC 220V/50Hz;

6、 Timing range: 0~99hour, 0~9999min

7、 Equipment class：class I

8、 Working ambient ：ambient temp 10~40℃   relative humidity70% below
